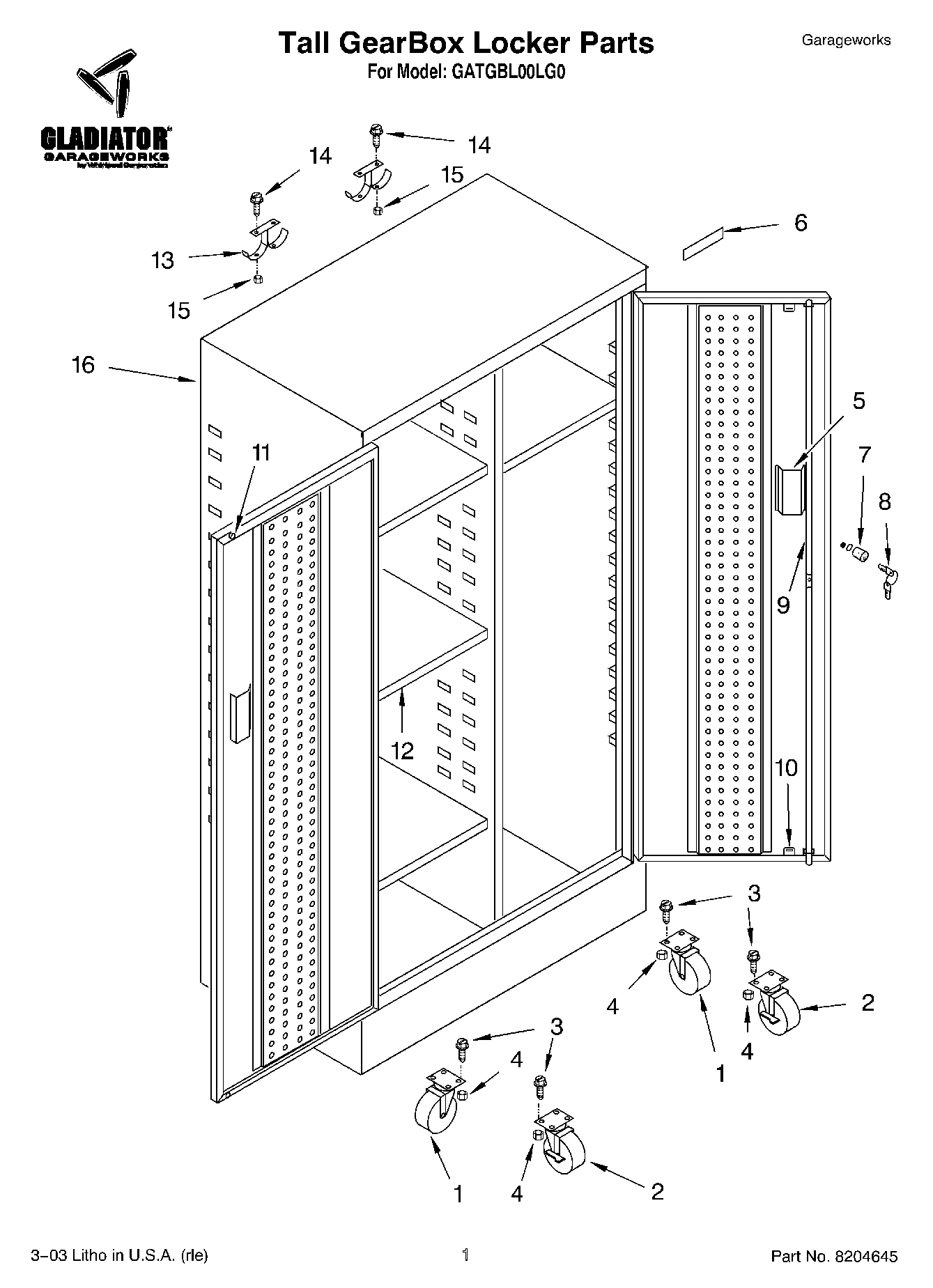

GATGBL00LG0 01 – Tall GearBox Locker Parts – OPTIONAL PARTS (NOT IN

Products

Position	Product
1	WP8204601 Whirlpool Caster Assembly
2	8211250 Whirlpool Caster Assembly
3	WP8204609 Whirlpool Bolt
4	WP8204610 Whirlpool Nut
5	W10914558 Whirlpool Door Handle
6	NAMEPLATE, GLADIATOR
7	Lock, 90 Degree w/2 Keys
8	W11383363 Whirlpool Keys
9	Cam, Flat w/Door Rods (Not Serviced)
10	Spring & Clip (Not Serviced)
11	Grommet, Rubber
12	Shelf, Half
13	Hook, Double
14	WPW10001180 Whirlpool Refrigerator Screw
15	Nut, Keps
16	Miscellanious Parts Bag (Includes 2 Bolts, 2 Nuts, 2 Screws, 2 Washers, 1 Hexkey, 2 Screws, 2 Keps Nuts, 2 Grommets)
