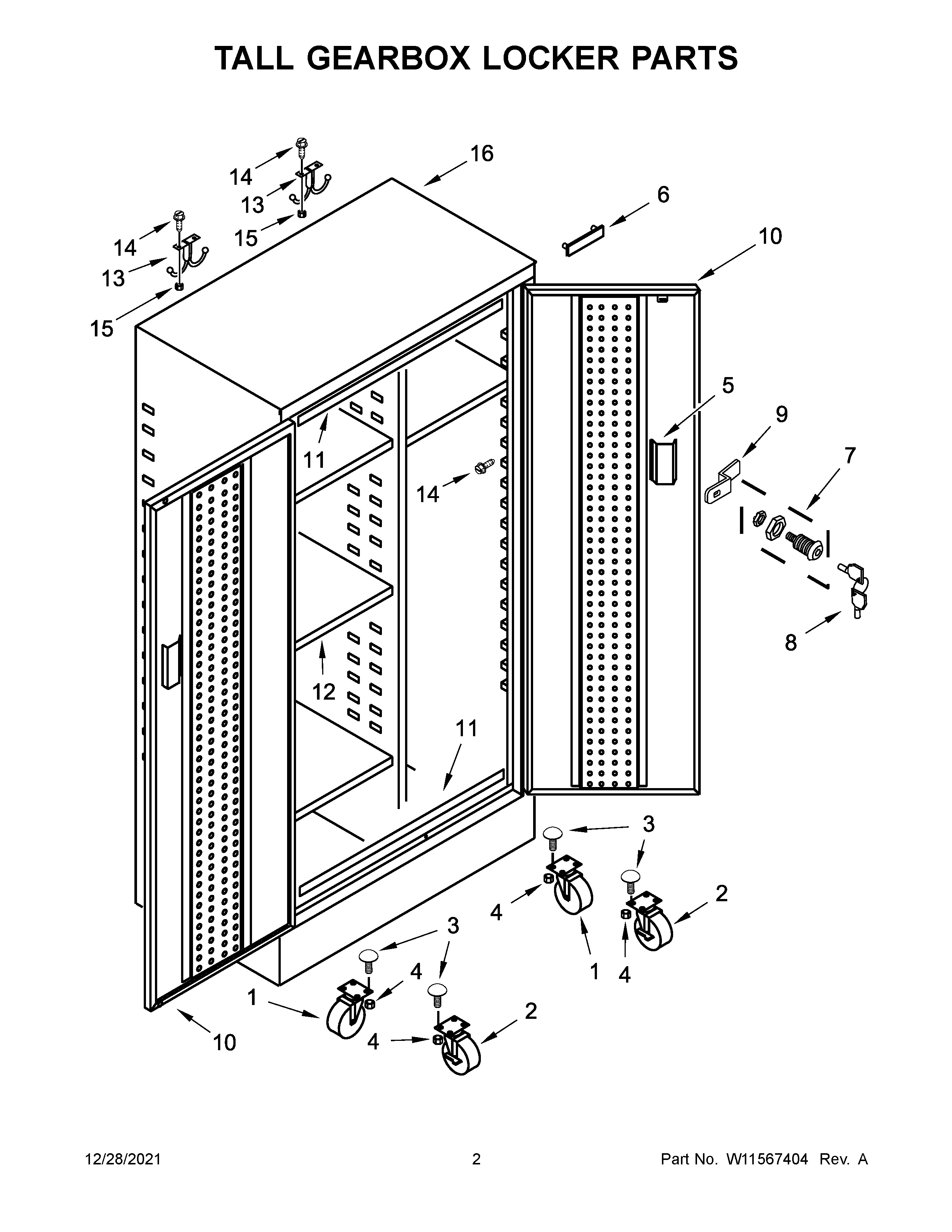

GATL302DKR00 02 – TALL GEARBOX LOCKER PARTS

Products

PositionProduct
1CASTER, SWIVEL 5"
2CASTER, RIGID 5" WITH BRAKE (RIGHT HAND)
2ACASTER, RIGID 5" WITH BRAKE (LEFT HAND)
3W11558420 Whirlpool Bolt
4NUT, NYLON
5W11549424 Whirlpool Door Handle
6NAMEPLATE, GLADIATOR
7LOCK
8W11557661 Whirlpool Keys
9W11538391 Whirlpool Cam Assembly
10ADOOR (INCLUDES HANDLE) (RED TREADPLATE, LEFT HAND)
10DOOR (INCLUDES HANDLE) (RED TREADPLATE, RIGHT HAND)
11MAGNET
12W11538392 Whirlpool Shelf Assembly
13HOOK, DOUBLE
14SCREW
15NUT
16CABINET (NOT A SERVICEABLE PART)
