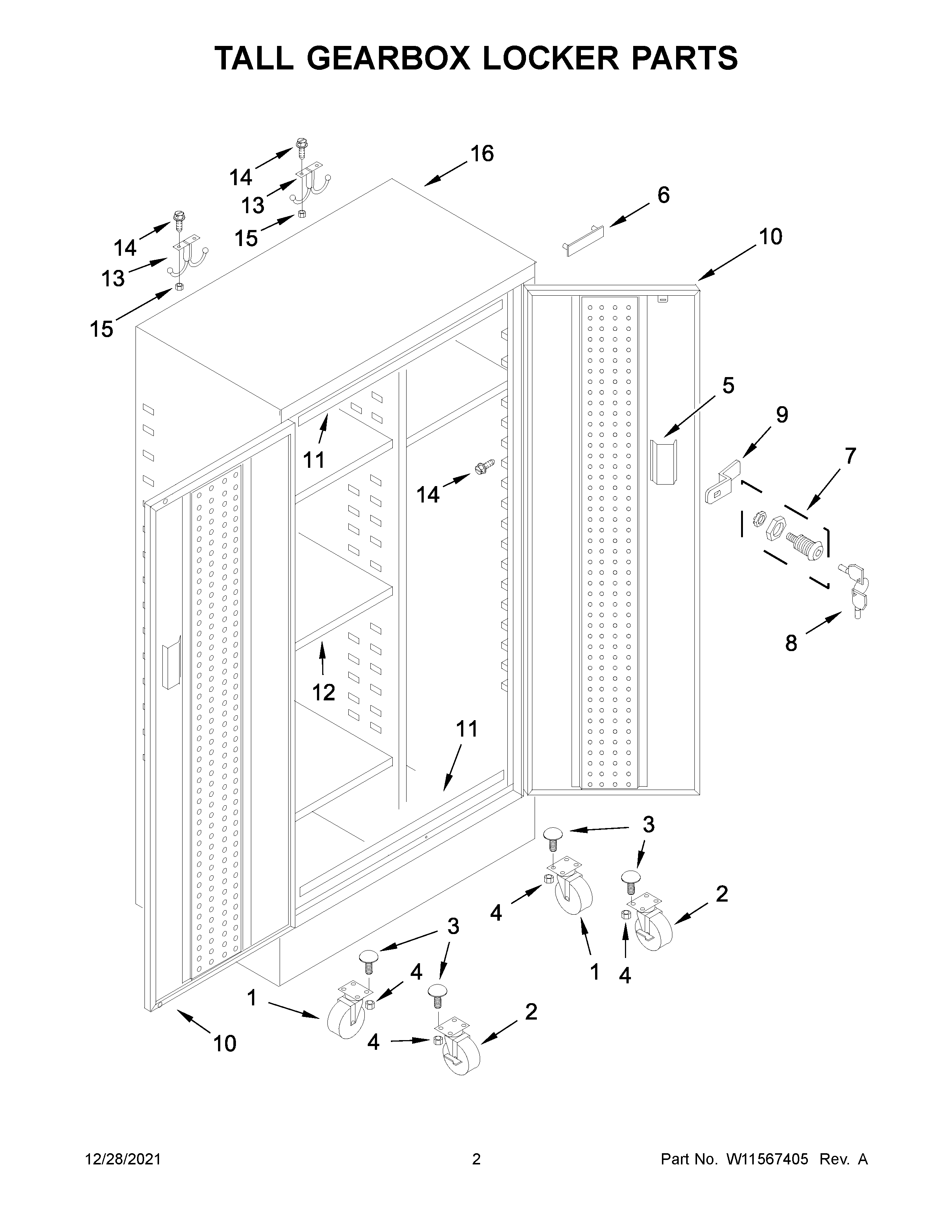

GATL302DKW00 02 – TALL GEARBOX LOCKER PARTS

Products

Position	Product
1	CASTER, SWIVEL 5"
2	CASTER, RIGID 5" WITH BRAKE (RIGHT HAND)
2A	CASTER, RIGID 5" WITH BRAKE (LEFT HAND)
3	W11558420 Whirlpool Bolt
4	NUT, NYLON
5	HANDLE, DOOR
6	NAMEPLATE, GLADIATOR
7	LOCK
8	W11557661 Whirlpool Keys
9	W11538391 Whirlpool Cam Assembly
10	DOOR (INCLUDES HANDLE) (GRAY SLATE, RIGHT HAND)
10A	W11561474 Whirlpool Door
11	MAGNET
12	SHELF, HALF
13	HOOK, DOUBLE
14	SCREW
15	NUT
16	CABINET (NOT A SERVICEABLE PART)
