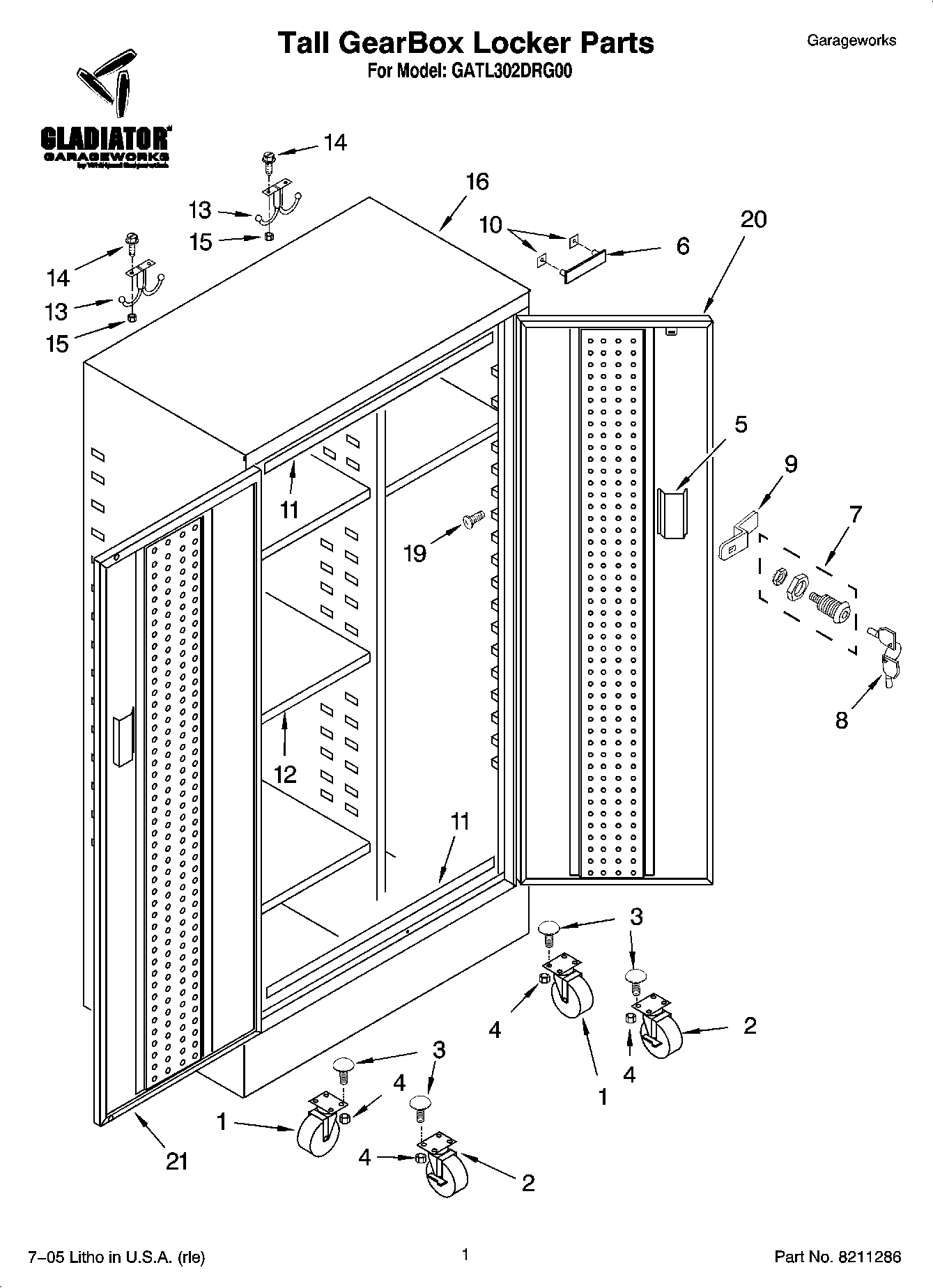

GATL302DRG00 01 – Tall GearBox Locker Parts

GATL302DRG00 01 – Tall GearBox Locker Parts

Written by

in

GATL302DRG00 01 – Tall GearBox Locker Parts

Products

PositionProduct
1WP8204601 Whirlpool Caster Assembly
28211250 Whirlpool Caster Assembly
2W10741533 Whirlpool Caster
3WP8204609 Whirlpool Bolt
4WP8204610 Whirlpool Nut
5W10914558 Whirlpool Door Handle
6Nameplate, Gladiator
7LOCK
8W11383363 Whirlpool Keys
98211273 Whirlpool Cam
10CLIP, NAMEPLATE
11W11241073 Whirlpool Magnet
12WP8211263 Whirlpool Shelf
13Hook, Double
15Nut, Keps
16Cabinet (Not Serviced)
19WPW10001180 Whirlpool Refrigerator Screw
20DOOR (INCLUDES HANDLE) (SILVER TREADPLATE, RIGHT HAND)
21WP8211275 Whirlpool Door Assembly
