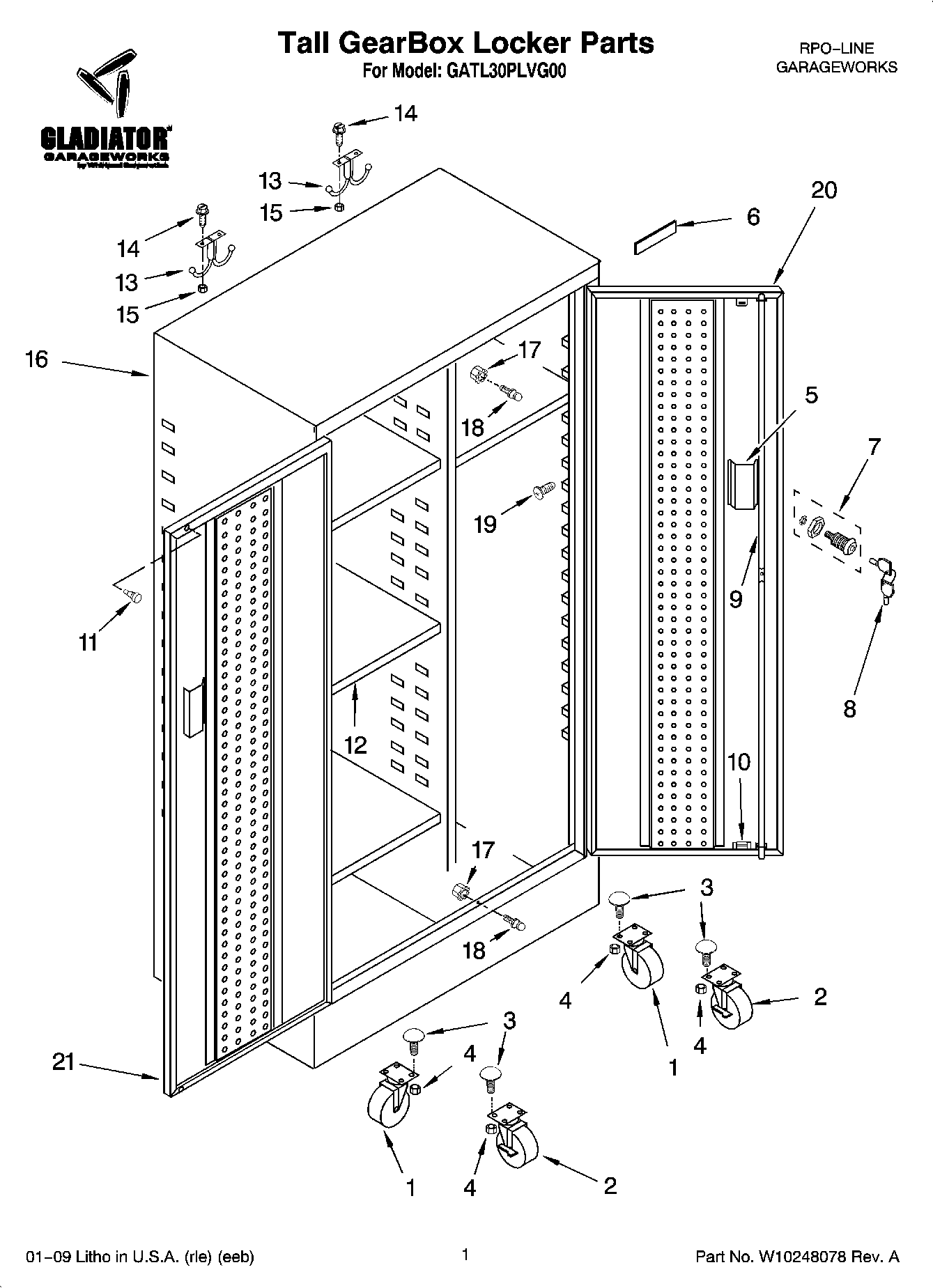

GATL30PLVG00 01 – Tall GearBox Locker Parts

Products

PositionProduct
Optional Parts Not Included
Miscellanious Parts Bag (Includes 2 Bolts, 2 Nuts, 2 Screws, 2 Washers, 1 Hexkey, 2 Screws, 2 Keps Nuts, 2 Grommets)
Miscellaneous
1WP8204601 Whirlpool Caster Assembly
28211250 Whirlpool Caster Assembly
3WP8204609 Whirlpool Bolt
4WP8204610 Whirlpool Nut
5Handle, Plastic
6Nameplate, Gladiator
7Lock, 90 Degree w/2 Keys
8W11383363 Whirlpool Keys
9Cam, Flat w/Door Rods
10W11369680 Whirlpool Catch Stud
11Grommet, Rubber
12Shelf, Half
13Hook, Double
14WPW10001180 Whirlpool Refrigerator Screw
15Nut, Keps
16Cabinet (Includes Item 6)
17Nut, Keps
19Screw
20Door & Handle Assembly (Right) (Includes Items 5 & 10)
21Door & Handle Assembly (Left) (Includes Items 5 & 11)
