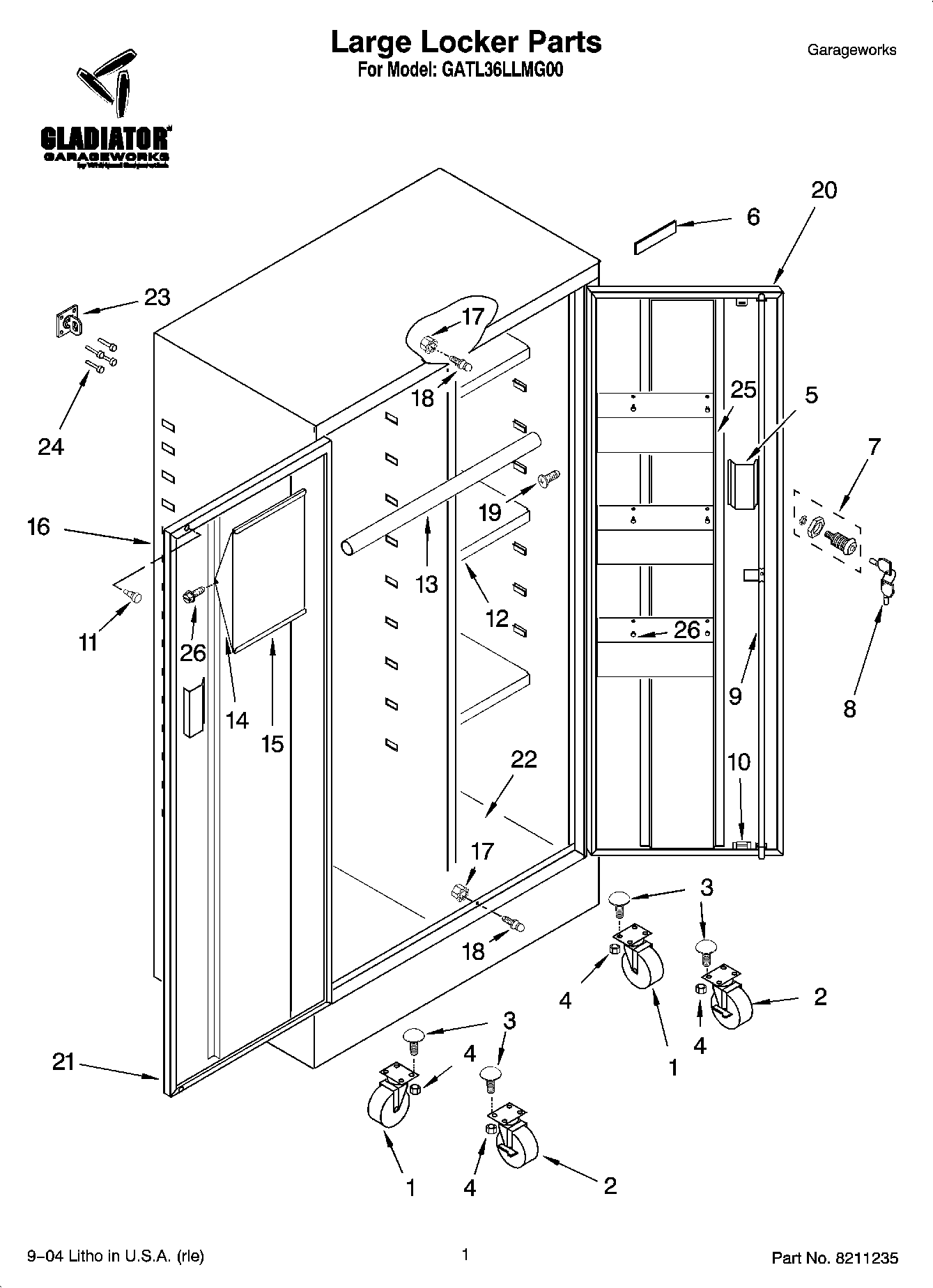

GATL36LLMG00 01 – Large Locker Parts

Products

Position	Product
1	WP8204601 Whirlpool Caster Assembly
2	8211250 Whirlpool Caster Assembly
3	WP8204609 Whirlpool Bolt
4	WP8204610 Whirlpool Nut
5	W10914558 Whirlpool Door Handle
6	NAMEPLATE, GLADIATOR
7	Lock, 90 Degree w/2 Keys
8	W11383363 Whirlpool Keys
9	Cam, Flat w/Door Rods
10	W11369680 Whirlpool Catch Stud
11	Grommet, Rubber
12	Shelf, Half
13	Bar
14	Bracket, Mirror
15	Mirror
16	Cabinet (Includes Item 6)
17	Nut, Keps
19	WPW10001180 Whirlpool Refrigerator Screw
20	Door & Handle Assembly (Right) (Includes Items 5 & 10)
21	Door & Handle Assembly (Left) (Includes Items 5 & 11)
22	Liner, Bottom
23	Hasp, Locking
24	Screw, Deck
25	BIN
26	Miscellanious Parts Bag (Includes 2 Bolts, 2 Nuts, 2 Screws, 2 Washers, 1 Hexkey, 2 Screws, 2 Keps Nuts, 2 Grommets)
26	Bolt
26	Optional Parts Not Included
26	Miscellaneous
