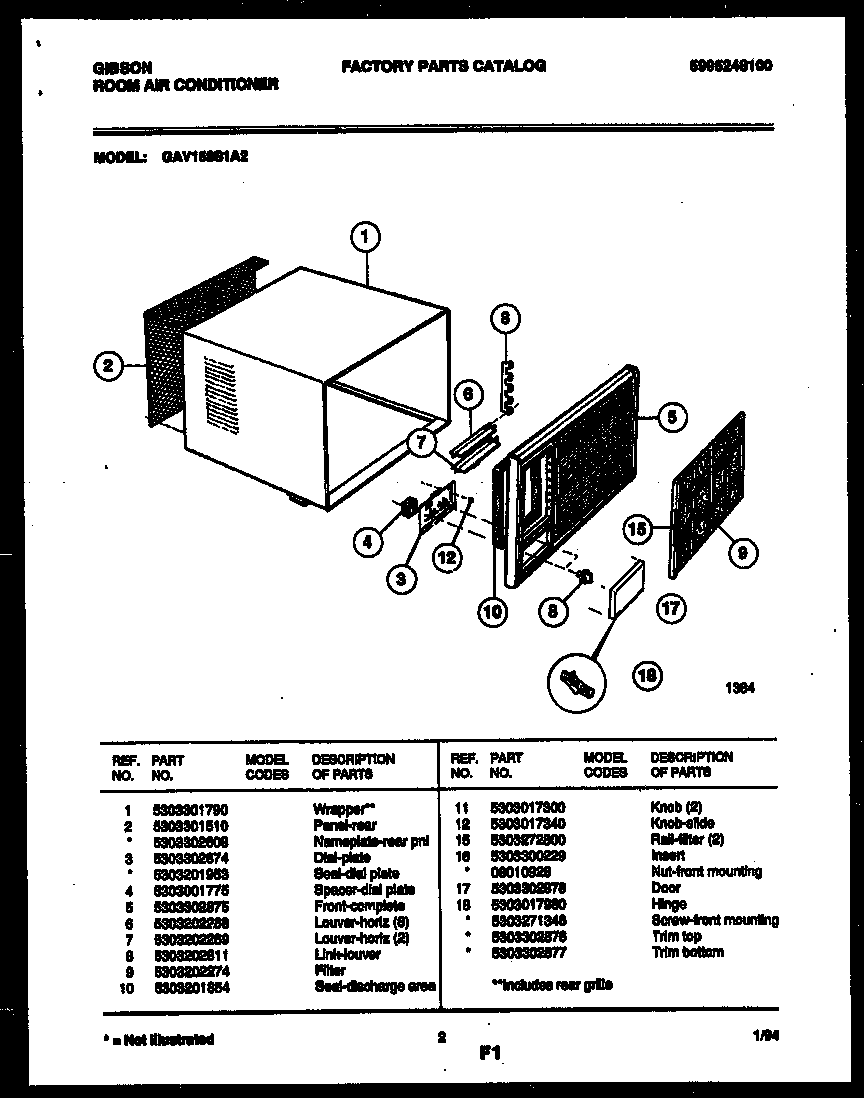

GAV158S1A2 02 – CABINET PARTS

GAV158S1A2 02 – CABINET PARTS

Written by

in

GAV158S1A2 02 – CABINET PARTS

Products

PositionProduct
*68291SCREW
*68291WCI 5303302877
*68291WCI 5303302876
1WCI 5303301790
2AWCI 5303302608
2GRILLE-REAR
3WCI 5303302874
3AWCI 5303201953
4WCI 5303001775
5WCI 5303302875
6LOUVER
7LOUVER W/HANDLE, (2)
8LINK-LOUVERS
9WCI 5303202274
10WCI 5303201854
11WCI 5303017300
12WCI 5303017340
15WCI 5303272800
16WCI 5303300229
16ANUT – FRONT LOCK
17DOOR-FRONT
18HINGE – DOOR
