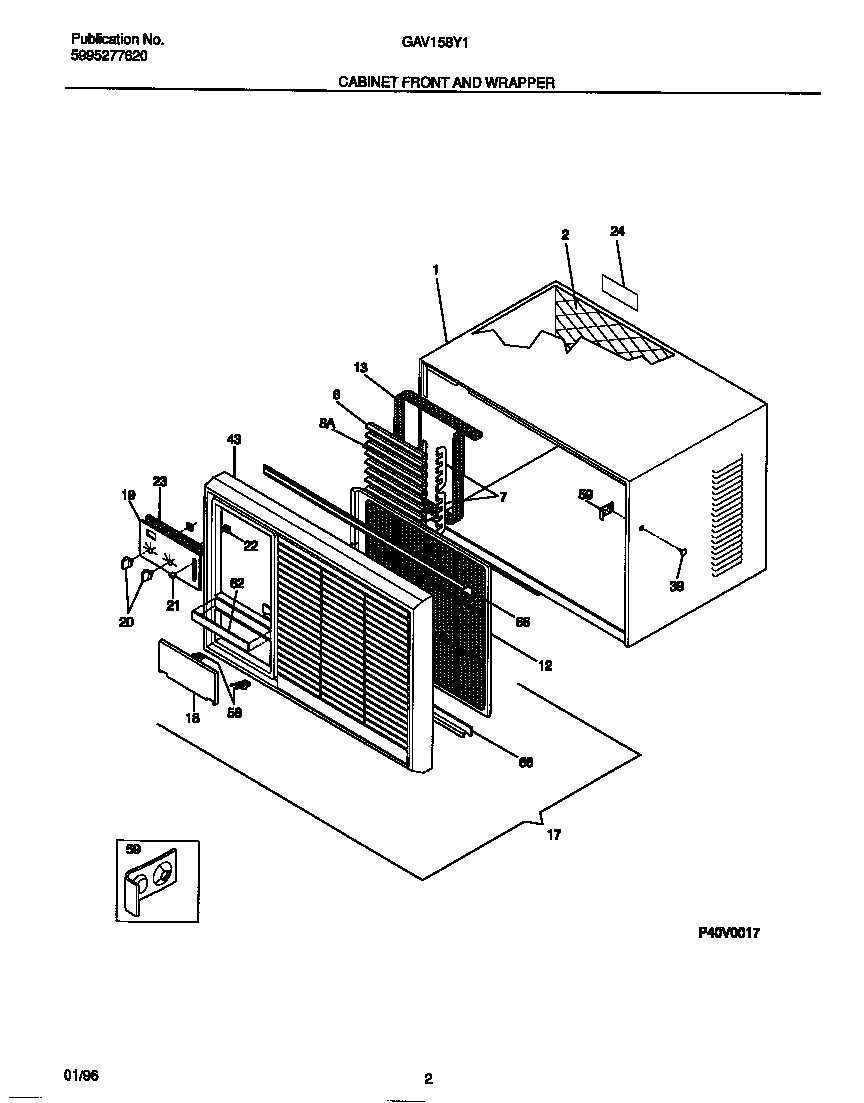

GAV158Y1A1 02 – CABINET FRONT AND WRAPPER

GAV158Y1A1 02 – CABINET FRONT AND WRAPPER

Written by

in

GAV158Y1A1 02 – CABINET FRONT AND WRAPPER

Products

PositionProduct
1WCI 5303303545
2WCI 5303210207
7LINK-LOUVERS
8WCI 5303306430
8WCI 5303306429
12WCI 5303306438
13WCI 5303201854
17WCI 5303317813
18DOOR-FRONT
19WCI 5303302874
20WCI 5303017300
21WCI 5303017340
22WCI 5303001775
23WCI 3201953
39SCREW
43WCI 5303306437
58HINGE – DOOR
59NUT – FRONT LOCK
62WCI 5303307478
66WCI 5303272800
