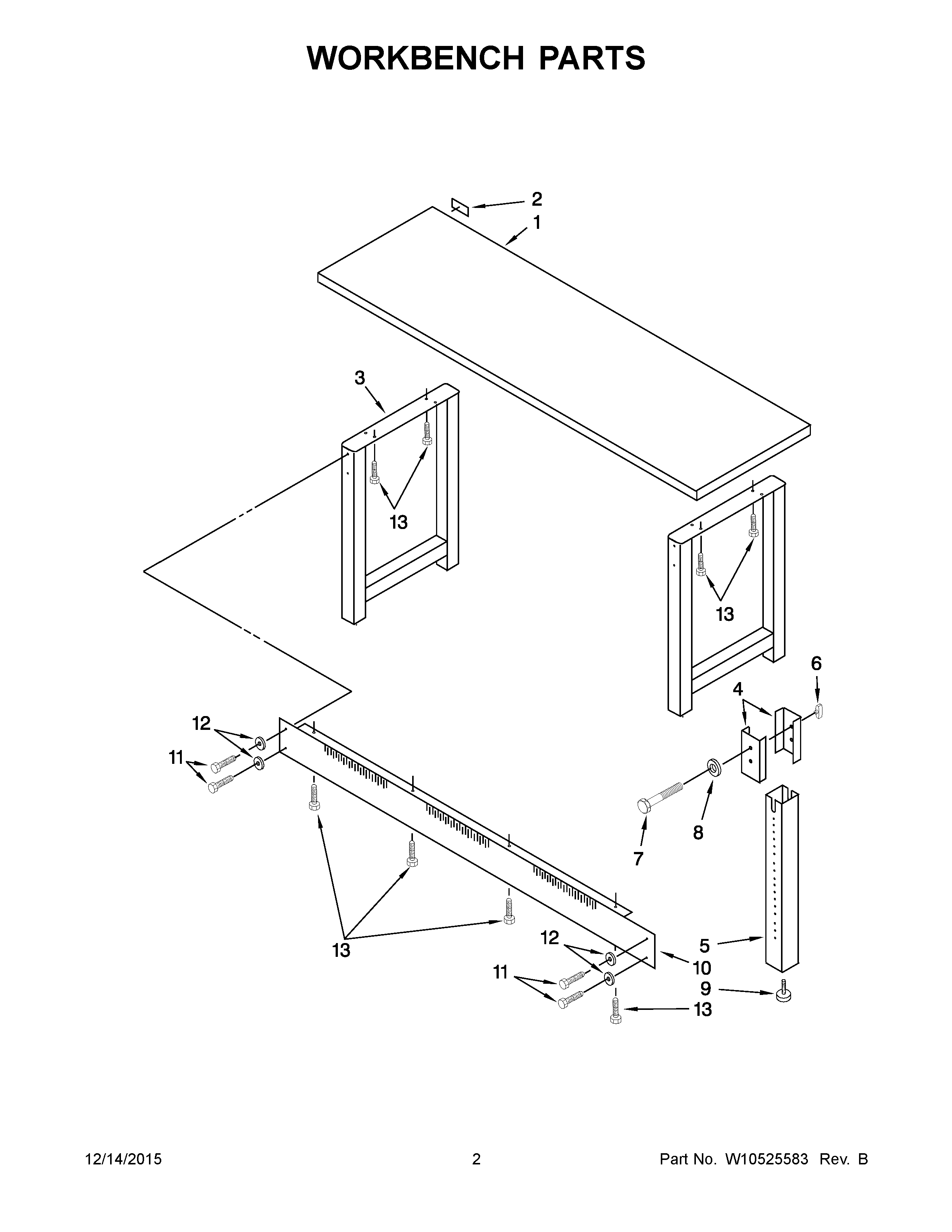

GAWB04BAZG00 02 – WORKBENCH PARTS

Products

PositionProduct
NIINSTALLATION HARDWARE (INCLUDES ALL BUSHINGS, BOLTS, T-HANDLE, AND LEVELING LEGS)
NICABINET (NOT A SERVICEABLE PART)
2NAMEPLATE, GLADIATOR
3W10524967 Whirlpool Leg Assembly
4WPW10524960 Whirlpool Bushing
5W10846115 Whirlpool Leg
6WPW10524958 Whirlpool Nut Assembly
7WPW10524957 Whirlpool Bolt
8WPW10524943 Whirlpool Washer
9W10849208 Whirlpool Leg Leveler
10STRINGER (4 FOOT)
10ASTRINGER (6 FOOT)
10BSTRINGER (8 FOOT)
11WP8204624 Whirlpool Bolt
12WP8211255 Whirlpool Washer
13WP8204626 Whirlpool Bolt
