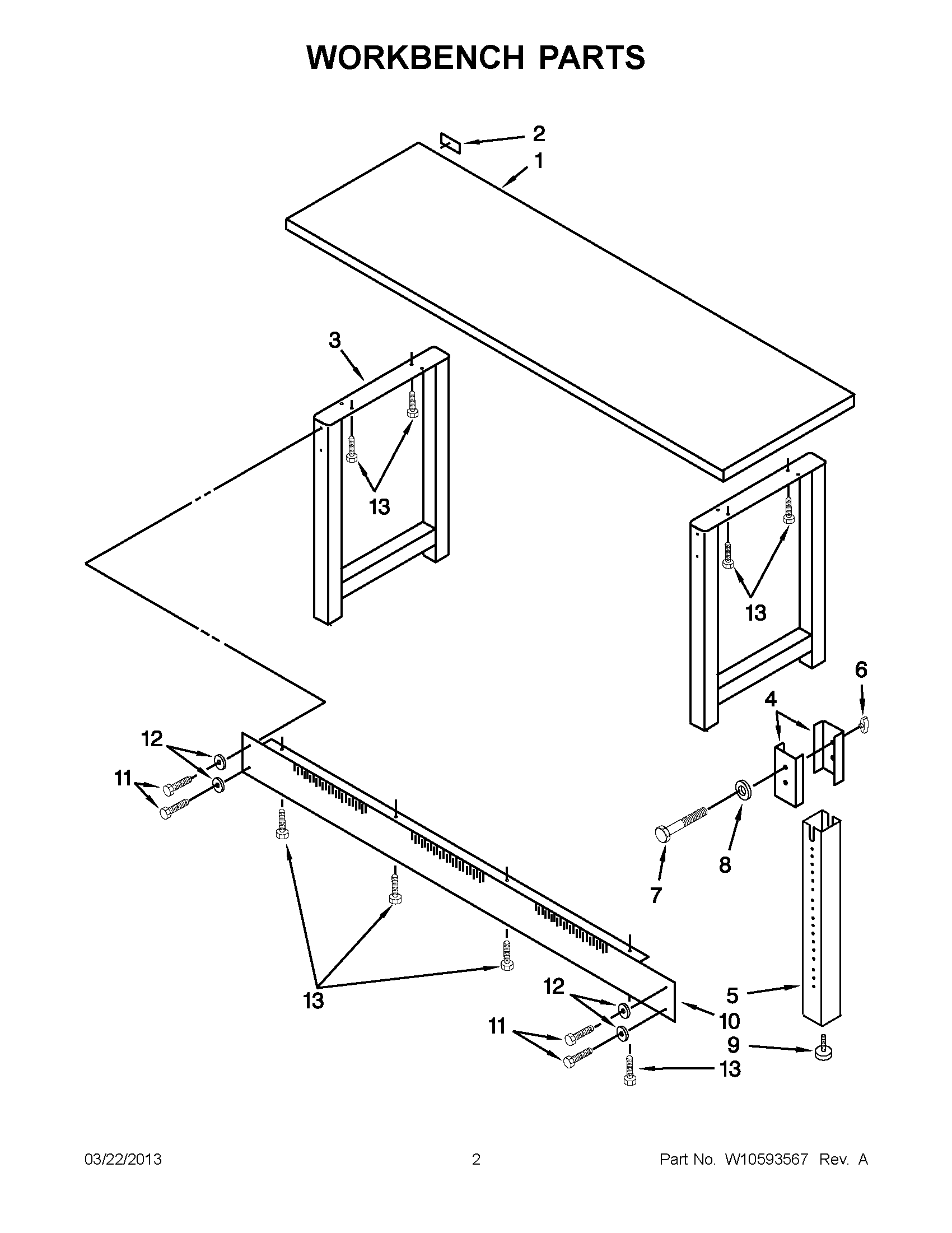

GAWB08BAZW00 01 – WORKBENCH PARTS

GAWB08BAZW00 01 – WORKBENCH PARTS

Written by

in

GAWB08BAZW00 01 – WORKBENCH PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2NAMEPLATE, GLADIATOR
3LEG, OUTER WITH NUTSERTS
4BUSHING
5LEG, ADJUSTABLE TUBE
6W10554099 Whirlpool Nut
7WPW10524957 Whirlpool Bolt
8WPW10524943 Whirlpool Washer
9W10849208 Whirlpool Leg Leveler
10STRINGER (8 FOOT)
10STRINGER (6 FOOT)
11WP8204624 Whirlpool Bolt
12WP8211255 Whirlpool Washer
13WP8204626 Whirlpool Bolt
