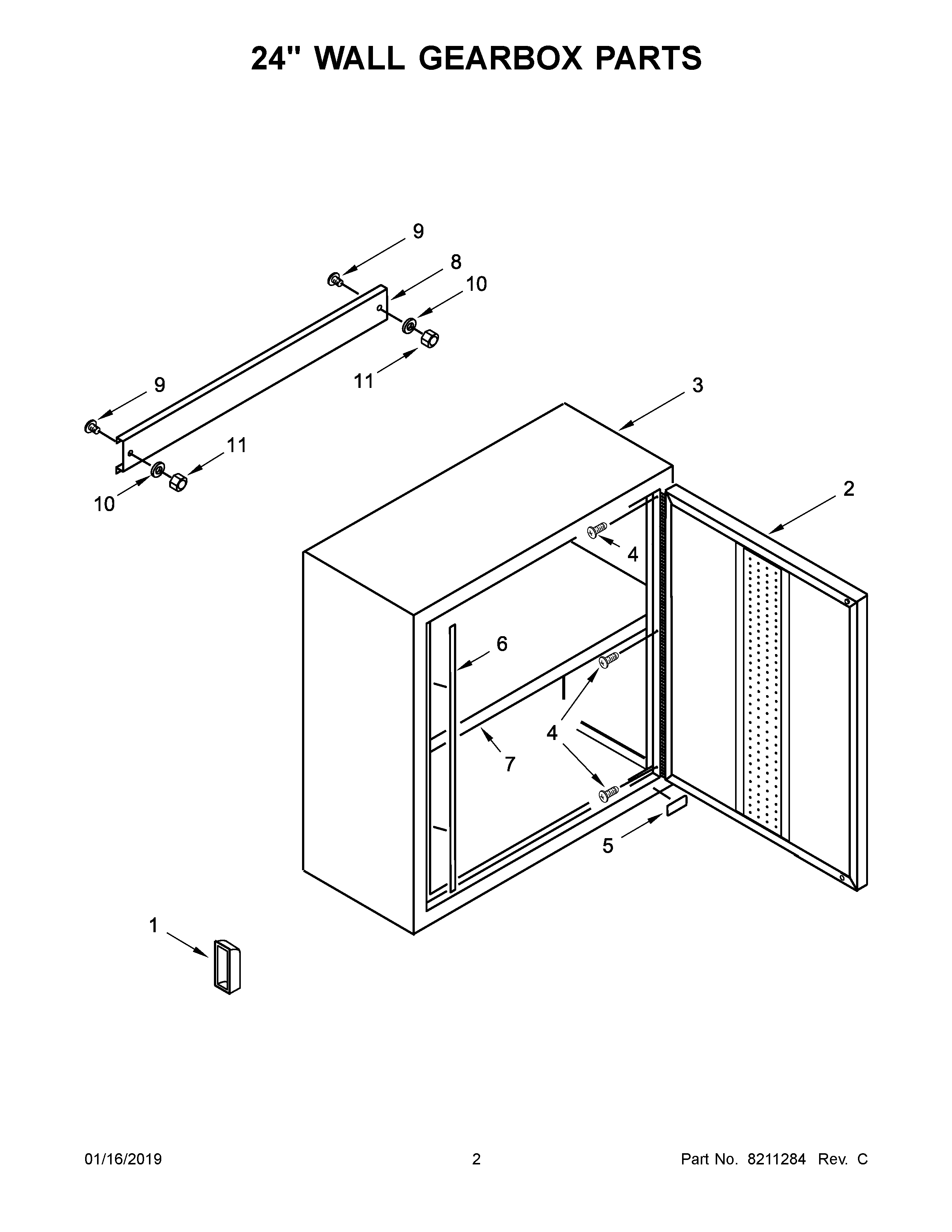

GAWG241DRG00 02 – 24″ WALL GEARBOX PARTS

Products

PositionProduct
1W10914558 Whirlpool Door Handle
2ADOOR ASSEMBLY (INCLUDES HANDLE) (RED TREADPLATE)
2DOOR ASSEMBLY (INCLUDES HANDLE) (SILVER TREADPLATE)
3CABINET (NOT A SERVICEABLE PART)
4WPW10001180 Whirlpool Refrigerator Screw
5NAMEPLATE, GLADIATOR
68211279 Whirlpool Magnet Assembly
78211266 Whirlpool Shelf
88211204 Whirlpool Bracket
9WP8204621 Whirlpool Bolt
10WASHER, FLAT
11WP8204622 Whirlpool Nut
