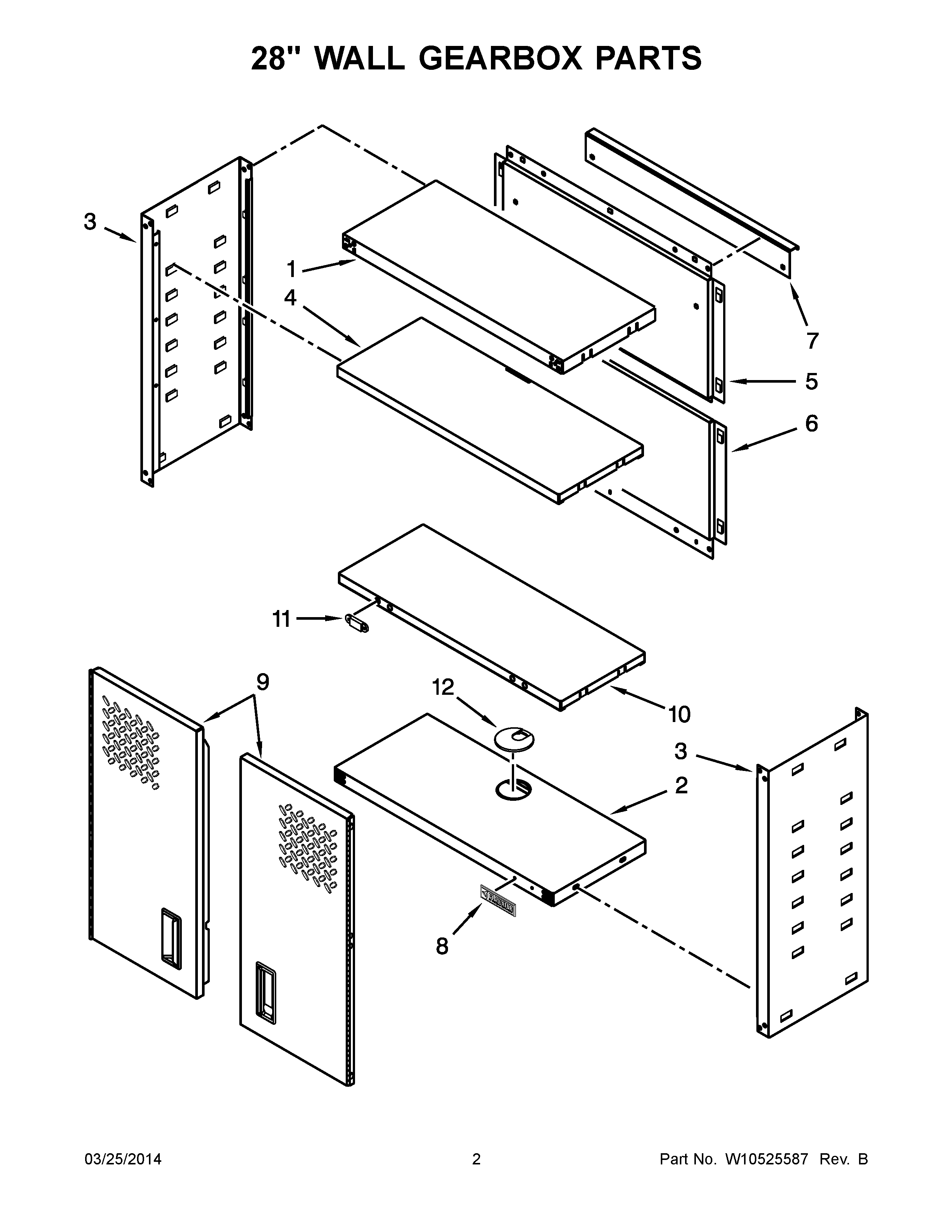

GAWG28FDYG00 02 – 28“ WALL GEARBOX PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW10524984 Whirlpool Miscellaneous Parts Assembly
1PANEL, TOP
2PANEL, BOTTOM (INCLUDES ITEMS 8 & 12)
3PANEL, SIDE
4SHELF
5PANEL, BACK (UPPER)
6PANEL, BACK (LOWER)
7W11676534 Whirlpool Bracket
8NAMEPLATE, GLADIATOR
9WPW10294214 Whirlpool Door
9W10524986 Whirlpool Door Assembly
10SHELF W/MAGNET
11WPW10294218 Whirlpool Magnet Assembly
12Grommet Assembly
