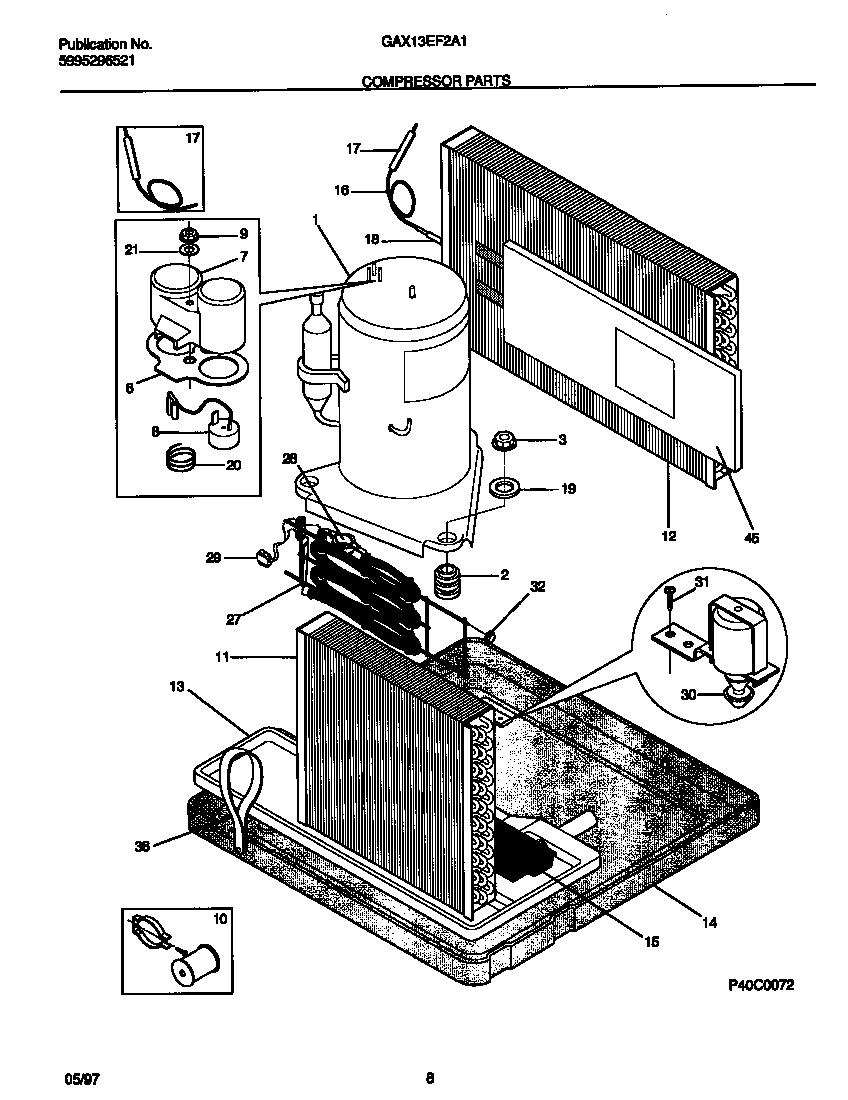

GAX13EF2A1 05 – COMPRESSOR PARTS

Products

Position	Product
1	WCI 5303322099
2	GROMMET,COMPRESSOR MTG ,(3)
3	NUT,COMPRESSOR MTG ,(3)
6	WCI 5303002035
7	COVER-TERMINAL
8	WCI 5303322098
9	WCI 5303301734
10	WCI 5303317601
11	WCI 309610101
12	WCI 3206086
13	WCI 5303306447
14	WCI 5303322210
15	WCI 309612301
16	WCI 5308017253
17	5300265301 Frigidaire Air Conditioner P1 Filter Drier
18	WCI 5303290357
19	WASHER,COMPRESSOR MTG
20	SPRING-OVERLOAD
21	WCI 5303295516
27	WCI 309611802
28	THERMOSTAT-HEATER
29	WCI 5303322208
30	VALVE-DRAIN (NON-ILLUSTRATED)
31	SCREW-DRAIN (2)
32	NUT-HEATER
36	WCI 5303303558
45	WCI 5303311100
