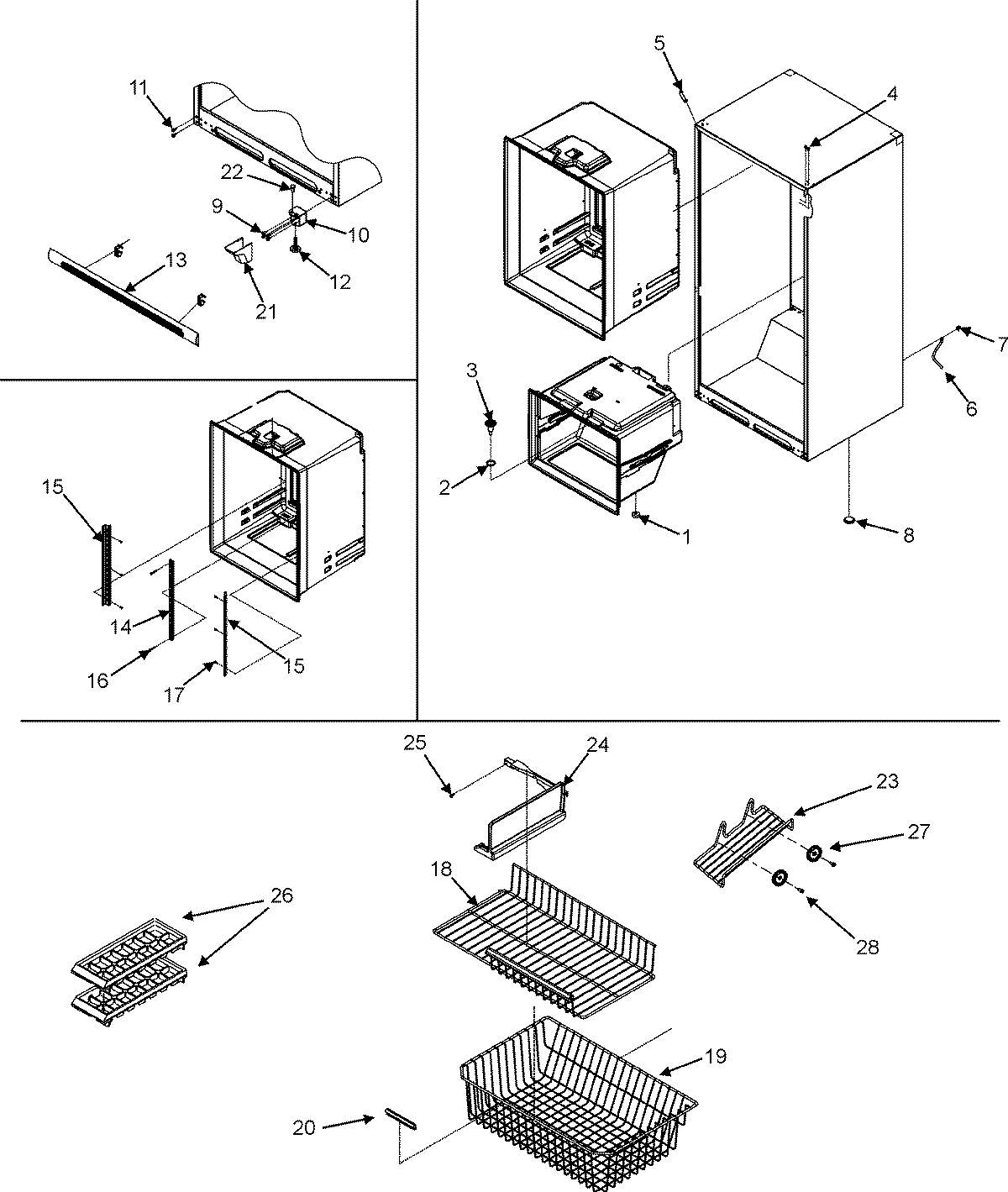

GB1924PEKB 07 – INTERIOR CABINET & FREEZER SHELVES

GB1924PEKB 07 – INTERIOR CABINET & FREEZER SHELVES

Written by

in

GB1924PEKB 07 – INTERIOR CABINET & FREEZER SHELVES

Products

PositionProduct
1Gasket
2MAY M0500703
3MAY D7753903
4MAY A4539607
567003485 Whirlpool Refrigerator Corner Cover (Black)
6MAY 67001066
767001067 Whirlpool Refrigerator Drain Tube Clip
8A3076901 Whirlpool Refrigerator Plug
9MAY 67003858
10MAY 67001068
11MAY M0211018
12MAY 10354001
13Grille Assembly (Includes Clips) (Black)
13Clip, Grille
1467001073 Whirlpool Refrigerator Center Ladder
15MAY 67001302
16MAY M0231425
17SCREW, SM
18MAY 67003470
19WP12754803 Whirlpool Refrigerator Freezer Basket
20HANDLE, BASKET/SHELF
21Cover, Lw Hinge (Black)
22PLUG, BUTTON
23Rack, Ice
24Divider, Upper Basket
25MAY 67001310
26MAY 67001747
27WP10972101 Whirlpool Refrigerator Spacer
28MAY M0230919
