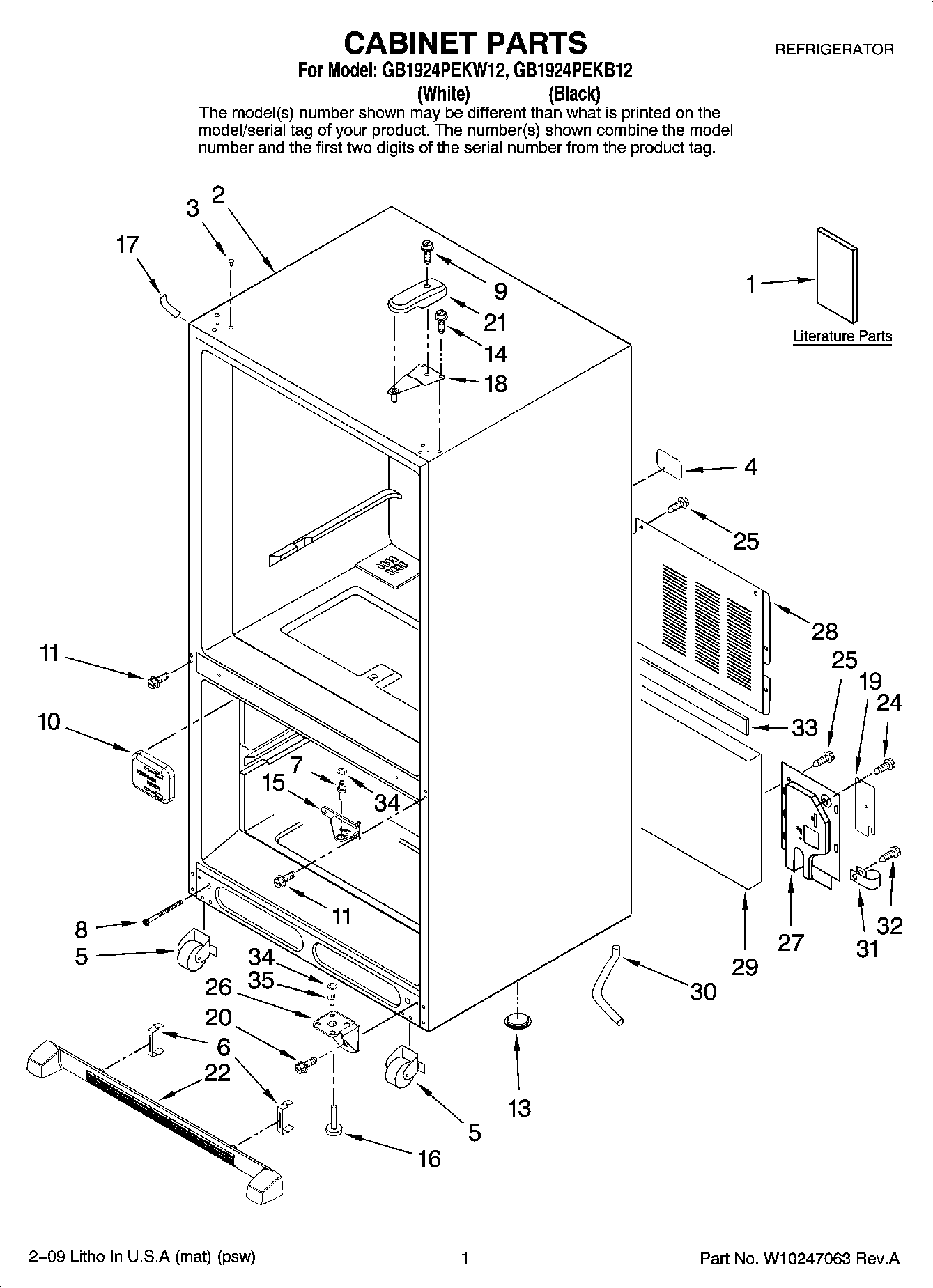

GB1924PEKB12 01 – CABINET PARTS

GB1924PEKB12 01 – CABINET PARTS

Written by

in

GB1924PEKB12 01 – CABINET PARTS

Products

PositionProduct
1Owners Manual
1MAY 12827958
3PLUG, BUTTON
3MAY M0310731
4MAY 67005064
5Roller Assy.(Rear)
6Clip, Grille
7WP67006744 Whirlpool Refrigerator Center Pin
871003131 Whirlpool Oven Screw
9WP8281196 Whirlpool Screw
10WP67001098 Whirlpool Refrigerator Tube Cover
11WP67006380 Whirlpool Screw
13A3076901 Whirlpool Refrigerator Plug
14WP489349 Whirlpool Refrigerator Screw
15MAY 12607103WD
15WP12607104ED Whirlpool Refrigerator Door Hinge
16W11177593 Whirlpool Leveling Feet
1767003485 Whirlpool Refrigerator Corner Cover (Black)
17Cover, Corner (2) (White)
18Hinge, Top
19MAY 12479902
20MAY 67006564
2167001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
2167001014 Whirlpool Refrigerator Top Hinge Cover White
22Grille Assembly (Includes Clips) (White)
22Grille Assembly (Includes Clips) (Black)
24MAY 67006662
25Screw (10)
26MAY 67001068
2612465002WD Whirlpool Refrigerator Bottom Hinge
27MAY W10132512
28MAY 67006102
2967003796 Whirlpool Refrigerator Fiber Acoustic
30MAY 67001066
3167001067 Whirlpool Refrigerator Drain Tube Clip
32SCREW
33Gasket
34MAY M0274057
34MAY M0274062
3567007018 Whirlpool Refrigerator Bottom Hinge PIN
