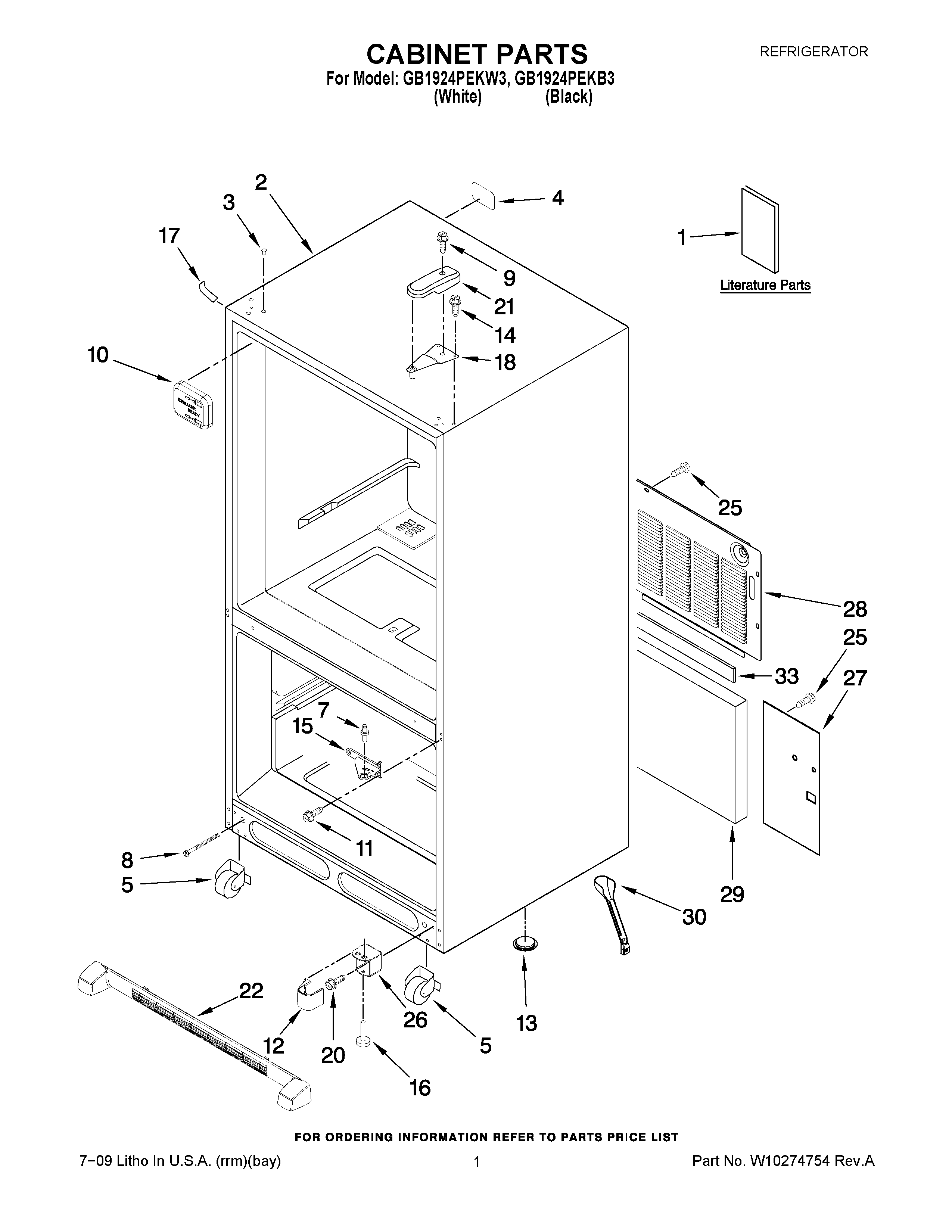

GB1924PEKB3 01 – CABINET PARTS

GB1924PEKB3 01 – CABINET PARTS

Written by

in

GB1924PEKB3 01 – CABINET PARTS

Products

PositionProduct
1TECH SHEET
1ENERGY TAG
1OWNERS MANUAL
2CABINET (NOT A SERVICEABLE PART)
3WP67001130 Whirlpool Refrigerator White Button Plug
3Plug, Button (3) (Black)
4W11685757 Whirlpool Label
5ROLLER ASSY.(REAR)
7WP67006744 Whirlpool Refrigerator Center Pin
871003131 Whirlpool Oven Screw
9WP8281196 Whirlpool Screw
10WP67001098 Whirlpool Refrigerator Tube Cover
11WP67006380 Whirlpool Screw
12Cover, Hinge (White)
12Cover, Hinge (Black)
13A3076901 Whirlpool Refrigerator Plug
14WP489349 Whirlpool Refrigerator Screw
15WP12607103WD Whirlpool Refrigerator Center Hinge
15WP12607104ED Whirlpool Refrigerator Door Hinge
16W11177593 Whirlpool Leveling Feet
1712587703W Whirlpool Refrigerator Cover
1767003485 Whirlpool Refrigerator Corner Cover (Black)
18WP12566606ED Whirlpool Refrigerator Door Hinge
2067006564 Whirlpool Refrigerator Screw
2167001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
2167001014 Whirlpool Refrigerator Top Hinge Cover White
22GRILLE, TOE (BLACK)
22GRILLE ASSEMBLY (WHITE)
2567006425 Whirlpool Refrigerator Screw
2612465002WD Whirlpool Refrigerator Bottom Hinge
2612465005ED Whirlpool Door Hinge
27W11684617 Whirlpool Valve Cover
28COVER, UNIT
29INSULATION, SOUND
30W10619951 Whirlpool Drain Tube with Grommet
33B5759655 Whirlpool Refrigerator Gasket
