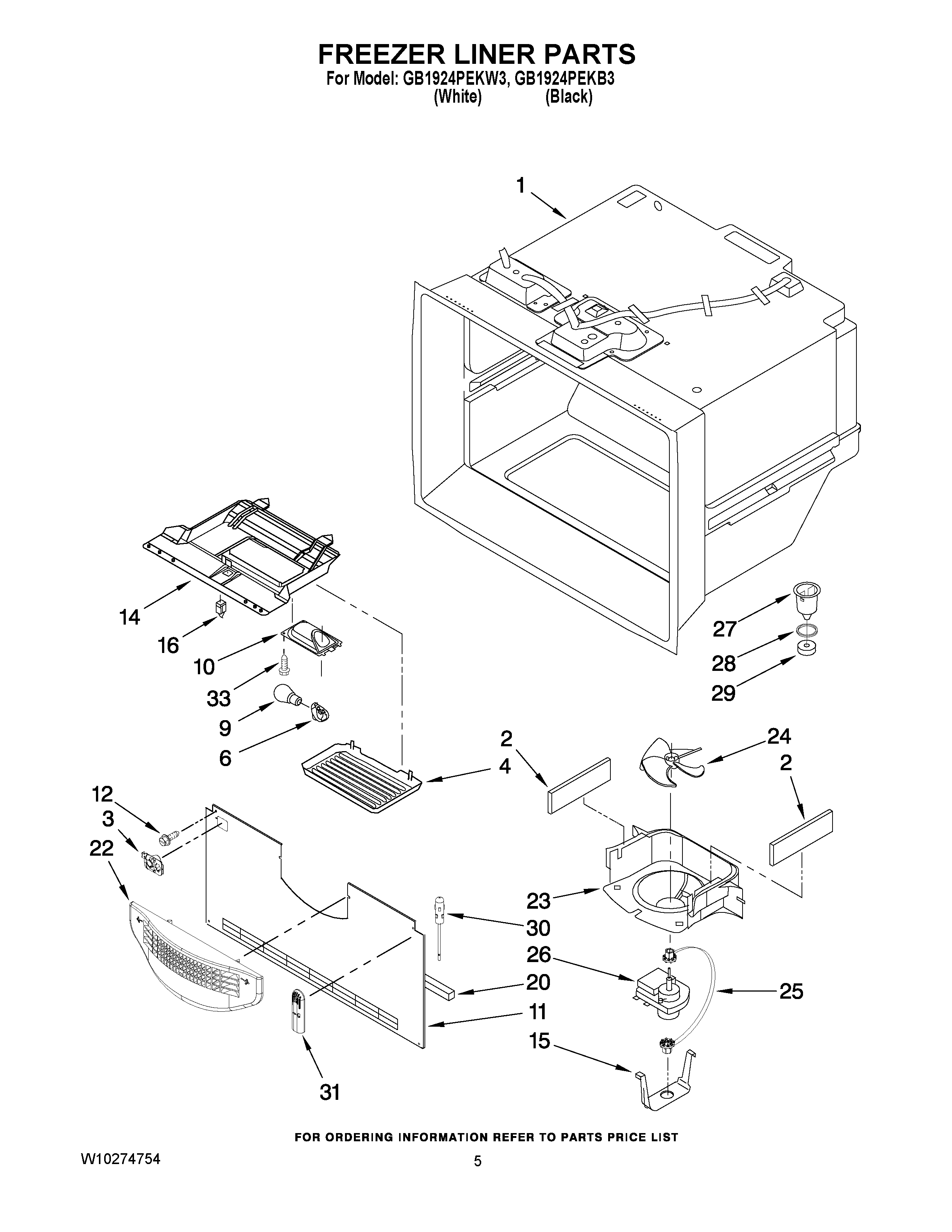

GB1924PEKB3 03 – FREEZER LINER PARTS

GB1924PEKB3 03 – FREEZER LINER PARTS

Written by

in

GB1924PEKB3 03 – FREEZER LINER PARTS

Products

PositionProduct
NIHarness, Fz Module
1CABINET (NOT A SERVICEABLE PART)
2W10856123 Whirlpool Refrigerator Gasket
3W11448709 Whirlpool Refrigerator Bracket
4Cover, Light
6W11447232 Whirlpool Refrigerator Socket
9WP67002552 Whirlpool Refrigerator Light Bulb
10W11702858 Whirlpool Housing
11COVER, EVAPORATOR
12WP489349 Whirlpool Refrigerator Screw
1467003906 Whirlpool Refrigerator Control Module
15CLIP, EVAPORATOR MOTOR
16W11396033 Whirlpool Refrigerator Rocker Switch
20GASKET, BOTTOM
22WPW10175909 Whirlpool Grille Assembly
23WPW10167023 Whirlpool Refrigerator Shroud
24WP2169142 Whirlpool Fan Blade
25W10121318 Whirlpool Refrigerator Grommet
26WP67005023 Whirlpool Refrigerator Evaporator Motor
27W10815413 Whirlpool Refrigerator Funnel
28WPM0500703 Whirlpool Refrigerator O-Ring Seal
29WPB8381501 Whirlpool Refrigerator Door Gasket
3012002355 Whirlpool Refrigerator Thermistor Kit
31WP67003924 Whirlpool Refrigerator Cover
33WP90767 Whirlpool Screw
