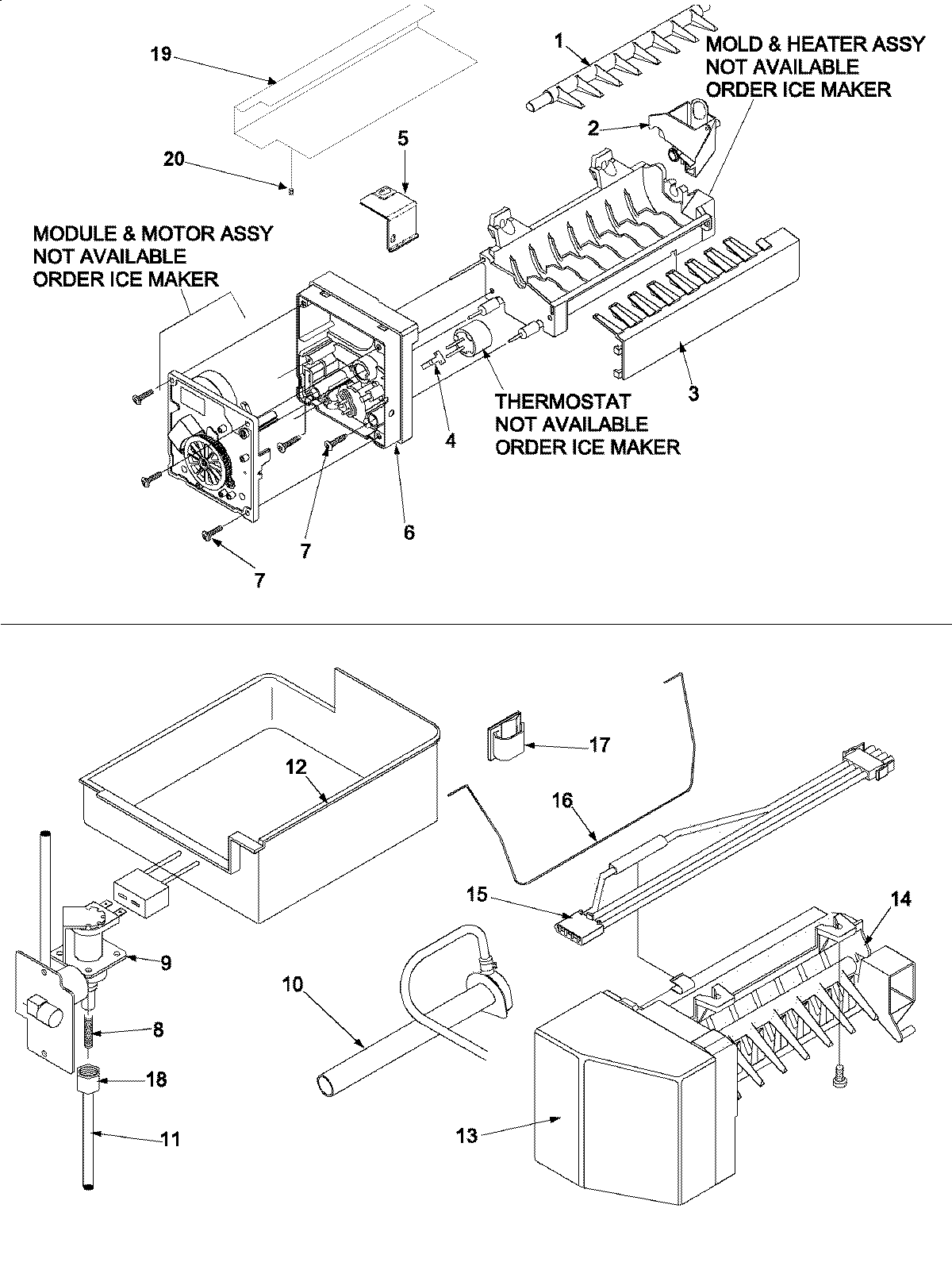

GB1924PEKS 08 – OPTIONAL ICE MAKER KIT-IC511

Products

Position	Product
1	WP627843 Whirlpool Refrigerator Ejector Arm
2	WP628356 Whirlpool Refrigerator Fill Cup
3	WP2182124 Whirlpool Refrigerator Stripper Arm
4	WP2315522 Whirlpool Refrigerator Clip
5	BRACKET, MODULE & HEATER
6	WP2195914 Whirlpool Refrigerator Ice Maker Housing
7	SCREW
8	SPRING, ANTI KINK
9	MAY 67002250
10	ELBOW, FILL TUBE
11	MAY B5705323
12	WP67001255 Whirlpool Ice Bucket
13	WPW10289690 Whirlpool Ice Maker Cover
14	MAY B8391802
14	MAY D7846305
15	MAY 67002248
16	ARM-SHUT
17	WPM0104106 Whirlpool Refrigerator Clip
18	NUT, SLEEVE
19	SHIELD, ICE MAKER
20	MAY M0211016
21	W10833902 Whirlpool Refrigerator Clamp
22	MAY 95108-1
23	MAY A3223101
24	Clip
25	W11033771 Whirlpool Refrigerator Coupling
26	SCREW, SM
27	MAY M0211018
28	MAY 67003799
29	MAY B5720302
