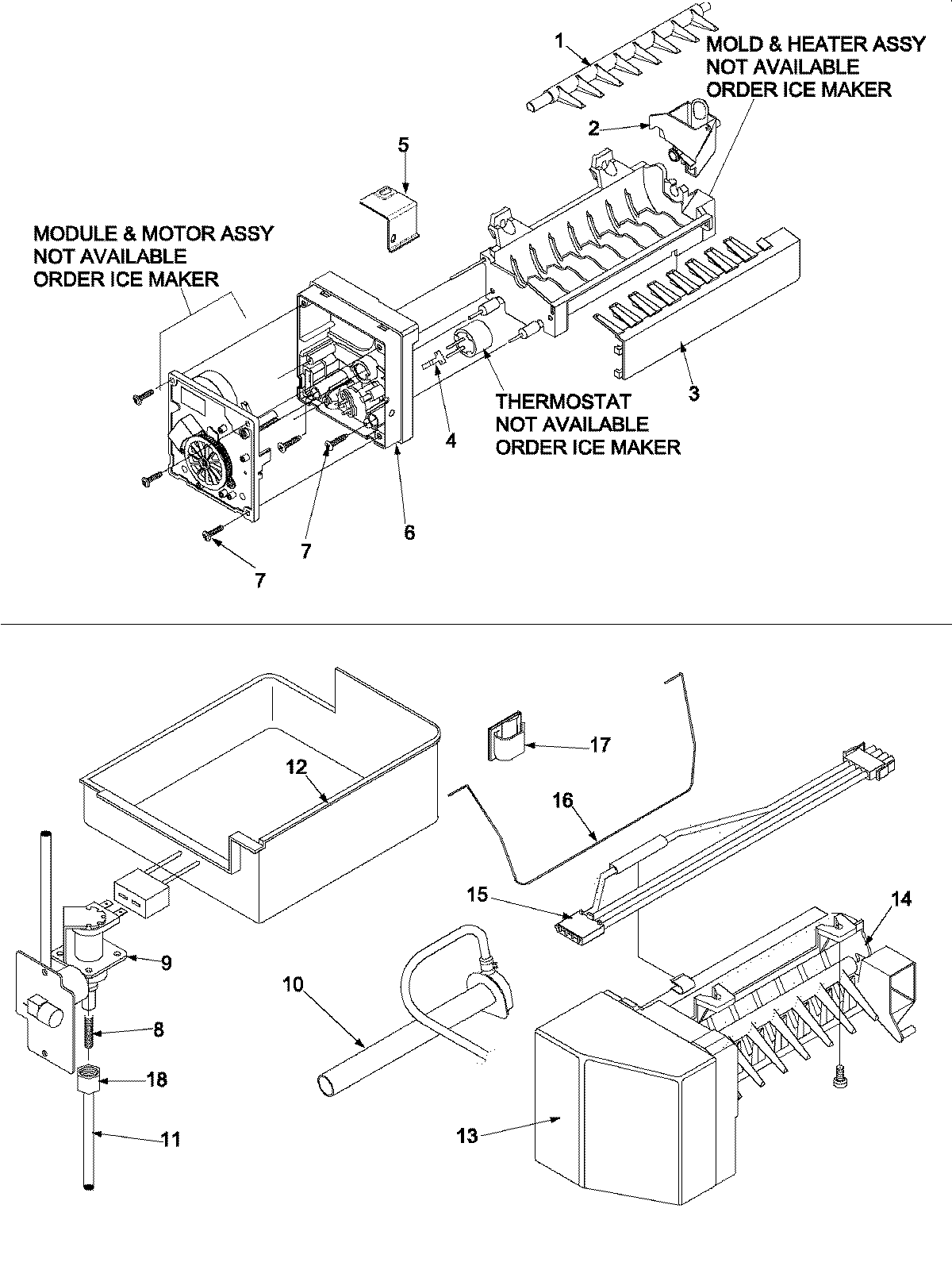

GB2026LEKS 07 – OPTIONAL ICE MAKER KIT- IC511 P1328006W

Products

Position	Product
1	WP627843 Whirlpool Refrigerator Ejector Arm
2	WP628356 Whirlpool Refrigerator Fill Cup
3	WP2182124 Whirlpool Refrigerator Stripper Arm
4	WP2315522 Whirlpool Refrigerator Clip
5	BRACKET, MODULE & HEATER
6	WP2195914 Whirlpool Refrigerator Ice Maker Housing
7	SCREW
8	SPRING, ANTI KINK
9	MAY 67002250
10	ELBOW, FILL TUBE
11	MAY B5705323
12	WP67001255 Whirlpool Ice Bucket
13	WPW10289690 Whirlpool Ice Maker Cover
14	MAY D7846305
15	MAY 67002248
16	SHIELD, ICE MAKER
16	ARM-SHUT
16	MAY B8391802
17	WPM0104106 Whirlpool Refrigerator Clip
18	NUT, SLEEVE
19	W10833902 Whirlpool Refrigerator Clamp
20	MAY 95108-1
21	MAY A3223101
22	Clip
23	MAY 10244905
