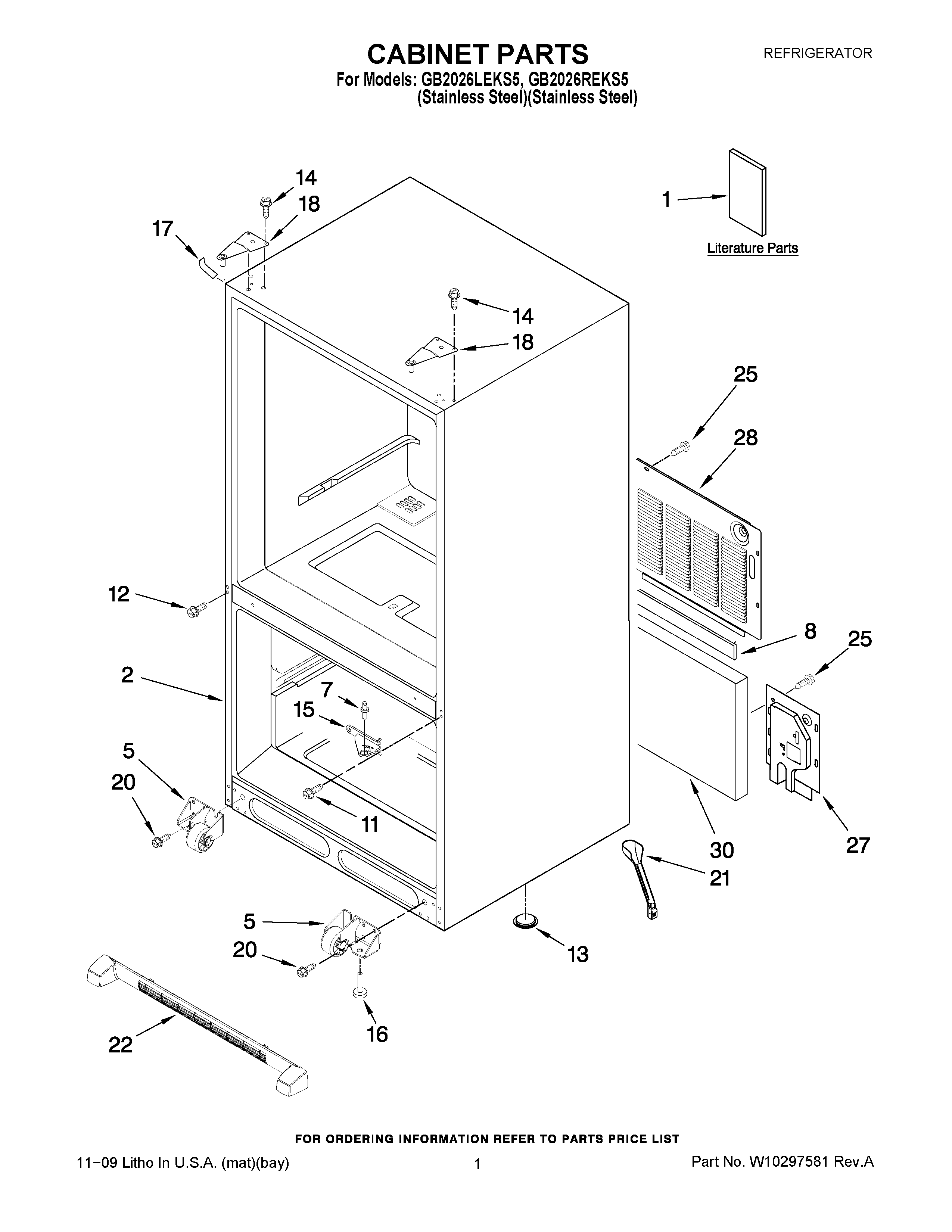

GB2026LEKS5 01 – CABINET PARTS

Products

Position	Product
1	MAY W10239994
1	Owners Manual
2	LINER (NOT A SERVICEABLE PART)
5	ROLLER ASSY. (FRONT) (RIGHT)
5	ROLLER ASSY. (FRONT) (LEFT)
7	MAY 10351006
8	MAY B5759655
11	SCREW (6)
12	Screw (8)
13	A3076901 Whirlpool Refrigerator Plug
14	SCREW (6)
15	MAY 12607104ED
16	Brake, Foot
17	COVER, CORNER (BLACK)
18	Hinge, Top
20	Screw (8)
21	MAY W10210988
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK)
25	SCREW (10)
27	MAY W10217701
28	MAY W10212203
30	Insulation, Sound
