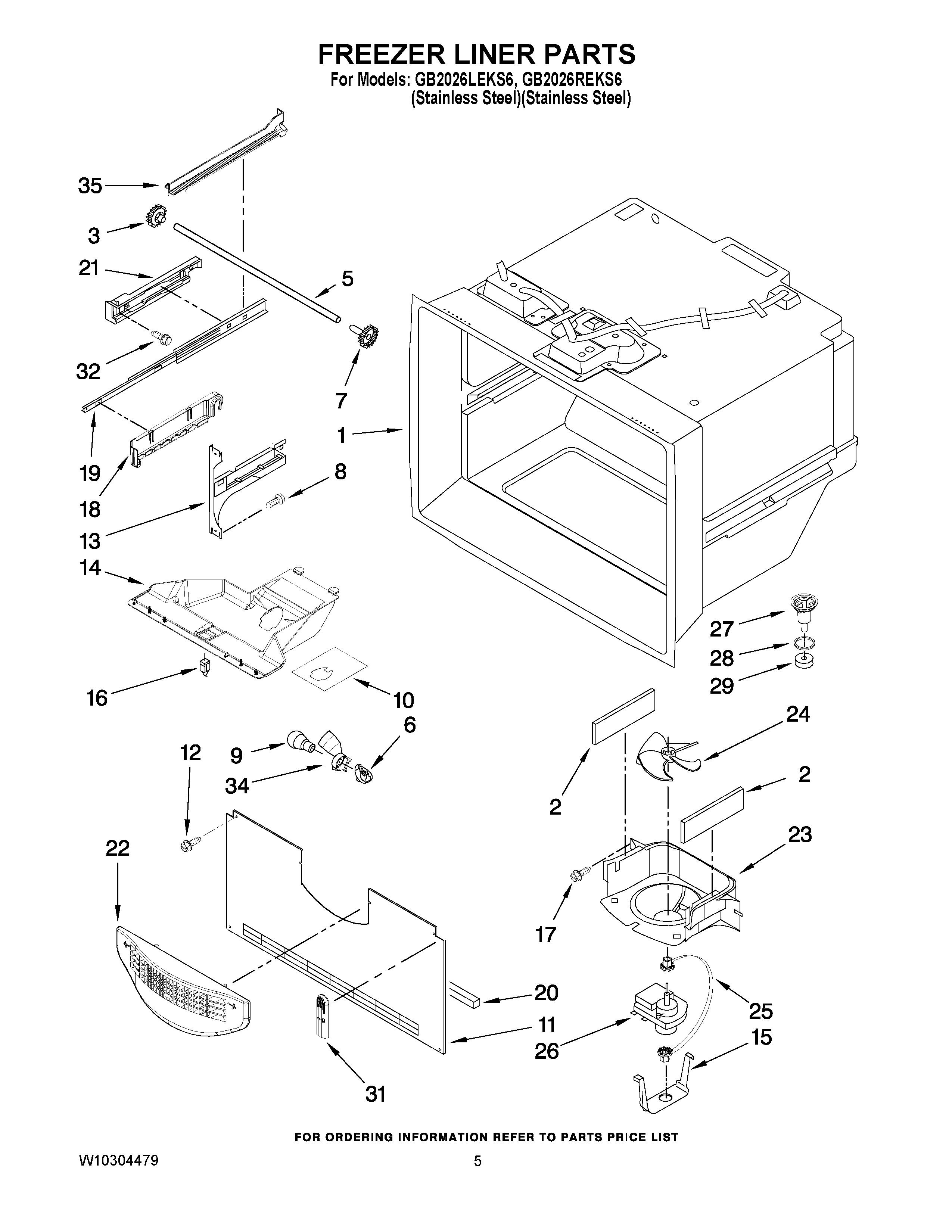

GB2026LEKS6 03 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
5	SHAFT
6	MAY W10134764V
7	12002497 Whirlpool Refrigerator Drawer Gear Kit
8	MAY 12990701
9	MAY A0282808V
10	FOIL-FZ LIGHT
11	MAY 12226114
12	SCREW (10)
13	MAY W10119295
13	MAY W10119064
14	MODULE-FZ LIGHT
15	CLIP, EVAP. MOTOR
16	MAY 12466105
17	MAY 12991603
18	CRADLE, BASKET (RIGHT)
18	CRADLE, BASKET (LEFT)
19	Slide, Drawer (2)
20	Gasket, Bottom
21	MAY W10261193
21	MAY W10261191
22	Grille, Fz Air
23	SHROUD, EVAP.FAN
24	Blade, Fan (Evaporator)
25	MAY W10121318
26	MAY 10449516
27	MAY D7753903
28	MAY M0500703
29	Gasket
31	MAY 12815301
32	Screw (6)
34	SHROUD-LGHT SOCKET
35	MAY W10284697
35	MAY W10284696
