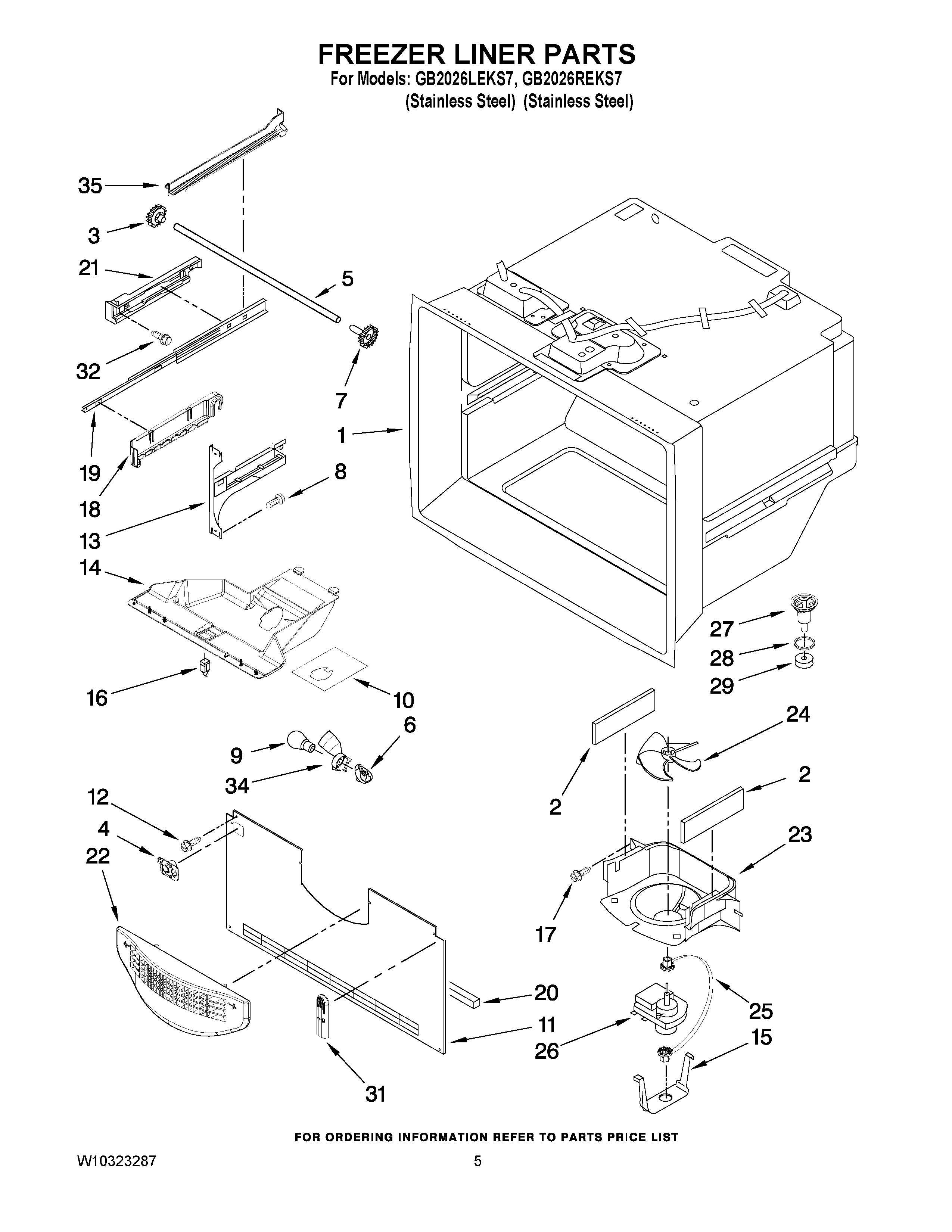

GB2026LEKS7 03 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
4	MAY 12932103
5	SHAFT
6	MAY W10134764V
7	12002497 Whirlpool Refrigerator Drawer Gear Kit
8	MAY 12990701
9	MAY A0282808V
10	FOIL-FZ LIGHT
11	MAY W10308418
12	SCREW (10)
13	MAY W10119064
13	MAY W10119295
14	MODULE-FZ LIGHT
15	CLIP, EVAP. MOTOR
16	MAY 12466114
17	MAY 12991603
18	CRADLE, BASKET (RIGHT)
18	CRADLE, BASKET (LEFT)
19	Slide, Drawer (2)
20	Gasket, Bottom
21	BRACKET, SLIDE (LEFT)
21	BRACKET, SLIDE (RIGHT)
22	Grille, Fz Air
23	SHROUD, EVAP.FAN
24	Blade, Fan (Evaporator)
25	MAY W10121318
26	MAY 10449516
27	MAY D7753903
28	MAY M0500703
29	Gasket
31	MAY 12815301
32	Screw (6)
34	SHROUD-LGHT SOCKET
35	MAY W10284696
35	MAY W10284697
