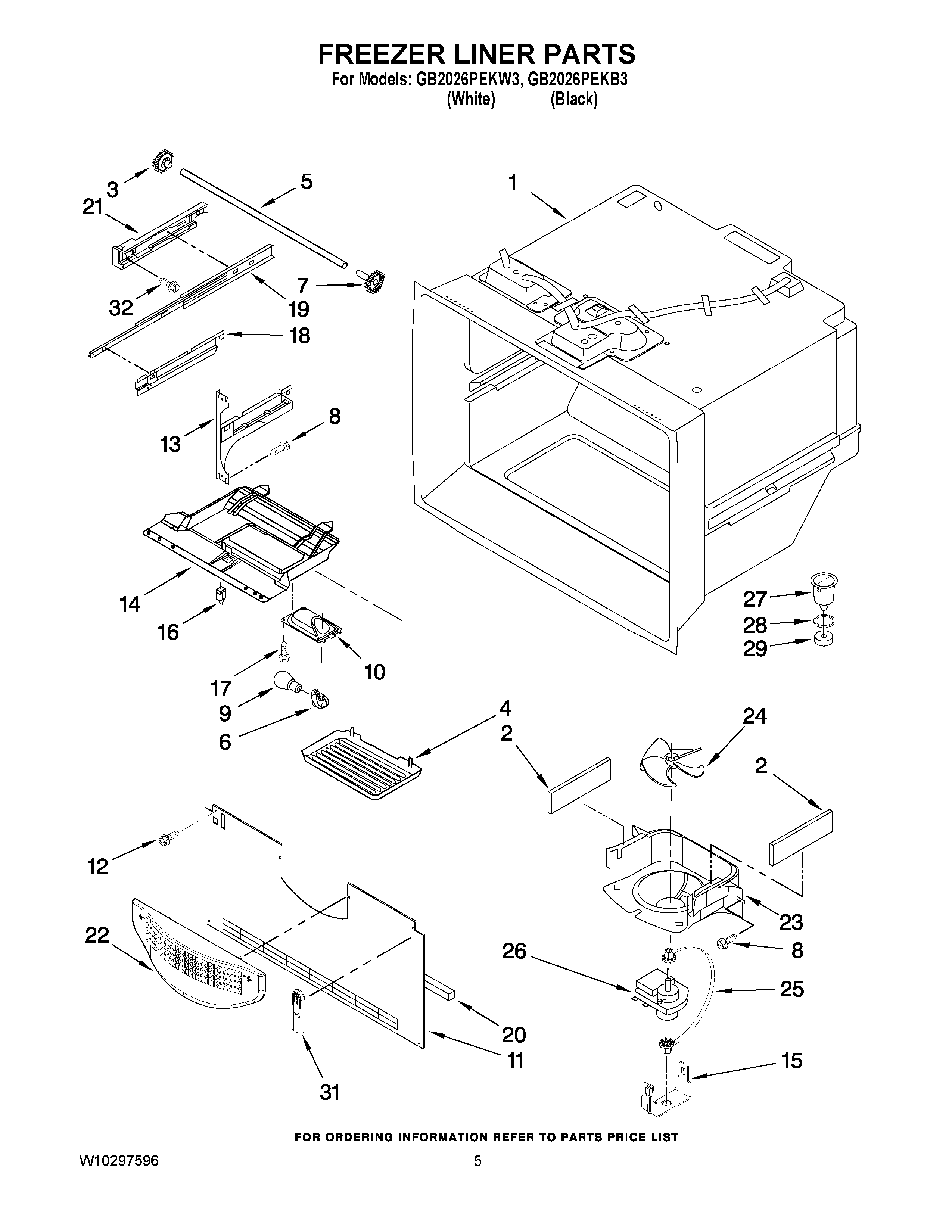

GB2026PEKB3 03 – FREEZER LINER PARTS

Products

Position	Product
NI	MAY 13065802
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
4	MAY 12804901
5	SHAFT
6	MAY W10134764
7	12002497 Whirlpool Refrigerator Drawer Gear Kit
8	MAY 12990701
9	MAY A0282808
10	MAY 12476401V
11	MAY 12226114
12	SCREW (10)
13	MAY W10119295
13	MAY W10119064
14	MODULE, FZ CONTROL
15	CLIP, EVAP. MOTOR
16	MAY 12466105
17	MAY 12991603V
18	CRADLE, BASKET (RIGHT)
18	CRADLE, BASKET (LEFT)
19	Slide, Drawer (2)
20	Gasket, Bottom
21	BRACKET, SLIDE (LEFT)
21	BRACKET, SLIDE (RIGHT)
22	Grille, Fz Air
23	SHROUD, EVAP.FAN
24	Blade, Fan (Evaporator)
25	MAY W10121318
26	MAY 10449516
27	MAY D7753903
28	MAY M0500703
29	Gasket
31	MAY 12815301
32	Screw (6)
