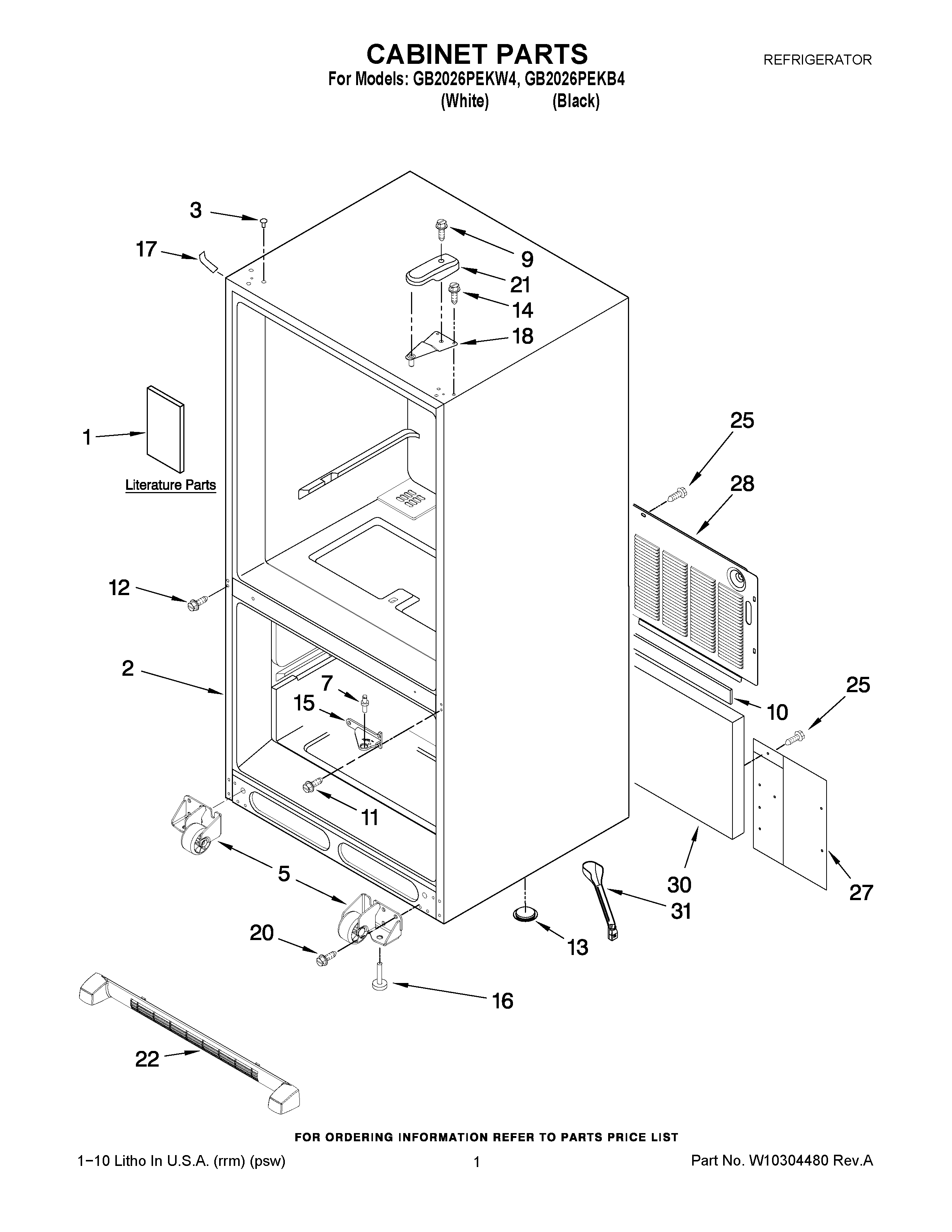

GB2026PEKB4 01 – CABINET PARTS

GB2026PEKB4 01 – CABINET PARTS

Written by

in

GB2026PEKB4 01 – CABINET PARTS

Products

PositionProduct
1MAY W10279340
1MAY 12828189SP
2LINER (NOT A SERVICEABLE PART)
3MAY M0310731
3MAY M0310729
5ROLLER ASSY. (FRONT) (LEFT)
5ROLLER ASSY. (FRONT) (RIGHT)
7MAY 10351006
9MAY 12992602
10MAY B5759655
11SCREW (6)
12Screw (8)
13A3076901 Whirlpool Refrigerator Plug
14SCREW (6)
15Hinge, Center (Black)
15Hinge, Center (White)
16Brake, Foot
17Cover, Corner (2) (White)
17COVER, CORNER (BLACK)
18Hinge, Top Right
18MAY 12626912ED
20Screw (8)
21MAY 12629801B
21COVER, HINGE (BLACK, LH)
21Cover, Right Hinge (White)
21COVER, LEFT HINGE (WHITE)
22MAY W10244559
22GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK)
25SCREW (10)
27MAY W10217701
28MAY W10212203
30Insulation, Sound
31MAY W10210988
