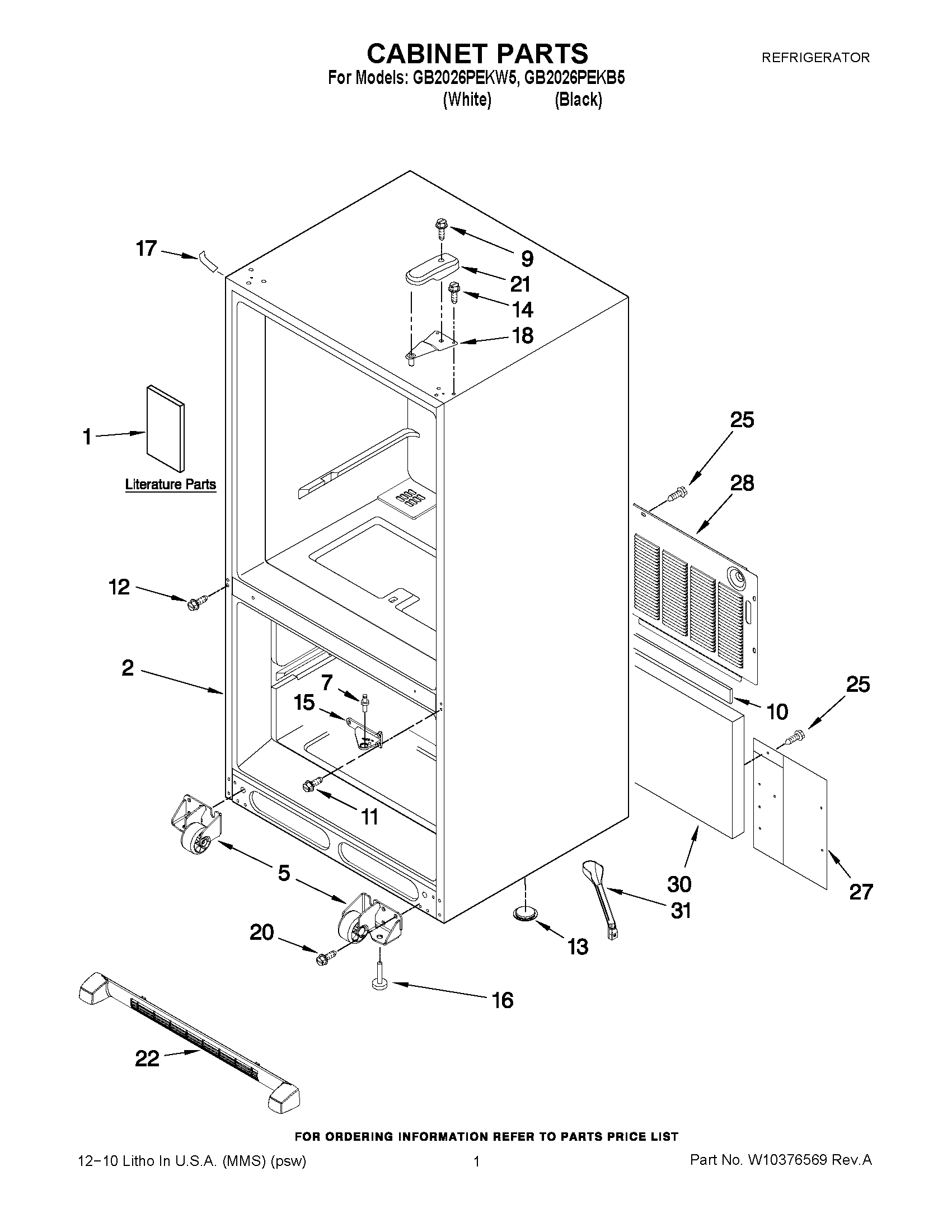

GB2026PEKB5 01 – CABINET PARTS

Products

Position	Product
1	MAY W10308619
1	MAY 12828189SP
2	LINER (NOT A SERVICEABLE PART)
5	ROLLER ASSY. (FRONT) (RIGHT)
5	ROLLER ASSY. (FRONT) (LEFT)
7	MAY 10351006
9	MAY 12992602
10	MAY B5759655
11	SCREW (6)
12	Screw (8)
13	A3076901 Whirlpool Refrigerator Plug
14	SCREW (6)
15	Hinge, Center (Black)
15	Hinge, Center (White)
16	Brake, Foot
17	Cover, Corner (2) (White)
17	COVER, CORNER (BLACK)
18	MAY 12626912ED
18	Hinge, Top Right
20	Screw (8)
21	COVER, HINGE (BLACK, LH)
21	COVER, LEFT HINGE (WHITE)
21	Cover, Right Hinge (White)
21	MAY 12629801B
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK)
22	MAY W10244559
25	SCREW (10)
27	MAY W10217701
28	MAY W10212203
30	Insulation, Sound
31	MAY W10210988
