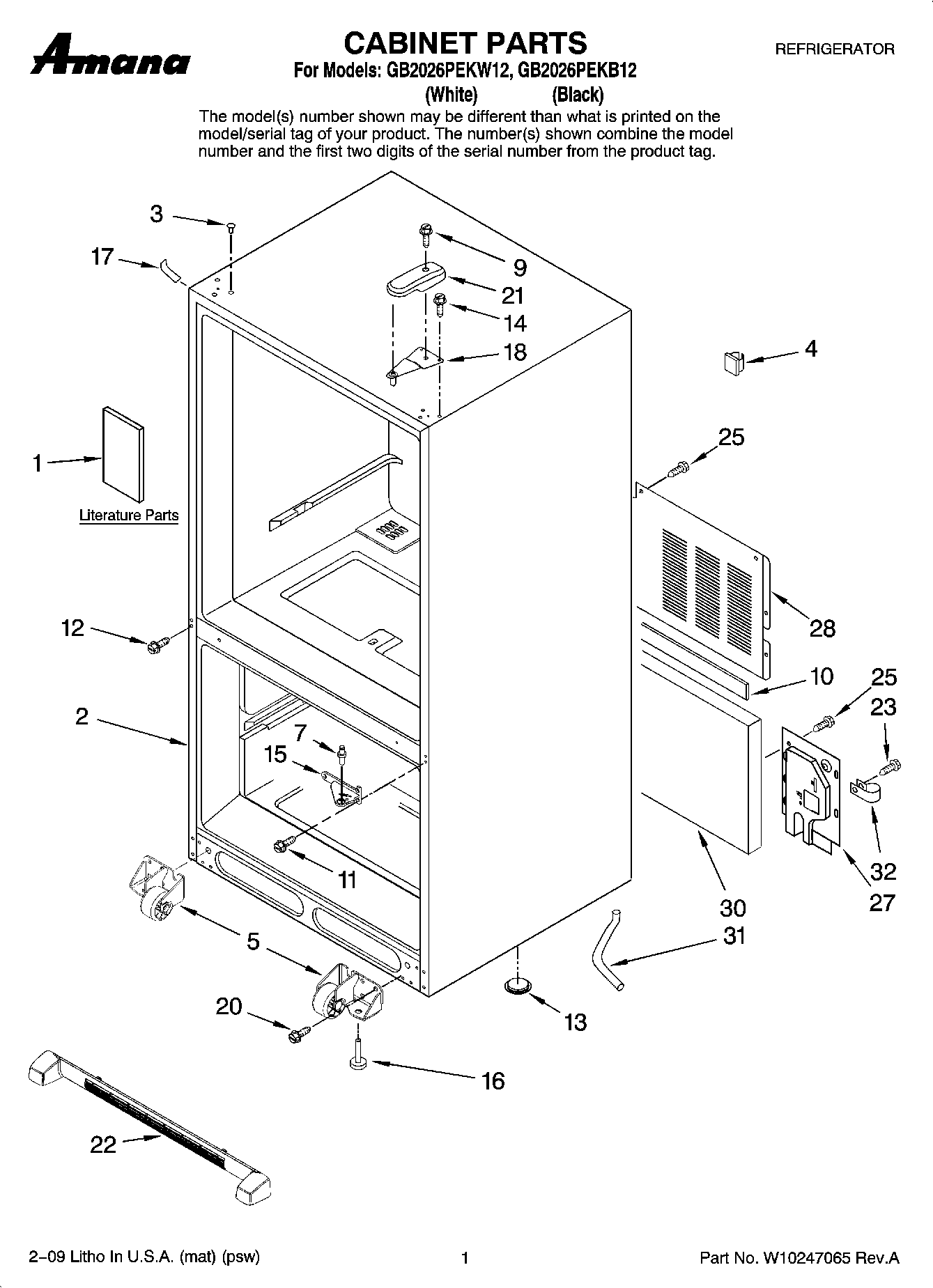

GB2026PEKW12 01 – CABINET PARTS

GB2026PEKW12 01 – CABINET PARTS

Written by

in

GB2026PEKW12 01 – CABINET PARTS

Products

PositionProduct
1Owners Manual
1MAY 12827958
3MAY M0310729
3MAY M0310731
467002816 Whirlpool Refrigerator Waterline Clip
5ROLLER ASSY.(FRONT) (RIGHT)
5ROLLER ASSY.(FRONT) (LEFT)
7WP67006642 Whirlpool Refrigerator Pin
9WP8281196 Whirlpool Screw
10Gasket
11WP67006380 Whirlpool Screw
12Screw (8)
13A3076901 Whirlpool Refrigerator Plug
14WP489349 Whirlpool Refrigerator Screw
15Hinge, Center (White)
15Hinge, Center (Black)
16Brake, Foot
17Cover, Corner (2) (White)
1767003485 Whirlpool Refrigerator Corner Cover (Black)
18MAY 12626907WD
18MAY 12626909WD
20MAY 67006564
2167001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
2167001014 Whirlpool Refrigerator Top Hinge Cover White
22MAY W10131133
22Grille Assembly (Includes Clips) (Black)
23SCREW
25Screw (10)
27MAY 12479808
28MAY 67002230
3067003796 Whirlpool Refrigerator Fiber Acoustic
31MAY 67001066
3267001067 Whirlpool Refrigerator Drain Tube Clip
