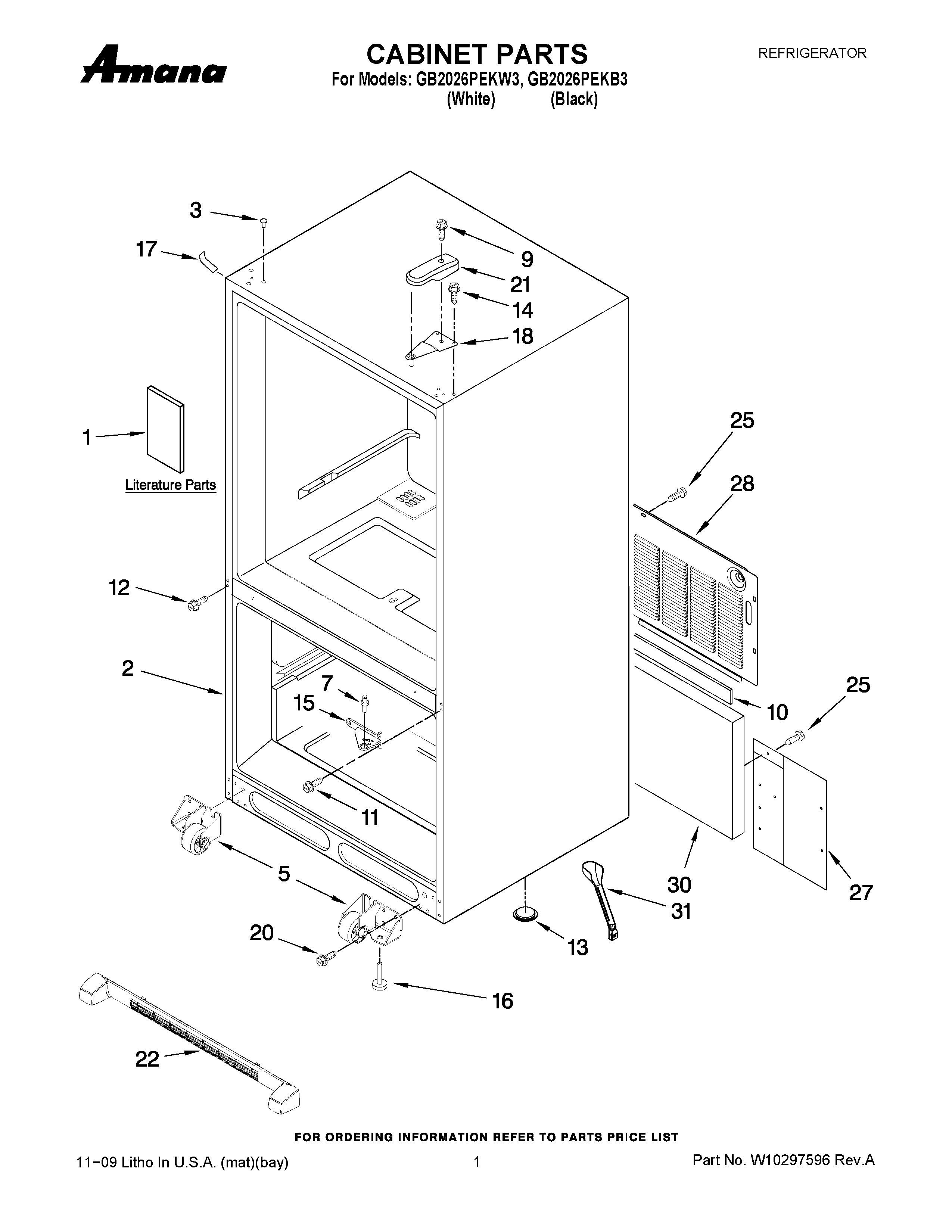

GB2026PEKW3 01 – CABINET PARTSadmin2025-04-26T08:57:30+00:00GB2026PEKW3 01 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | Owners Manual |
| 1 | MAY W10239994 |
| 2 | LINER (NOT A SERVICEABLE PART) |
| 3 | MAY M0310731 |
| 3 | MAY M0310729 |
| 5 | ROLLER ASSY. (FRONT) (RIGHT) |
| 5 | ROLLER ASSY. (FRONT) (LEFT) |
| 7 | MAY 10351006 |
| 9 | MAY 12992602 |
| 10 | MAY B5759655 |
| 11 | SCREW (6) |
| 12 | Screw (8) |
| 13 | A3076901 Whirlpool Refrigerator Plug |
| 14 | SCREW (6) |
| 15 | Hinge, Center (Black) |
| 15 | Hinge, Center (White) |
| 16 | Brake, Foot |
| 17 | Cover, Corner (2) (White) |
| 17 | COVER, CORNER (BLACK) |
| 18 | MAY 12626909WD |
| 18 | MAY 12626907WD |
| 20 | Screw (8) |
| 21 | MAY 12629801B |
| 21 | Cover, Right Hinge (White) |
| 21 | COVER, HINGE (BLACK, LH) |
| 21 | COVER, LEFT HINGE (WHITE) |
| 22 | MAY W10244559 |
| 22 | GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK) |
| 25 | SCREW (10) |
| 27 | MAY W10217701 |
| 28 | MAY W10212203 |
| 30 | Insulation, Sound |
| 31 | MAY W10210988 |
