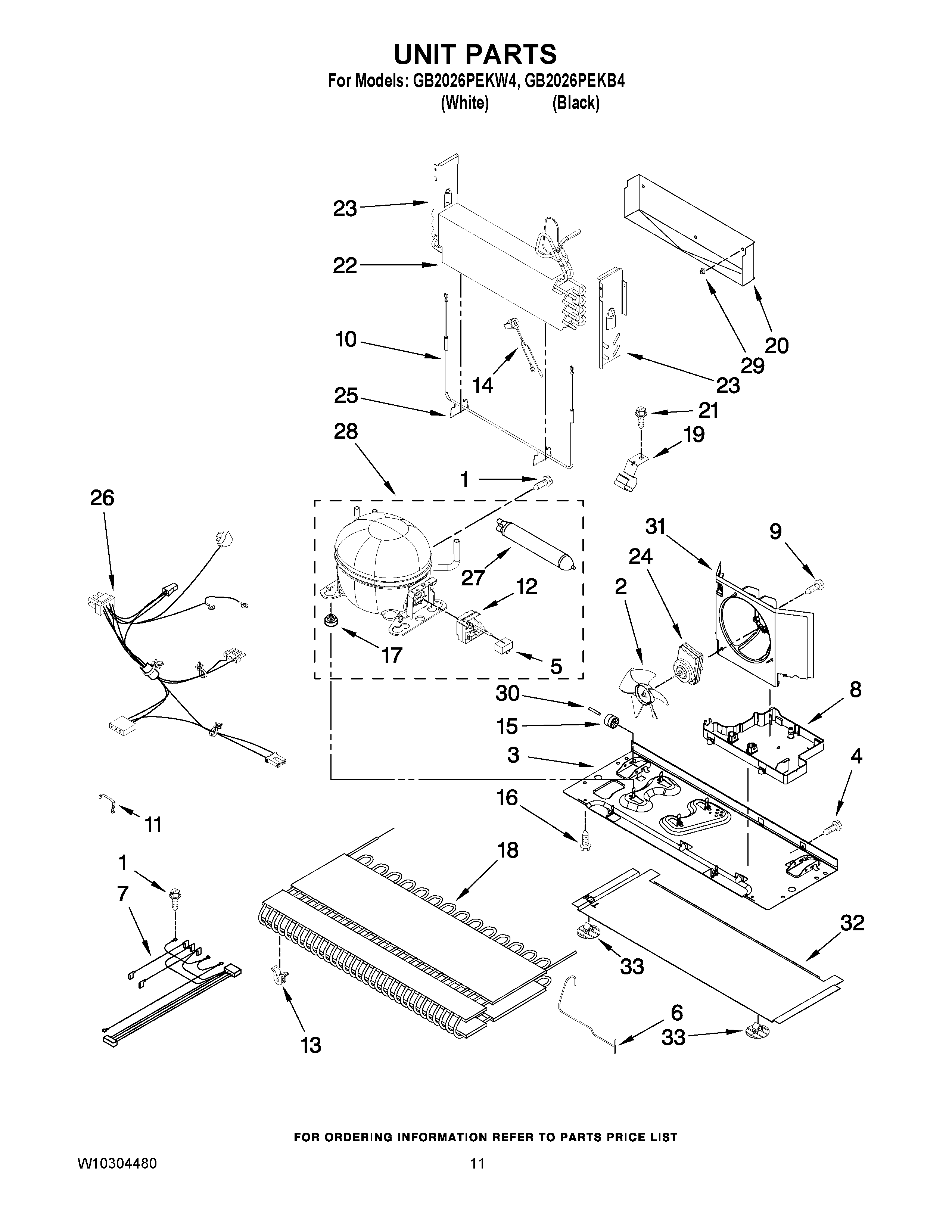

GB2026PEKW4 06 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (3/4“)
NI	Valve, Access (5/16“)
NI	Valve, Access (5/8“)
NI	Valve, Access (1/2“)
NI	VALVE, ACCESS (3/8“)
NI	VALVE, ACCESS (1/4“)
1	MAY 12992301
2	MAY 12825803
3	MAY W10210985
4	SCREW (10)
5	CAPACITOR
6	MAY W10286438
7	HARNESS, EVAP. HEATER
8	MAY W10296785
9	SCREW, SHOULDER
10	MAY 12729132
11	STRAP, BALE
12	START DEVICE
13	GROMMET, COND (4)
14	Thermostat, Def.
15	Roller (2)
16	MAY 12992101
17	Grommet (4)
18	MAY W10135027
19	MAY 10547003
20	MAY W10292803
21	MAY 12990701
22	MAY 12726403
23	DAM (LEFT SIDE)
23	Dam (Right Side)
24	MAY W10246191
25	W11673433 Whirlpool Clip
26	HARNESS, UNIT
27	Drier
28	MAY W10223234
29	MAY 10623002
30	Axle, Roller (2)
31	MAY W10189187
32	EXTENSION-BASEPAN
33	MAY W10206339
