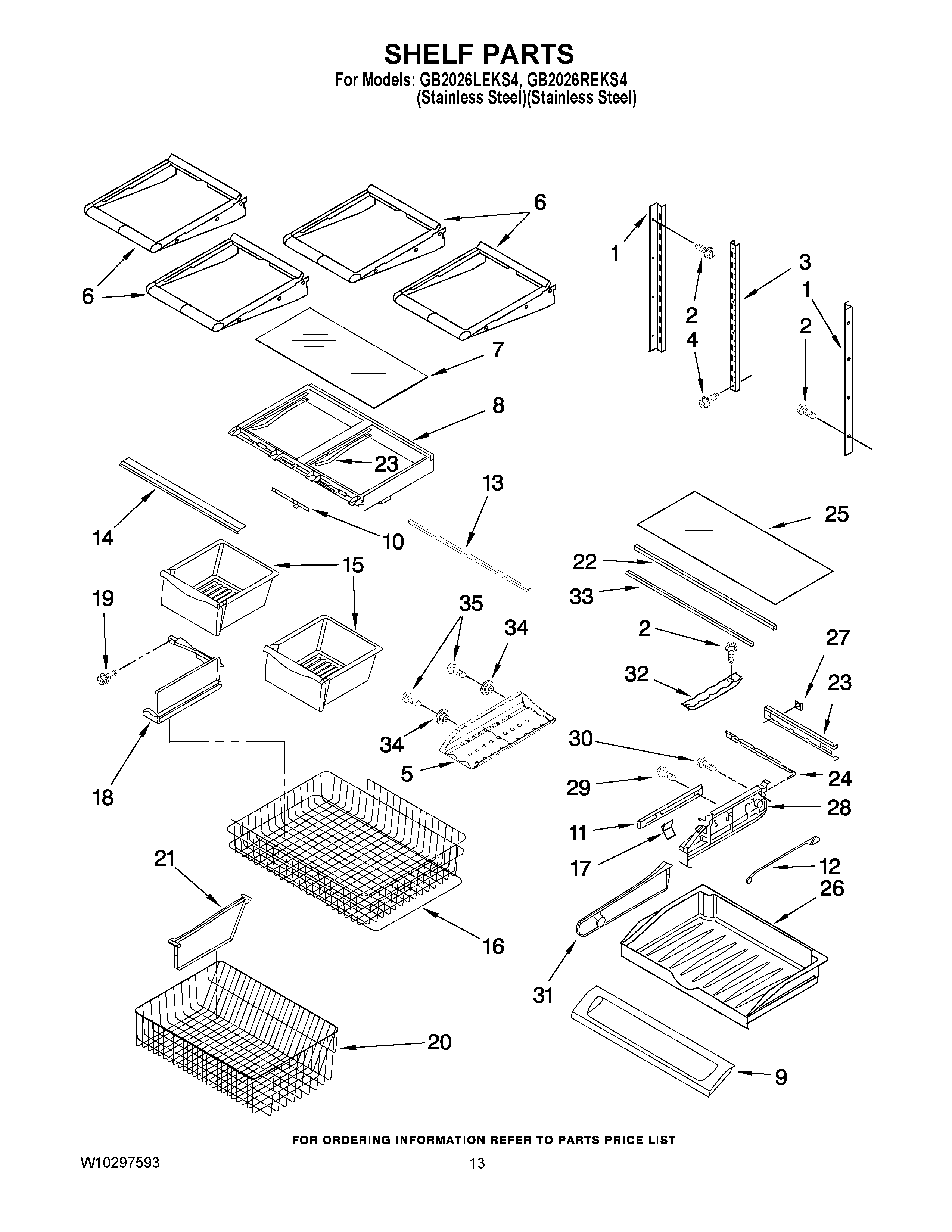

GB2026REKS4 07 – SHELF PARTSadmin2025-04-26T08:57:35+00:00GB2026REKS4 07 – SHELF PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10251971 |
| 2 | MAY 12990513 |
| 3 | MAY W10273463 |
| 4 | MAY 12990515 |
| 5 | Rack, Ice |
| 6 | SHELF, GLIDE (4) |
| 7 | Glass, Crisper Cover |
| 8 | MAY 12531202SP |
| 9 | LID, PANTRY |
| 10 | MAY 12530805SP |
| 11 | MAY 13058101V |
| 12 | ROD, TEMPERATURE CONTROL |
| 13 | Brace, Crisper |
| 14 | MAY W10231346 |
| 15 | MAY 12724123 |
| 16 | MAY 12896404 |
| 17 | MAY 12655204V |
| 18 | Divider, Upper Basket |
| 19 | MAY 12990601 |
| 20 | MAY 13016004 |
| 21 | MAY 12659606 |
| 22 | MAY 12227305WD |
| 23 | MAY 12656202 |
| 24 | SLIDE, TEMPERATURE |
| 25 | MAY 12204829 |
| 26 | MAY 12655702 |
| 27 | MAY 12656901 |
| 28 | ENDCAP, PANTRY (RIGHT) |
| 28 | Endcap, Pantry (Left) |
| 29 | SCREW (2) |
| 30 | MAY 12990504 |
| 31 | DIVIDER, PANTRY DRAWER |
| 32 | TRACK, PANTRY |
| 33 | MAY 12655902SP |
| 34 | WP10972101 Whirlpool Refrigerator Spacer |
| 35 | SCREW, SHOULDER |
