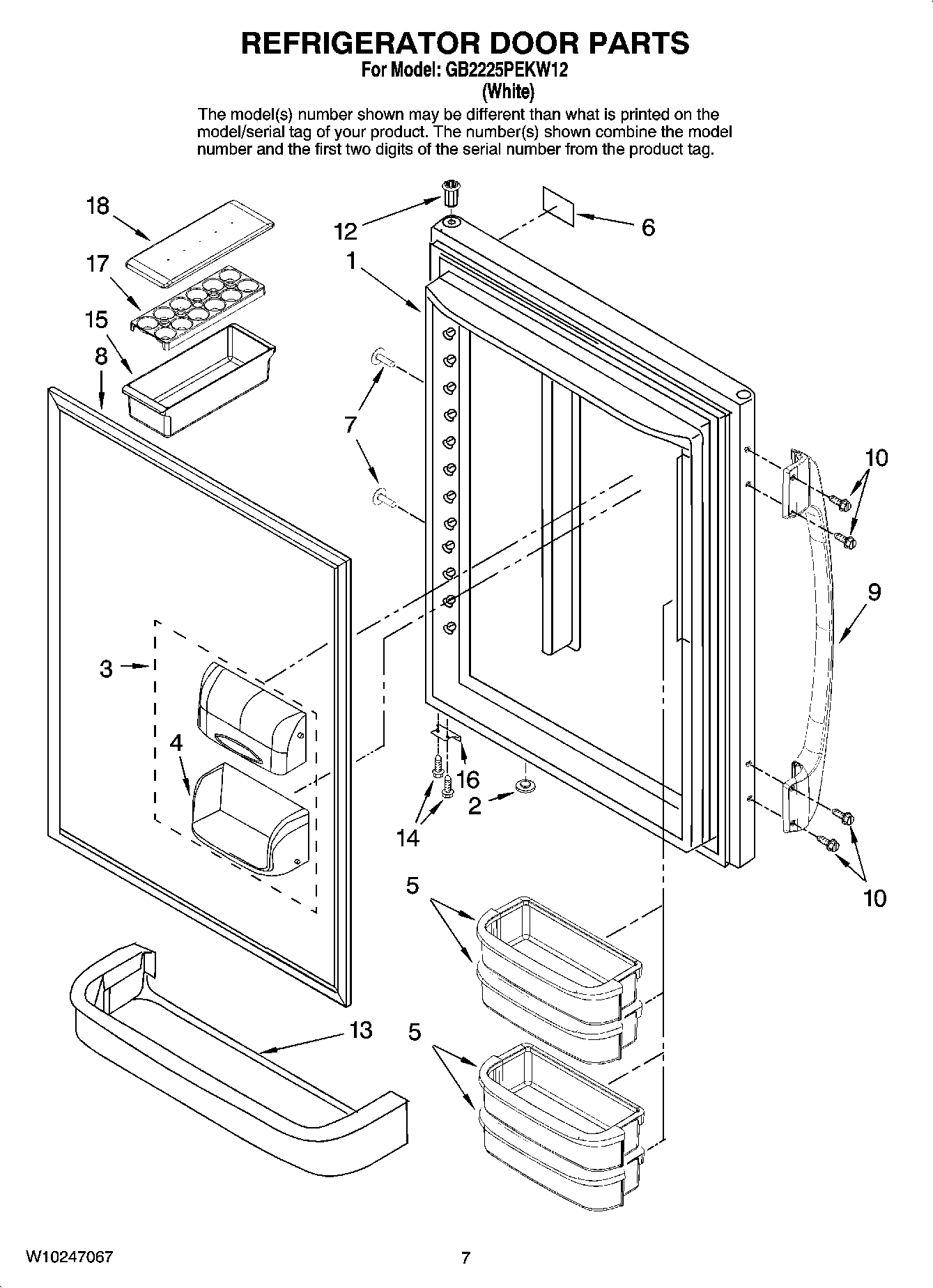

GB2225PEKW12 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1MAY 12658530WQ
2Plug, Vent (White)
3WP12744905 Whirlpool Refrigerator Compressor Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
567004040 Whirlpool Refrigerator Bucket Door
6BEZEL, NAMEPLATE (WHT)
712991101 Whirlpool Refrigerator Screw
8GASKET, FZ DOOR (WHT)
9MAY 67006119
12WP67004977 Whirlpool Refrigerator Door Hinge Bushing
13RETAINER, DOOR
14WP98165 Whirlpool Screw
15MAY 10423131
1612968202W Whirlpool Refrigerator Door Stop
17MAY 10436506
18MAY 10436404
