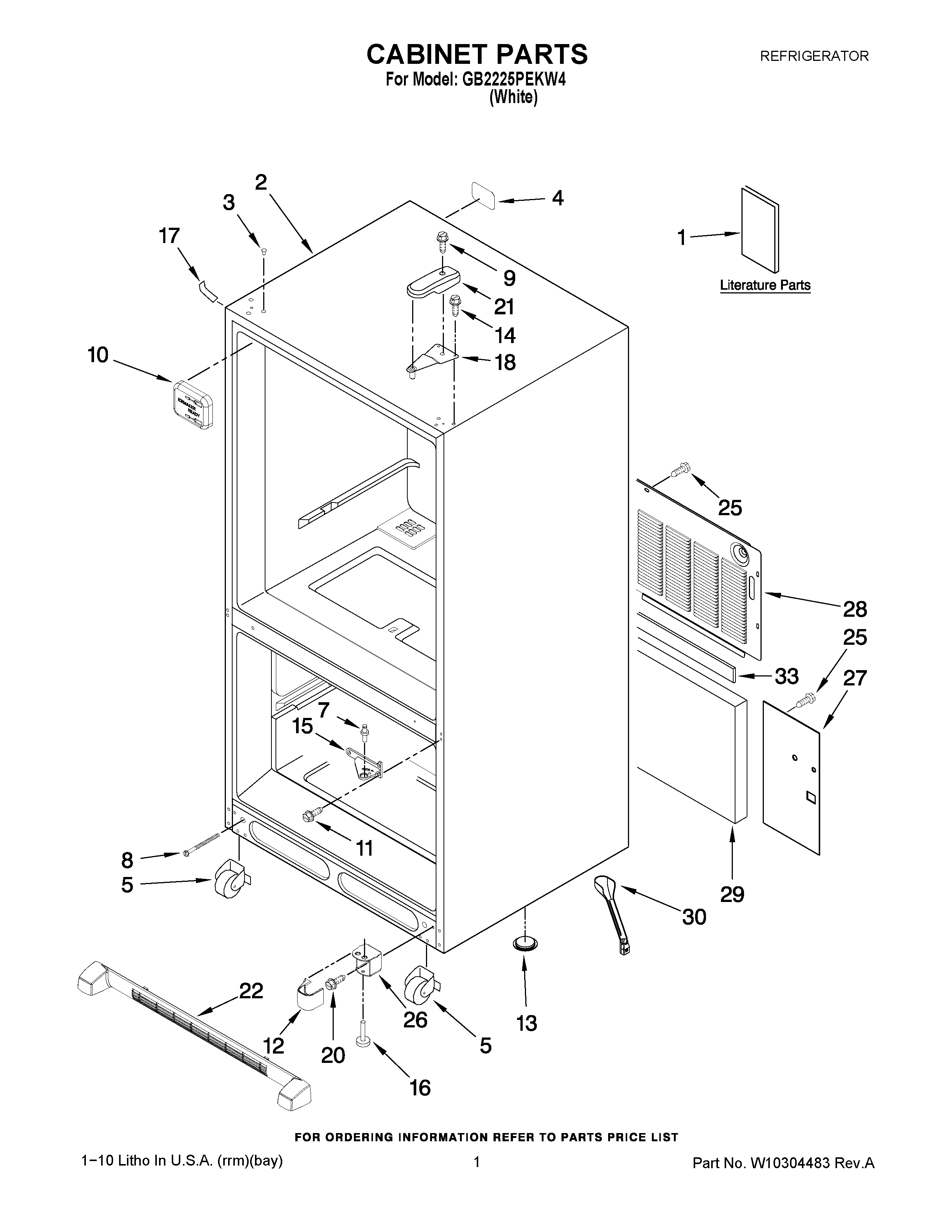

GB2225PEKW4 01 – CABINET PARTS

Products

Position	Product
1	MAY W10279339
1	MAY 12828189SP
2	LINER (NOT A SERVICEABLE PART)
3	MAY M0310729
4	LABEL-FILL TUBE
5	ROLLER ASSY.(REAR)
7	PIN, CENTER HINGE (REAR)
8	Bolt, Adjusting (Rear)
9	MAY 12992602
10	COVER-FILL TUBE
11	SCREW (6)
12	MAY 12561901W
13	A3076901 Whirlpool Refrigerator Plug
14	SCREW (6)
15	MAY 12607103WD
16	Foot Brake (2)
17	Cover, Corner (2) (White)
18	MAY 12566606ED
20	Screw (8)
21	MAY 12477601W
22	MAY 12734401W
25	SCREW (10)
26	MAY 12465002WD
27	MAY W10217701
28	MAY W10212535
29	Insulation, Sound
30	MAY W10210988
33	MAY B5759655
