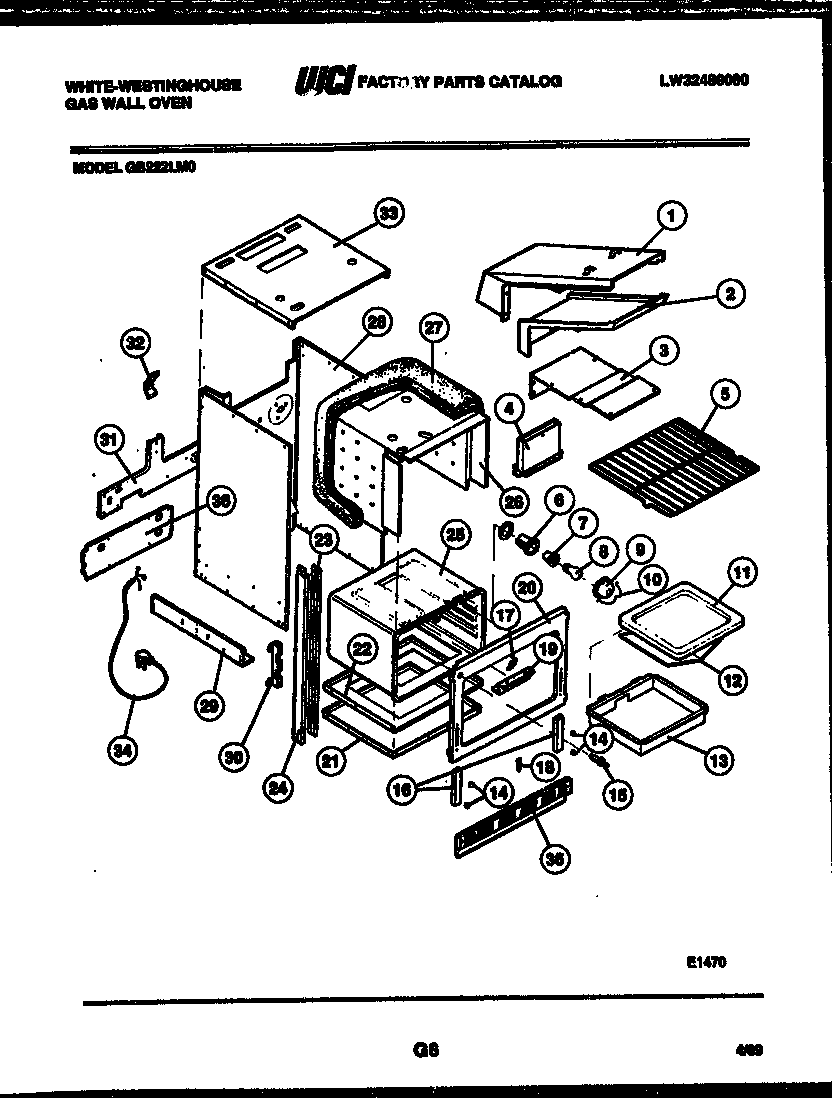

GB222LM0 06 – BODY PARTS

Products

Position	Product
*19677	WCI 3201632
*19677	WCI 3203680
*19677	CLIP CAPILLARY (2)
1	SHIELD-FLUE COVER
2	WCI 3203725
3	SHIELD – FLUE BOTTOM
4	ADAPTER-FLUE
5	318345216 Frigidaire Oven Rack
6	WCI 3016243
7	316116400 Frigidaire Oven Light Socket
8	316538904 Frigidaire Oven Lamp Light
9	5304524341 Frigidaire Lens
10	WCI 3016244
11	WCI 3203721
12	WCI 3202720
13	WCI 3203731
14	WCI 3203663
15	WCI 3051531
16	WCI 3203688
17	WCI 3202082
18	WCI 3019063
19	SHIELD-VENT
20	WCI 3202463
21	WCI 3202447
22	SHIELD-INSULAT. BASE
23A	TRIM-SIDE, INNER, RH
23	TRIM-SIDE, INNER, LH
24	WCI 3204219
25	WCI 3203727
26	SHIELD-OVEN, TOP & SIDES
27C	INSUL. OVEN BTTM.
27B	INSUL. ADAPTOR
27	WCI 3016319
27A	INSUL. TOP
27D	INSUL. WRAP.
28	WCI 3203689
29	SUPPORT-HEIGHT ADJUSTMENT (2)
30	WCI 3201631
31	BRKT. SAFETY VALVE
32	WCI 3016281
33	WCI 3203690
34	WCI 3203699
35	WCI 3202237
36	COVER-ACCESS
