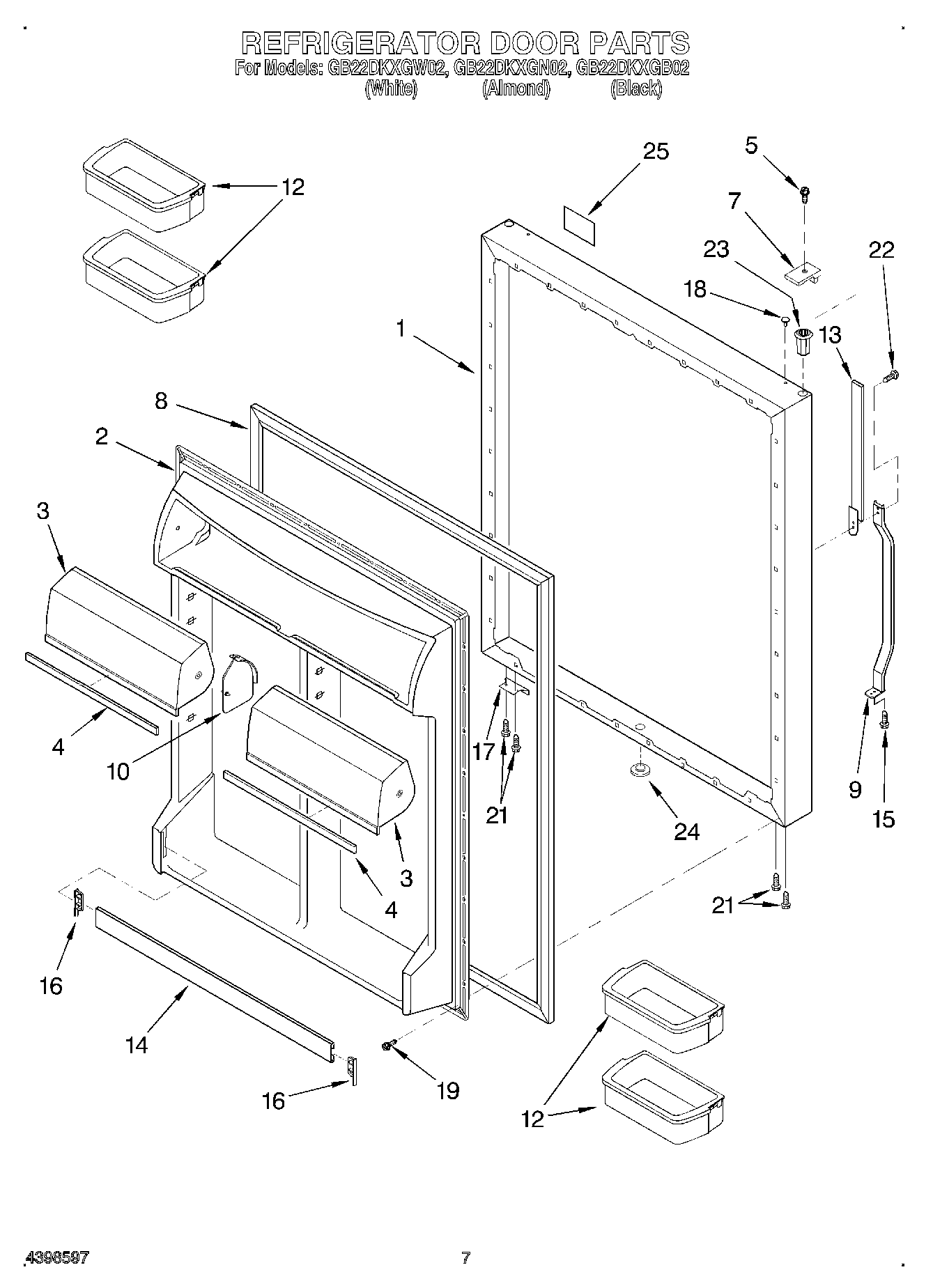

GB22DKXGN02 05 – REFRIGERATOR DOOR

GB22DKXGN02 05 – REFRIGERATOR DOOR

Written by

in

GB22DKXGN02 05 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door Panel (Includes Insulation) (Black)
1Refrigerator Door Panel (Includes Insulation) (Almond)
1Refrigerator Door Panel (Includes Insulation) (White)
2Interior Panel
3Door, Compartment (Right Side)
3Door, Compartment (Left Side)
4Trim, Comp. Door
5WPL 4344435
7Cap, Handle Top (White)
7Cap, Handle Top (Almond)
7Cap, Handle Top (Black)
8Door Gasket, Magnetic (Black)
8WP12550115Q Whirlpool Door Gasket
9Door Handle (White)
9Door Handle (Black)
9Door Handle (Almond)
10WP1118001 Whirlpool Hinge Pin
12Shelf Bin (4)
13Extension, Handle (Black)
13Extension, Handle (Almond)
13Extension, Handle (White)
14Trim, Door Shelf
15Screw
16WPL 4344346
1767003781 Whirlpool Refrigerator Door Stop (BSQ)
17W11708403 Whirlpool Door Stop
1712968202W Whirlpool Refrigerator Door Stop
18Plug, Button (Almond)
18WP12246608 Whirlpool Refrigerator Button
18WP67001130 Whirlpool Refrigerator White Button Plug
19WPL 4343811
21WPW10348409 Whirlpool Screw
22WPL 4344167
23WPL 4344362
23Bushing (Black)
24Plug, Button (Black)
24WPL 4344227
24Plug, Button (Almond)
25Nameplate (Black)
25Nameplate (White)
25Nameplate (Almond)
