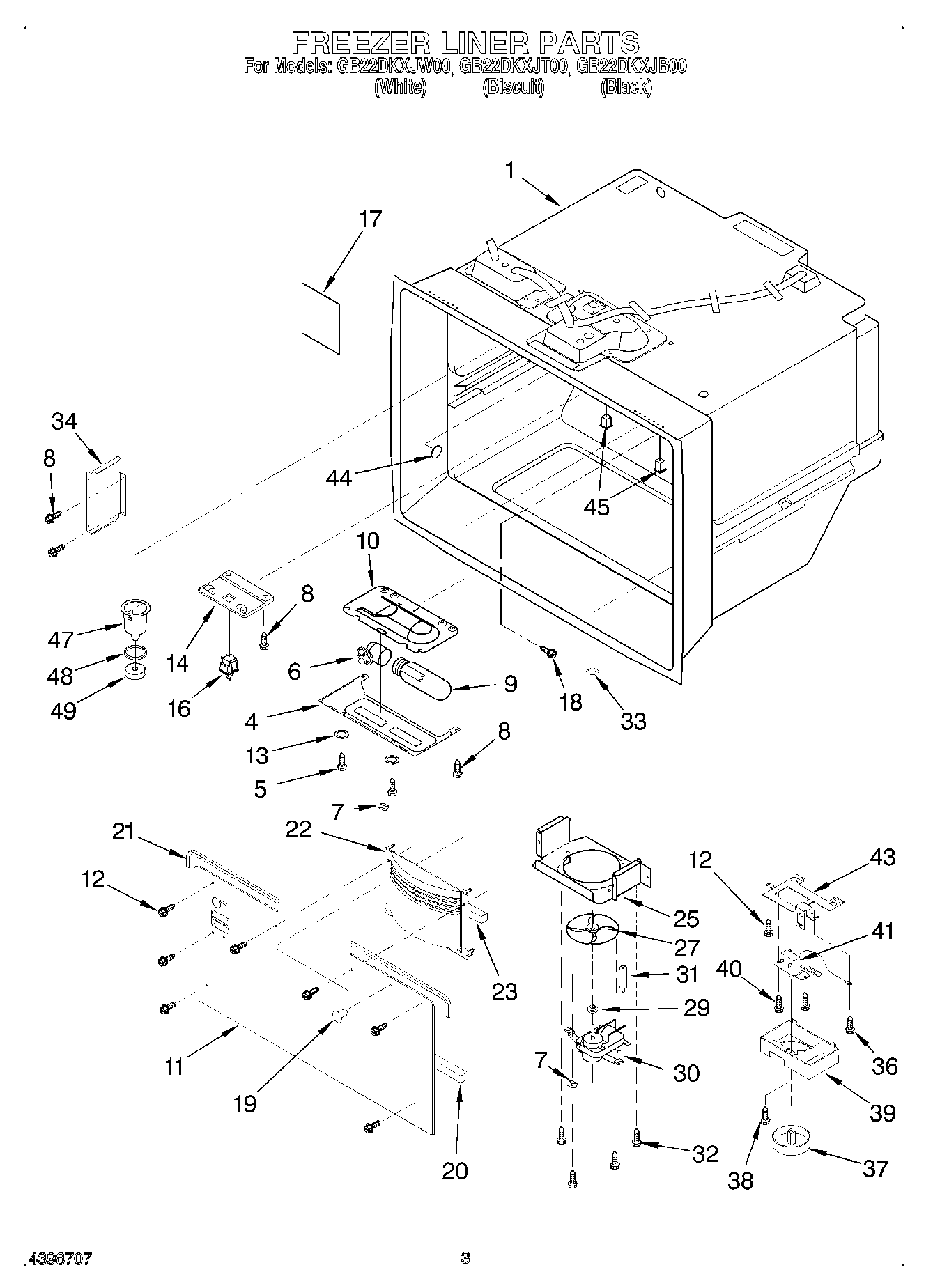

GB22DKXJB00 02 – FREEZER LINER

Products

Position	Product
1	Liner (Not A Seviceable Part)
4	Light Lens
5	Screw
6	Socket (2)
7	WPL 4343682
8	67006425 Whirlpool Refrigerator Screw
9	W10887190 Whirlpool Refrigerator Light Bulb
10	Housing, Frz.Lt.
11	Cover, Evaporator
12	WPL 4344167
13	Washer (4)
14	Cover, Switch
16	W11384469 Whirlpool Door Switch
17	WPL 4344166
18	WP3400805 Whirlpool Screw Assembly
19	Plug, Button
20	Gasket, Bottom
21	Gasket, Top (2)
22	Cover, Fan Shroud
23	Gasket
25	Evap. Fan Shroud
27	BLADE-FAN
29	Grommet
30	WP12013209Q Whirlpool Refrigerator Evaporator
31	Spacer
32	Screw (2)
33	WPL 4344227
34	Duct, Return Air
36	WPL 4343860
37	Knob, Control
38	Screw
39	Cover, Frz. Control
40	WPL 4343861
41	W10752646 Whirlpool Control Thermostat
43	Bracket, Control
44	WPL 4344316
45	Grommet
47	W10815413 Whirlpool Refrigerator Funnel
48	WPM0500703 Whirlpool Refrigerator O-Ring Seal
49	WPB8381501 Whirlpool Refrigerator Door Gasket
