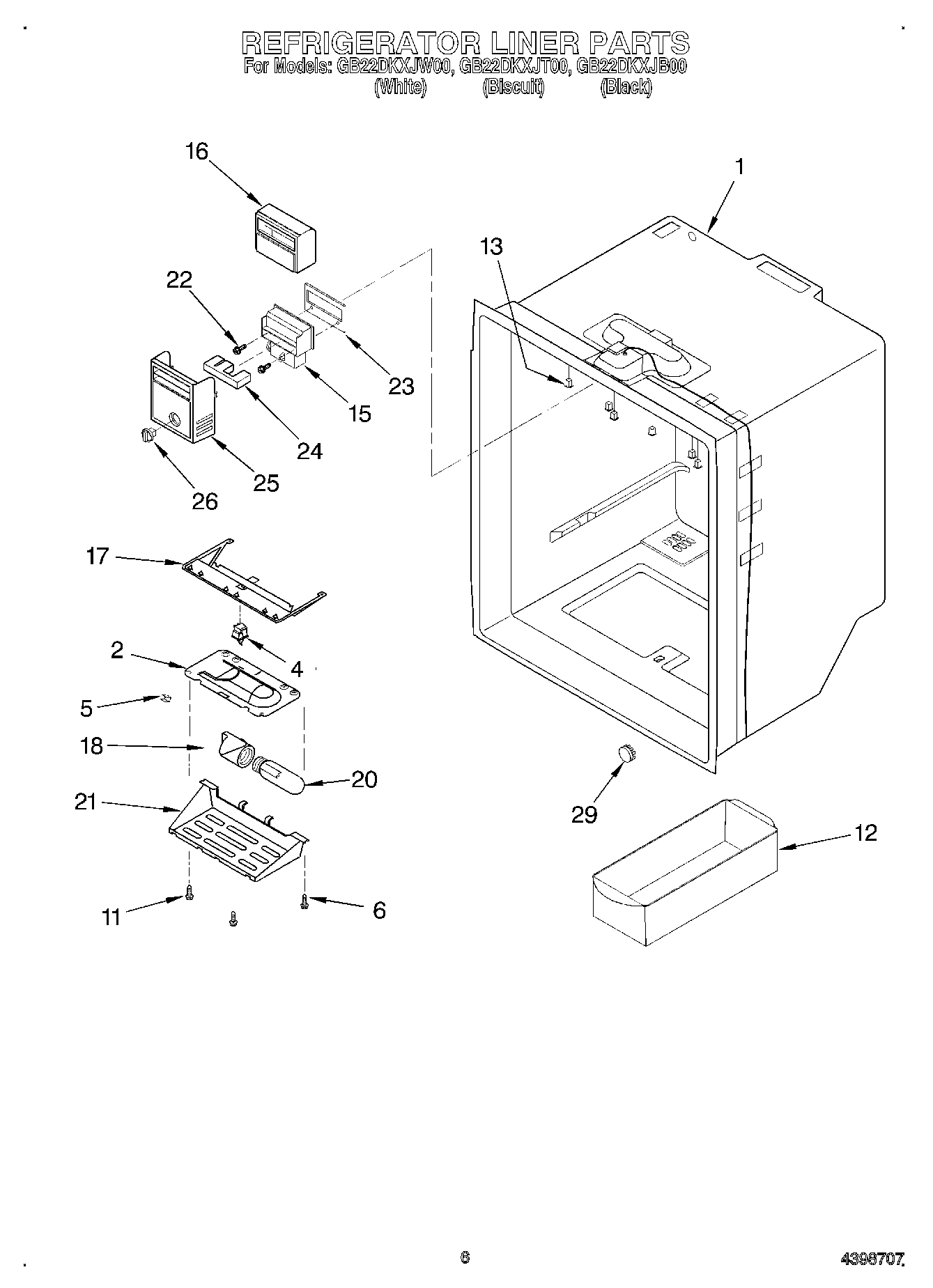

GB22DKXJB00 04 – REFRIGERATOR LINER

GB22DKXJB00 04 – REFRIGERATOR LINER

Written by

in

GB22DKXJB00 04 – REFRIGERATOR LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Housing, Frz.Lt.
4W11384469 Whirlpool Door Switch
5WPL 4343682
6WPL 4344167
1167006425 Whirlpool Refrigerator Screw
12W10136387A Whirlpool Refrigerator Egg Container
13Grommet
15Control, Damper
16Insulation, Damper
17Shield, Light
18Socket (2)
20W10887190 Whirlpool Refrigerator Light Bulb
21Light Lens, Top
22WP98165 Whirlpool Screw
23Gasket, Damper
24Insert
25Cover, Control
26Knob, Control
29Plug, Button
