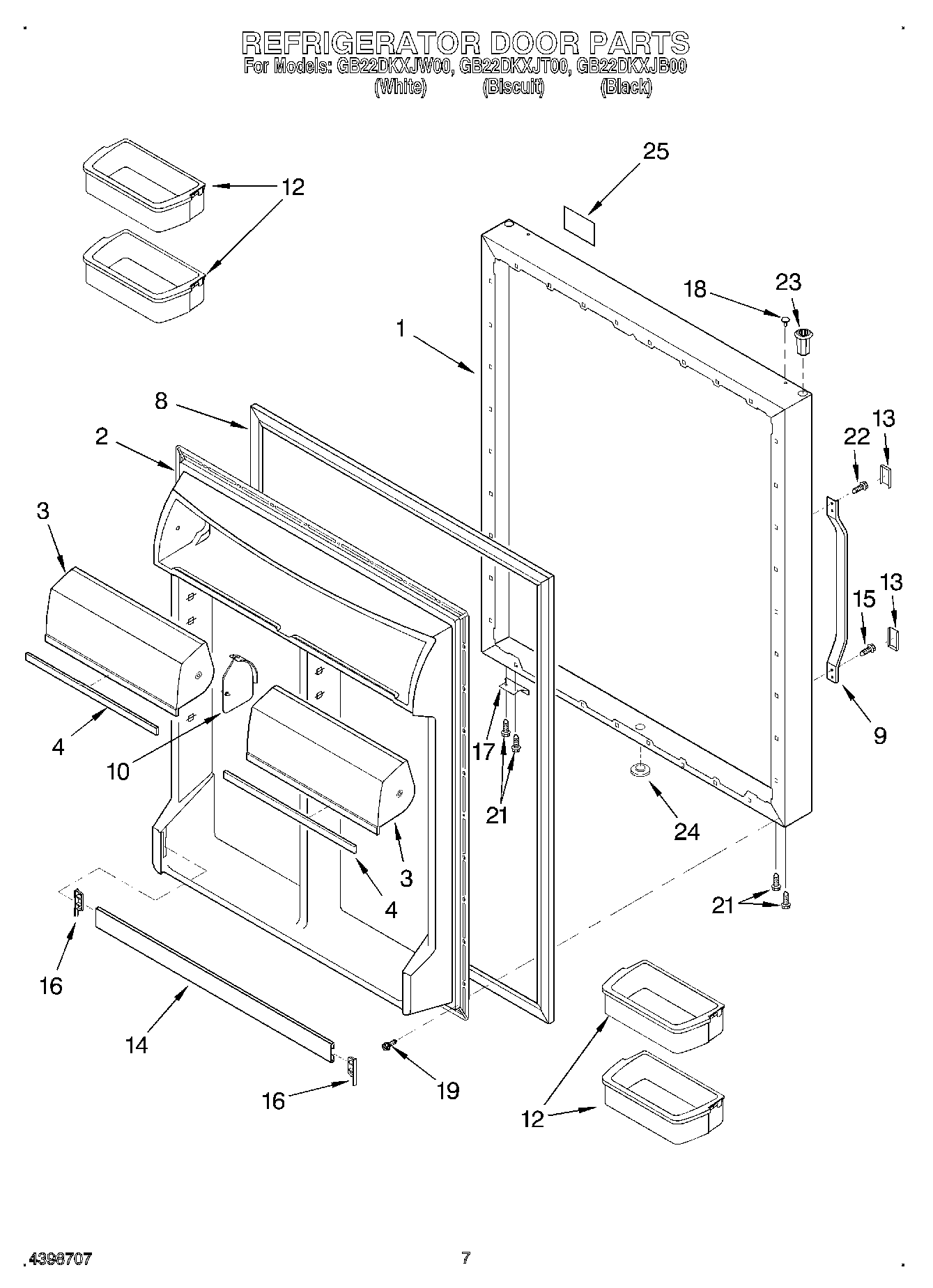

GB22DKXJW00 05 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door Panel (Includes Insulation) (Black)
1	Refrigerator Door Panel (Includes Insulation) (Biscuit)
1	Refrigerator Door Panel (Includes Insulation) (White)
2	Interior Panel
3	Door, Compartment (Left Side)
3	Door, Compartment (Right Side)
4	Trim, Comp. Door
8	Door Gasket, Magnetic (Black)
8	WP12550115Q Whirlpool Door Gasket
9	Door Handle (Biscuit)
9	Door Handle (White)
9	WP2186649B Whirlpool Refrigerator Handle
10	WP1118001 Whirlpool Hinge Pin
12	Shelf Bin (4)
13	Trim, Handle (Black)
13	WP2193353W Whirlpool Refrigerator Trim Handle
13	Trim, Handle (Biscuit)
14	Trim, Door Shelf
15	Screw
16	WPL 4344346
17	12968202W Whirlpool Refrigerator Door Stop
17	W11708403 Whirlpool Door Stop
17	67003781 Whirlpool Refrigerator Door Stop (BSQ)
18	WP12246608 Whirlpool Refrigerator Button
18	W10709784 Whirlpool Refrigerator Handle Plug
18	WP67001130 Whirlpool Refrigerator White Button Plug
19	WPL 4343811
21	WPW10348409 Whirlpool Screw
22	R9800670 Whirlpool Refrigerator Screw Kit
23	WPL 4344362
23	Bushing (Black)
24	WPL 4344227
24	Plug, Button (Biscuit)
24	Plug, Button (Black)
25	Nameplate (Black)
25	Nameplate (White)
25	Nameplate (Biscuit)
