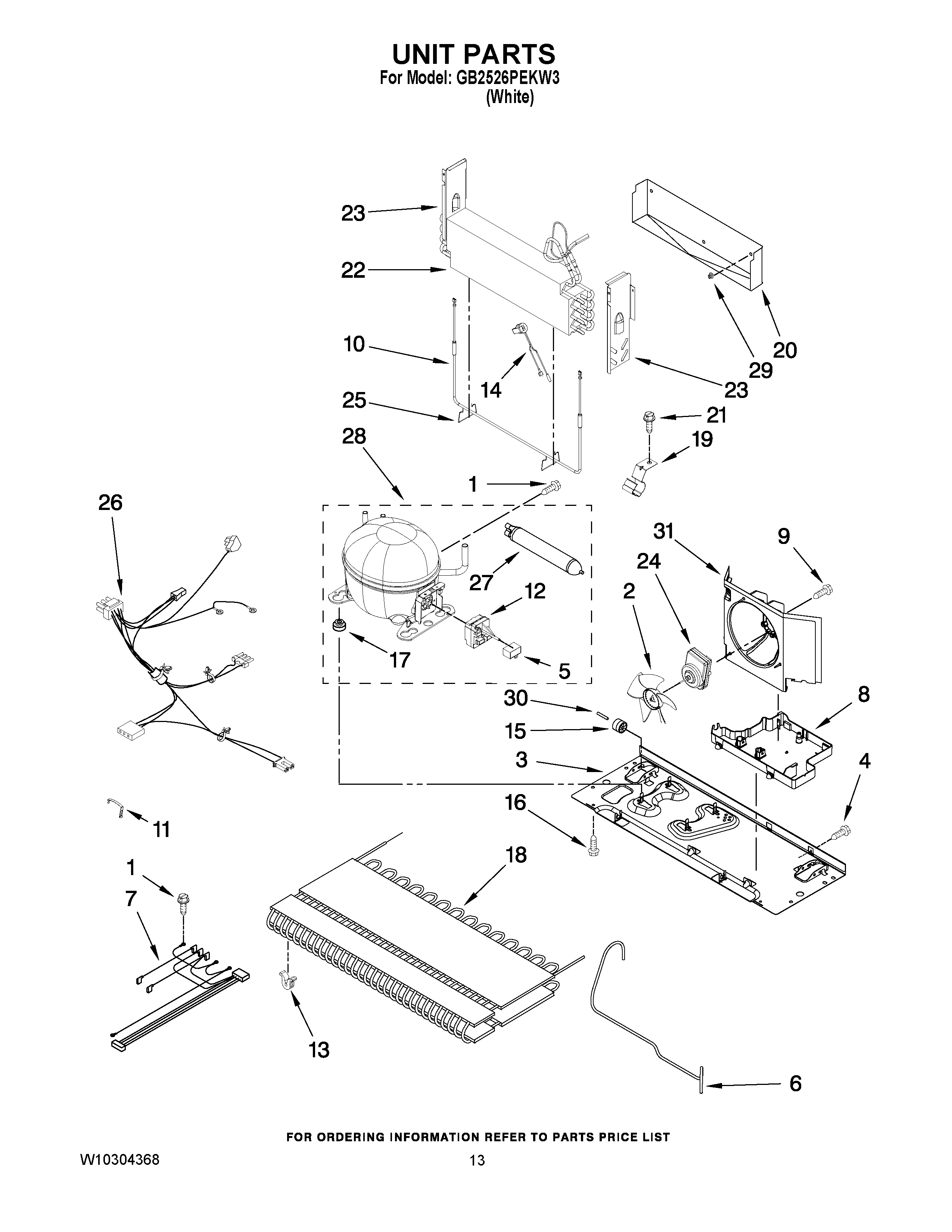

GB2526PEKW3 07 – UNIT PARTS

GB2526PEKW3 07 – UNIT PARTS

Written by

in

GB2526PEKW3 07 – UNIT PARTS

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
NIValve, Access (3/4“)
NIValve, Access (5/8“)
NIValve, Access (1/2“)
NIVALVE, ACCESS (3/8“)
NIValve, Access (5/16“)
NIVALVE, ACCESS (1/4“)
NIMAY 876764
1MAY 12992301
2MAY 12825803
3MAY W10210985
4SCREW (10)
5CAPACITOR
6MAY W10217747
7HARNESS, EVAP. HEATER
8MAY W10296785
9SCREW, SHOULDER
10MAY 12729132
11STRAP, BALE
12START DEVICE
13GROMMET, COND (4)
14Thermostat, Def.
15Roller (2)
16MAY 12992101
17Grommet (4)
18MAY W10135026
19MAY 10547003
20MAY 12225403WD
21MAY 12990701
22MAY 12726403
23DAM (LEFT SIDE)
23Dam (Right Side)
24MAY 12825102
25W11673433 Whirlpool Clip
26MAY W10273559
27Drier
28MAY W10223234
29MAY 10623002
30Axle, Roller (2)
31MAY W10189187
