GB2526PEKW4 03 – FREEZER LINER PARTS – Aparts

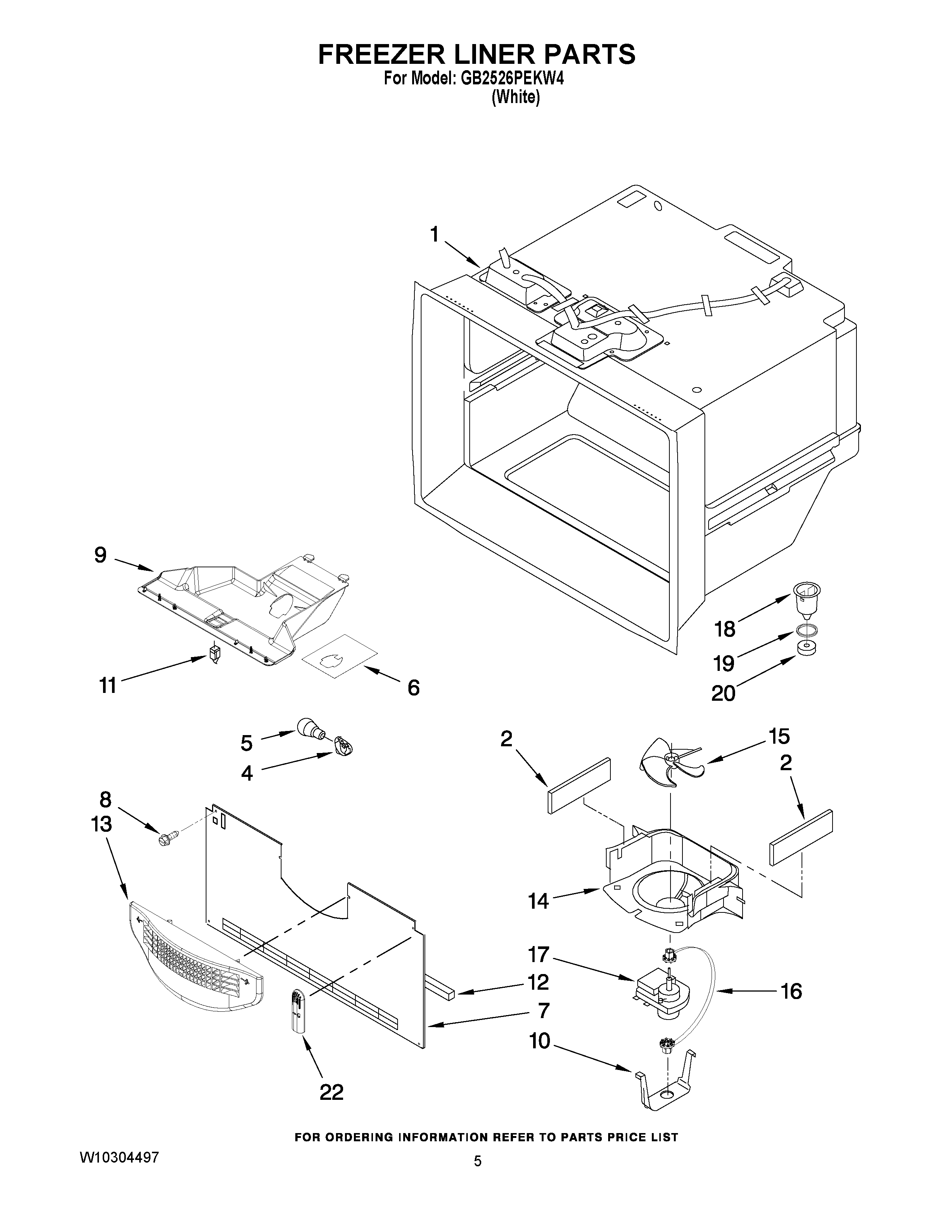

GB2526PEKW4 03 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
4	MAY W10134764V
5	MAY A0282808V
6	FOIL-FZ LIGHT
7	MAY 12226114
8	SCREW (10)
9	MODULE-FZ LIGHT
10	CLIP, EVAP. MOTOR
11	MAY 12466105
12	Gasket, Bottom
13	Grille, Fz Air
14	SHROUD, EVAP.FAN
15	Blade, Fan (Evaporator)
16	MAY W10121318
17	MAY 10449516
18	MAY D7753903
19	MAY M0500703
20	Gasket
22	MAY 12815301
