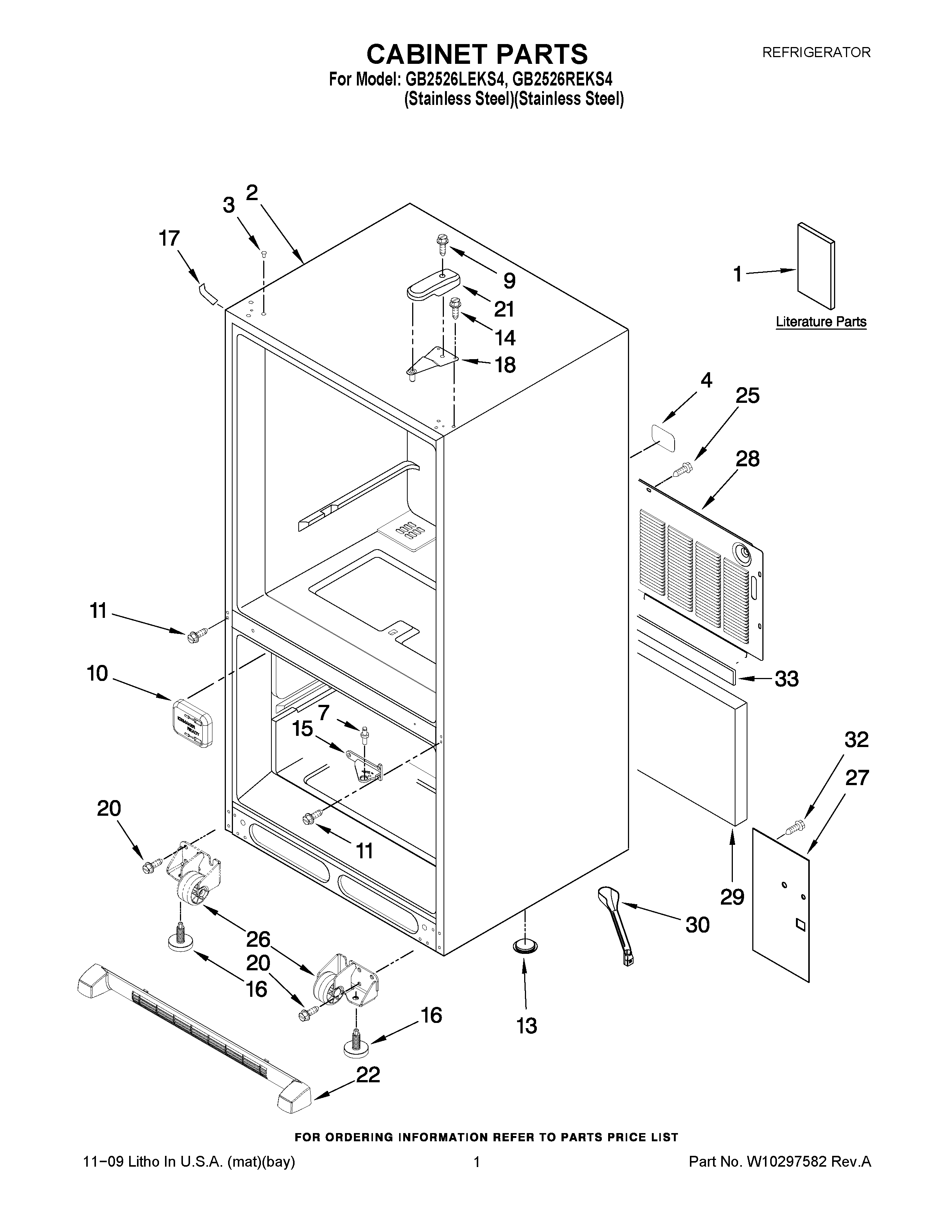

GB2526REKS4 01 – CABINET PARTS

Products

Position	Product
1	Owners Manual
1	MAY W10239599
2	LINER (NOT A SERVICEABLE PART)
3	MAY M0310731
4	LABEL-FILL TUBE
7	MAY 10351006
9	MAY 12992602
10	COVER-FILL TUBE
11	SCREW (6)
13	A3076901 Whirlpool Refrigerator Plug
14	SCREW (6)
15	MAY 12607104ED
16	Brake, Foot
17	COVER, CORNER (BLACK)
18	Hinge, Top
20	Screw (8)
21	COVER, HINGE(BLACK)
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK)
25	SCREW (10)
26	ROLLER ASSY. (FRONT) (LEFT)
26	ROLLER ASSY. (FRONT) (RIGHT)
27	MAY W10217701
28	MAY W10212541
29	Insulation, Sound
30	MAY W10210988
32	MAY 12990701
33	MAY B5759655
