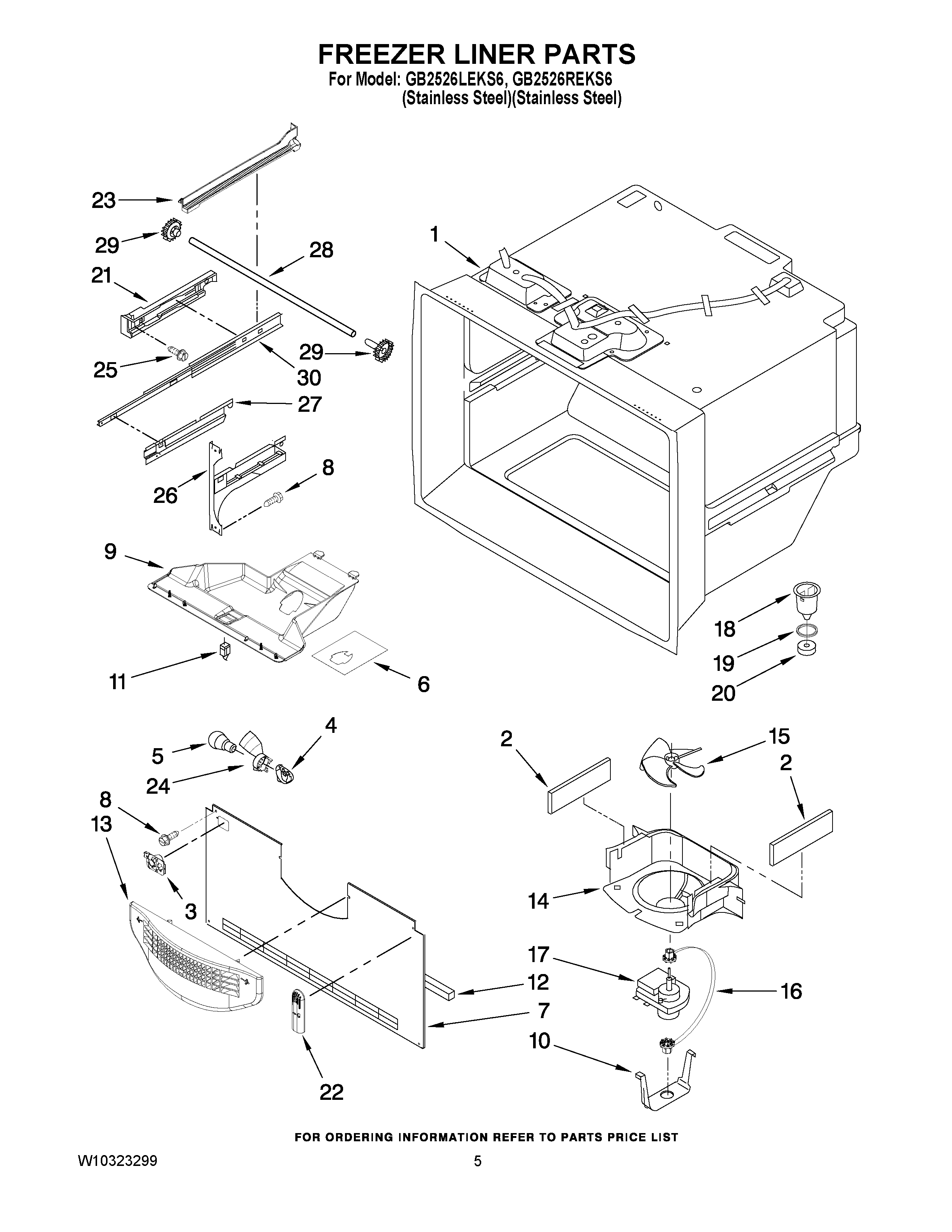

GB2526REKS6 03 – FREEZER LINER PARTSadmin2025-04-26T08:58:15+00:00GB2526REKS6 03 – FREEZER LINER PARTS
Products
| Position | Product |
|---|
| 1 | LINER (NOT A SERVICEABLE PART) |
| 2 | Gasket, Bottom |
| 3 | MAY 12932103 |
| 4 | MAY W10134764V |
| 5 | MAY A0282808V |
| 6 | FOIL-FZ LIGHT |
| 7 | MAY W10308418 |
| 8 | SCREW (10) |
| 9 | MODULE-FZ LIGHT |
| 10 | CLIP, EVAP. MOTOR |
| 11 | MAY 12466114 |
| 12 | Gasket, Bottom |
| 13 | Grille, Fz Air |
| 14 | SHROUD, EVAP.FAN |
| 15 | Blade, Fan (Evaporator) |
| 16 | MAY W10121318 |
| 17 | MAY 10449516 |
| 18 | MAY D7753903 |
| 19 | MAY M0500703 |
| 20 | Gasket |
| 21 | ADAPTER, SLIDE (RIGHT HAND) |
| 21 | ADAPTER, SLIDE (LEFT HAND) |
| 22 | MAY 12815301 |
| 23 | RACK-SIDE (LEFT) |
| 23 | RACK-SIDE (RIGHT) |
| 24 | SHROUD-LGHT SOCKET |
| 25 | Screw (6) |
| 26 | BRACKET, DOOR (RIGHT) |
| 26 | BRACKET, DOOR (LEFT) |
| 27 | CRADLE-BASKET (LEFT HAND) |
| 27 | CRADLE-BASKET (RIGHT HAND) |
| 28 | SHAFT |
| 29 | 12002497 Whirlpool Refrigerator Drawer Gear Kit |
| 30 | MAY W10120018 |
