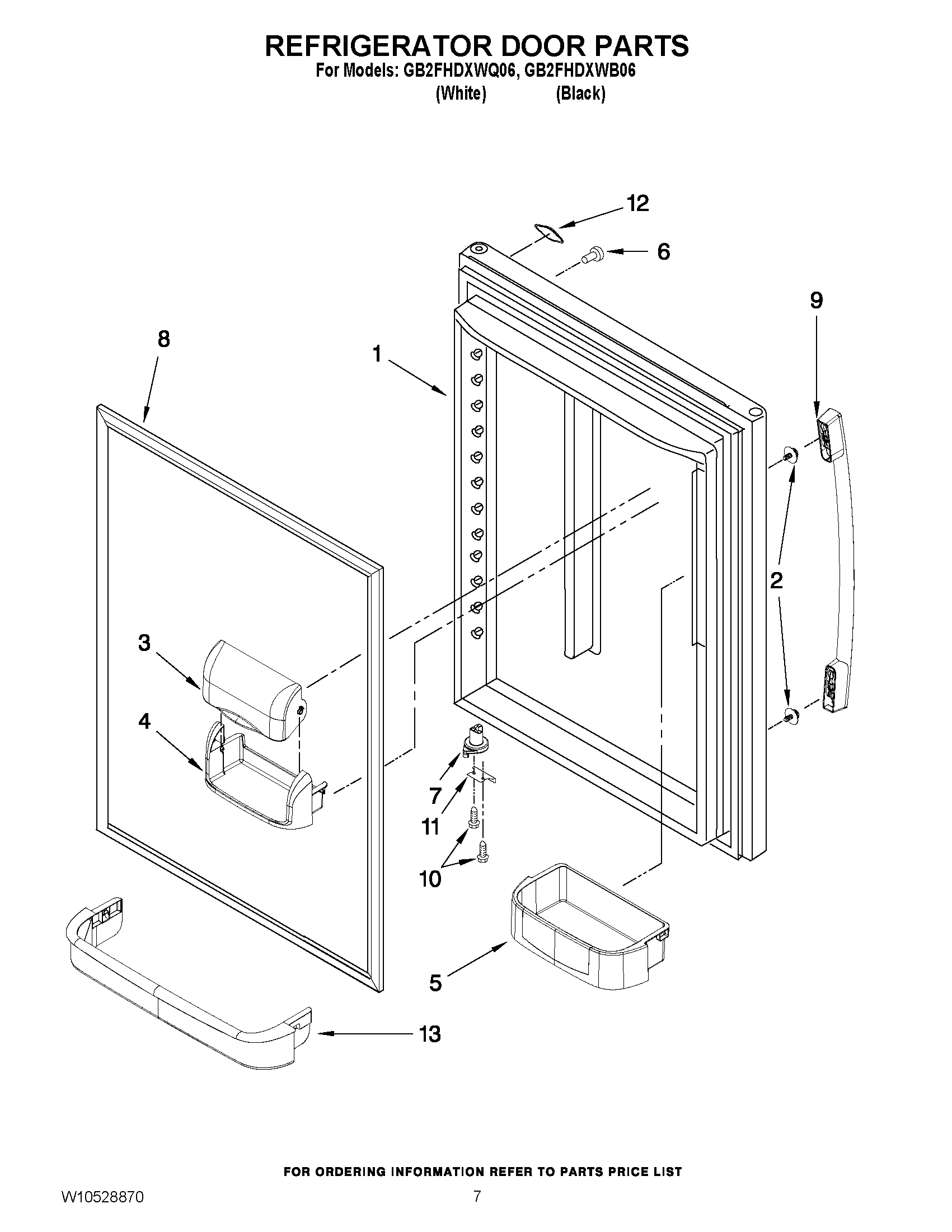

GB2FHDXWB06 05 – REFRIGERATOR DOOR PARTS

GB2FHDXWB06 05 – REFRIGERATOR DOOR PARTS

Written by

in

GB2FHDXWB06 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
113109401WQ Whirlpool Refrigerator FIP Door WH
113109401BQ Whirlpool Refrigerator DOR Foam In Place Black
2WPW10288153 Whirlpool Refrigerator Screw
3WP67003637 Whirlpool Dairy Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6WP67001130 Whirlpool Refrigerator White Button Plug
6WP12246608 Whirlpool Refrigerator Button
7WP67003639 Whirlpool Refrigerator Closer
7WP67003638 Whirlpool Closing Cam
8WPW10436248 Whirlpool Door Gasket
8W10443313 Whirlpool Door Gasket
9W11351146 Whirlpool Refrigerator Handle
9WPW10222984K Whirlpool Refrigerator Handle Assembly
10WP98165 Whirlpool Screw
11W11708403 Whirlpool Door Stop
1112968202W Whirlpool Refrigerator Door Stop
12WPW10391355 Whirlpool Refrigerator Nameplate
12WPW10393265 Whirlpool Refrigerator Nameplate
1367001019 Whirlpool Door Shelf Trim
