GB2SHKXKQ00 05 – REFRIGERATOR DOOR

GB2SHKXKQ00 05 – REFRIGERATOR DOOR

Written by

in

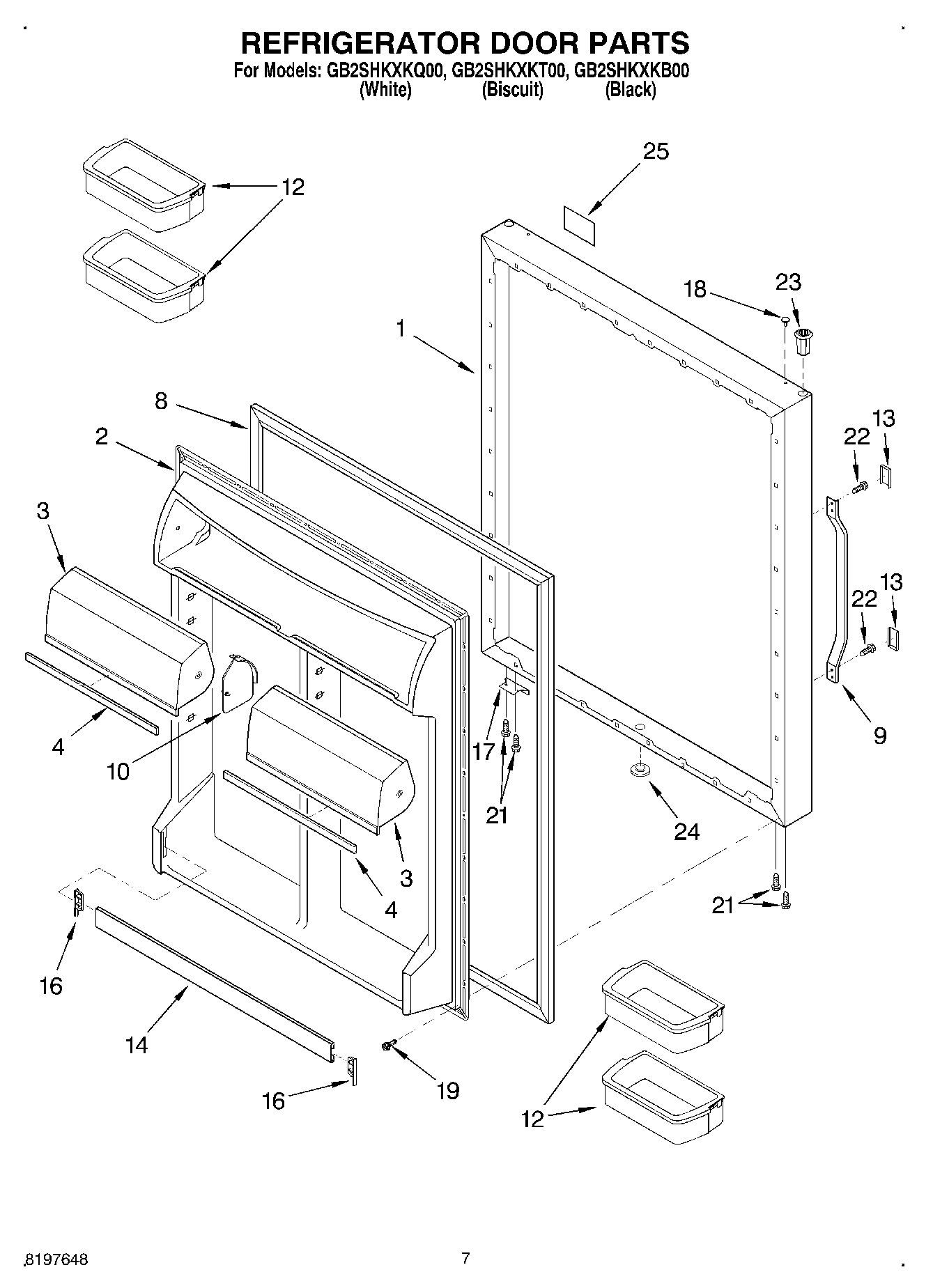

GB2SHKXKQ00 05 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door Panel (Includes Insulation) (Biscuit)
1Refrigerator Door Panel (Includes Insulation) (Black)
1Refrigerator Door Panel (Includes Insulation) (White)
2Interior Panel
3Door, Compartment (Left Side)
3Door, Compartment (Right Side)
4Trim, Comp. Door
8Door Gasket, Magnetic (Black)
8WP12550115Q Whirlpool Door Gasket
9Door Handle (Biscuit)
9Door Handle (White)
9WP2186649B Whirlpool Refrigerator Handle
10WP1118001 Whirlpool Hinge Pin
12Shelf Bin (4)
13Trim, Handle (Black)
13WP2193353W Whirlpool Refrigerator Trim Handle
13Trim, Handle (Biscuit)
14Trim, Door Shelf
16WPL 4344346
17W11708403 Whirlpool Door Stop
1767003781 Whirlpool Refrigerator Door Stop (BSQ)
1712968202W Whirlpool Refrigerator Door Stop
18W10709784 Whirlpool Refrigerator Handle Plug
18WP12246608 Whirlpool Refrigerator Button
18WP67001130 Whirlpool Refrigerator White Button Plug
19WPL 4343811
21WPW10348409 Whirlpool Screw
22R9800670 Whirlpool Refrigerator Screw Kit
23WPL 4344362
23Bushing (Black)
24WPL 4344227
24Plug, Button (Biscuit)
24Plug, Button (Black)
25Nameplate (Black)
25Nameplate (White)
25Nameplate (Biscuit)
