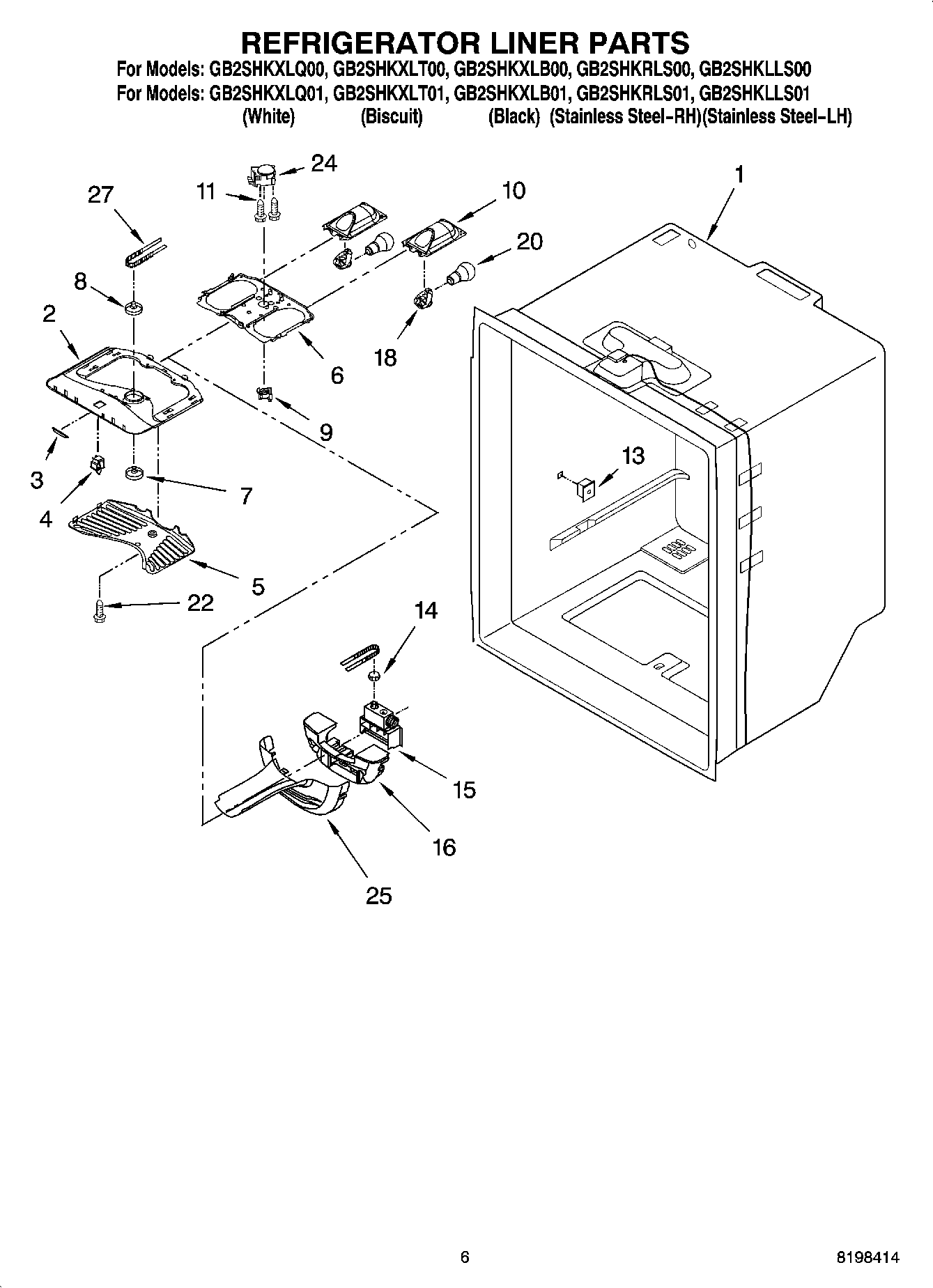

GB2SHKXLQ00 04 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Housing, Ref. Light
3WP67002085 Whirlpool Refrigerator Housing
4W11384469 Whirlpool Door Switch
5Cover, Ref. Light
7Knob, Damper
867001033 Whirlpool Refrigerator Knob Gear
967001034 Whirlpool Refrigerator Tensioner Belt
10Housing, Light
11Screw (2)
13Grommet, Screw
14Gear, Damper
15Control, Damper
16Insulation, Damper
18W11447232 Whirlpool Refrigerator Socket
20W11679940 Whirlpool Refrigerator Light Bulb Assembly
22WP98165 Whirlpool Screw
24WP67001036 Whirlpool Refrigerator Defrost Timer
25Cover, Control
27Belt, Damper
