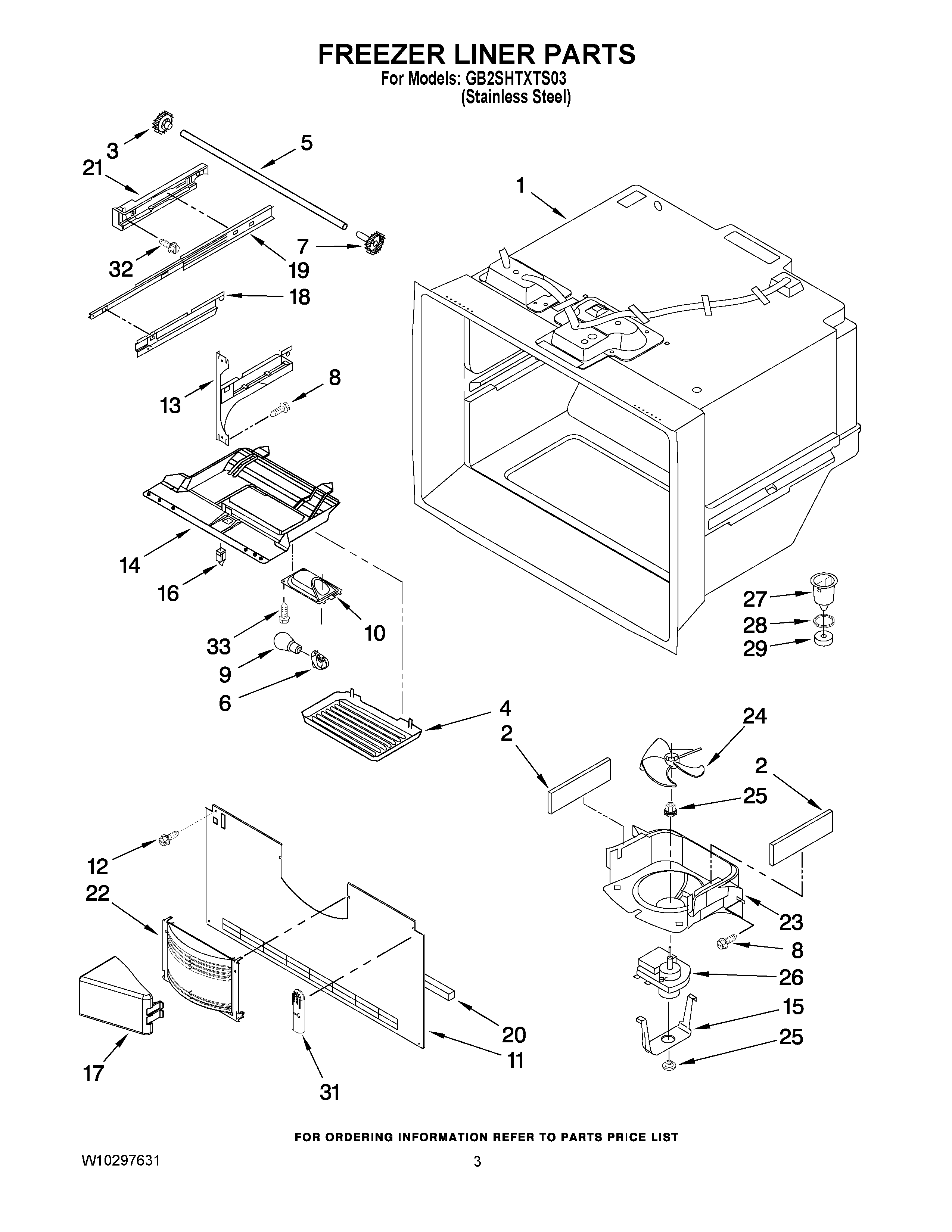

GB2SHTXTS03 02 – FREEZER LINER PARTS

GB2SHTXTS03 02 – FREEZER LINER PARTS

Written by

in

GB2SHTXTS03 02 – FREEZER LINER PARTS

Products

PositionProduct
NIHarness, Lights (Freezer)
1CABINET (NOT A SERVICEABLE PART)
2W10856123 Whirlpool Refrigerator Gasket
4Cover, Light
5W11715937 Whirlpool Shaft
6W11447232 Whirlpool Refrigerator Socket
712002497 Whirlpool Refrigerator Drawer Gear Kit
8WP33001882 Whirlpool Screw
9W11679940 Whirlpool Refrigerator Light Bulb Assembly
10W11702858 Whirlpool Housing
11W10308415 Whirlpool Refrigerator Evaporator Cover
1267006425 Whirlpool Refrigerator Screw
13WPW10330993 Whirlpool Refrigerator Bracket
13WPW10330991 Whirlpool Refrigerator Bracket
1467003906 Whirlpool Refrigerator Control Module
15CLIP, EVAPORATOR MOTOR
16W11396033 Whirlpool Refrigerator Rocker Switch
17W10157765 Whirlpool Refrigerator Deflector
18WPW10280608 Whirlpool Refrigerator Bracket
18WPW10280613 Whirlpool Refrigerator Bracket
19W11658402 Whirlpool Drawer Slide Rail
20W11159742 Whirlpool Refrigerator Gasket
21WPW10284681 Whirlpool Refrigerator Bracket
21ADAPTER, SLIDE (LEFT)
22WPW10175909 Whirlpool Grille Assembly
23WPW10167023 Whirlpool Refrigerator Shroud
24WP2169142 Whirlpool Fan Blade
25W10121318 Whirlpool Refrigerator Grommet
26WPW10128551 Whirlpool Evaporator Fan Motor
27W10815413 Whirlpool Refrigerator Funnel
28WPM0500703 Whirlpool Refrigerator O-Ring Seal
29WPB8381501 Whirlpool Refrigerator Door Gasket
31WP67003924 Whirlpool Refrigerator Cover
32WP489474 Whirlpool Refrigerator Screw
33WP90767 Whirlpool Screw
