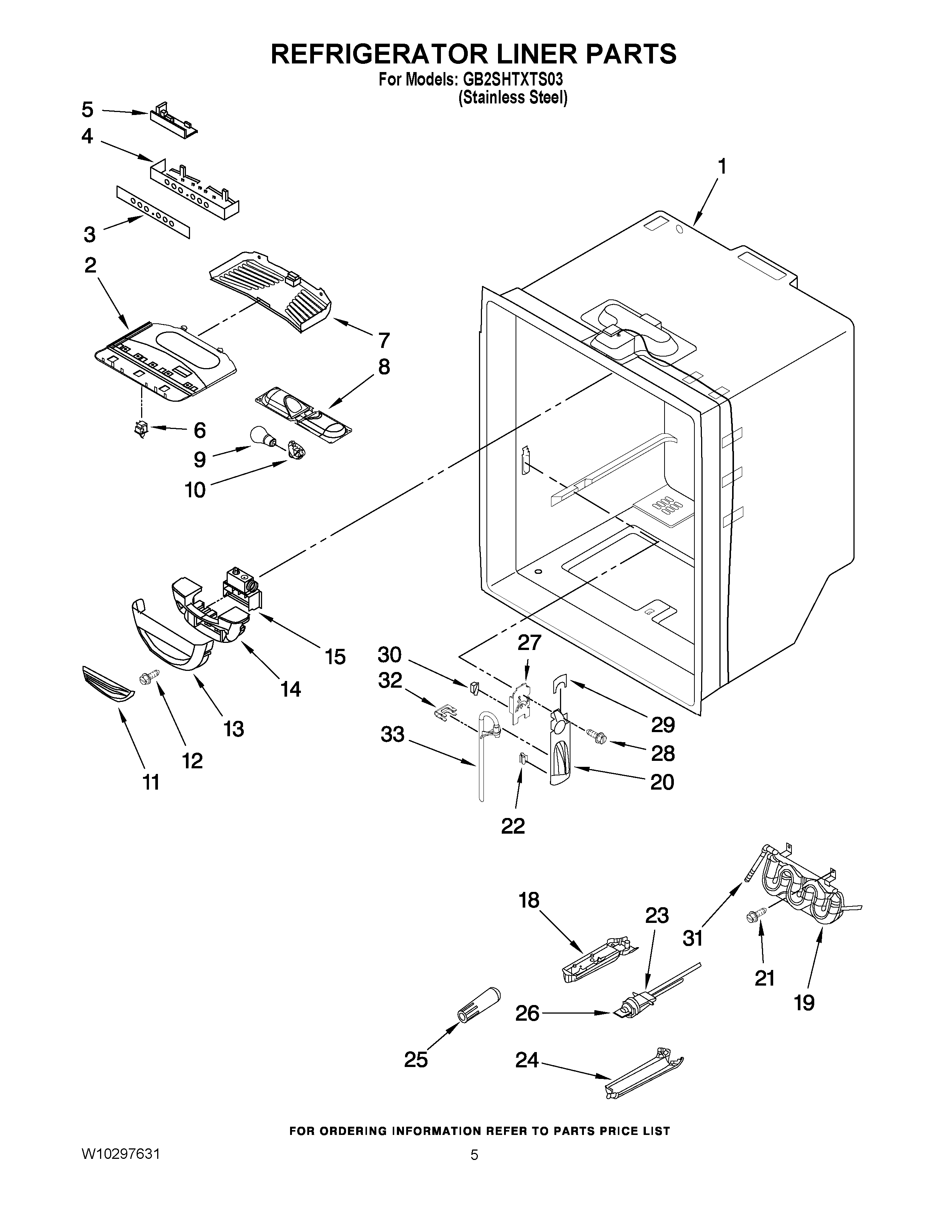

GB2SHTXTS03 03 – REFRIGERATOR LINER PARTS

GB2SHTXTS03 03 – REFRIGERATOR LINER PARTS

Written by

in

GB2SHTXTS03 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
NIW11619328 Whirlpool Wire Harness
1CABINET (NOT A SERVICEABLE PART)
2BRACKET, CONTROL AND LIGHTS
3OVERLAY
4WPW10464769 Whirlpool Refrigerator Housing
5WPW10503278 Whirlpool Refrigerator Electronic Control Board
6W11384469 Whirlpool Door Switch
7W11284721 Whirlpool Refrigerator Cover
812806601 Whirlpool Refrigerator Light Housing
9W11679940 Whirlpool Refrigerator Light Bulb Assembly
10W11447232 Whirlpool Refrigerator Socket
1167003900 Whirlpool Refrigerator Insert Damper Cover
12WP400021-1 Whirlpool Screw
13WP12806701 Whirlpool Refrigerator Box Cover
14INSULATION
15WPW10196393 Whirlpool Control Damper
18PLATE-FIL
19TANK, WATER
20FACADE, DISP.
2167006425 Whirlpool Refrigerator Screw
22CLIP, FACADE (2)
23W11346623 Whirlpool Refrigerator Water Filter Head
24WP12568001 Whirlpool Filter Cover
25everydrop® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
26W11395888 Whirlpool Refrigerator Bypass Filter Cap
2712707303SP Whirlpool Refrigerator Plate
28WP98165 Whirlpool Screw
29W11519867 Whirlpool Refrigerator Cover
30WP12575501 Whirlpool Refrigerator Micro Switch
31WP2300868 Whirlpool Refrigerator Fitting
3267002816 Whirlpool Refrigerator Waterline Clip
33W11677725 Whirlpool Refrigerator Guide
