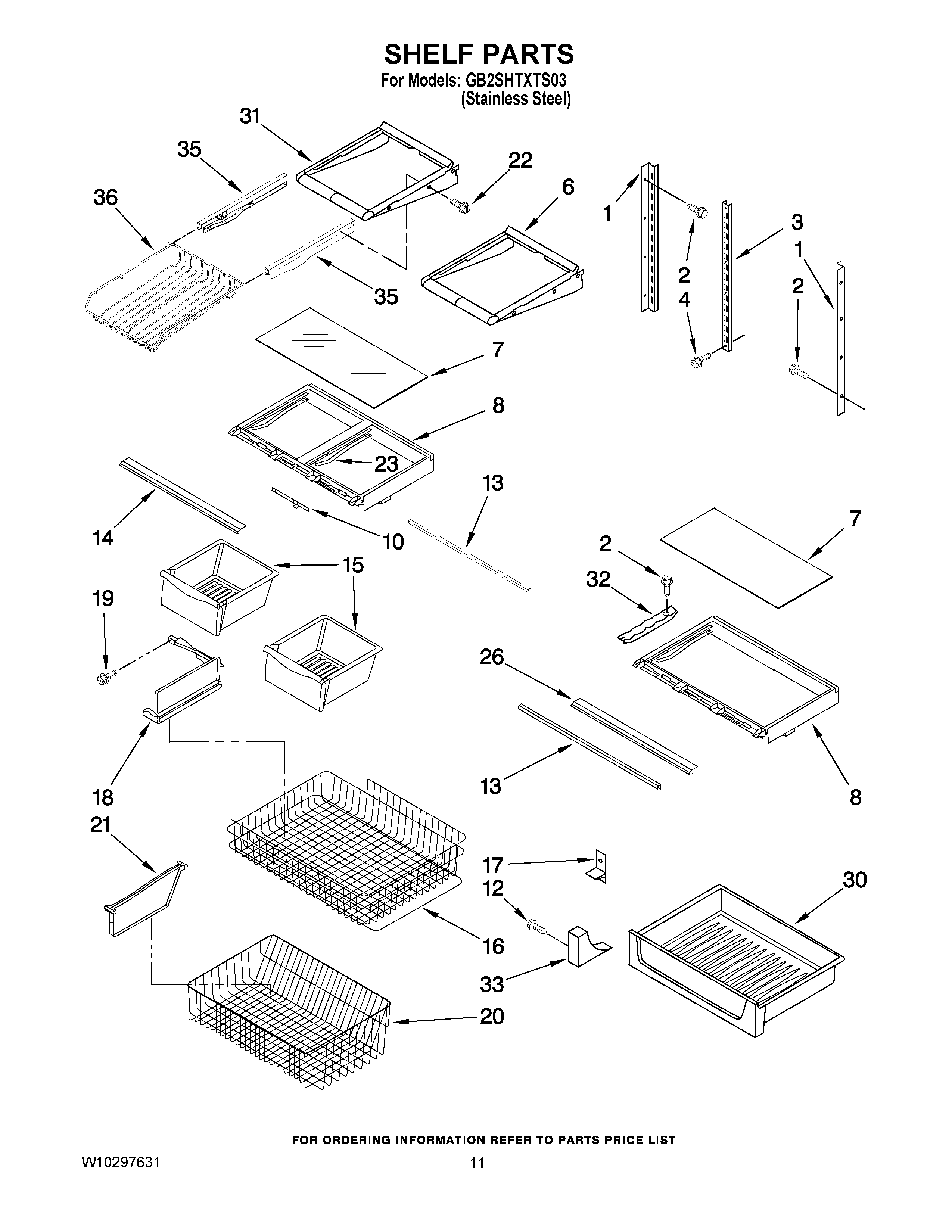

GB2SHTXTS03 06 – SHELF PARTS

GB2SHTXTS03 06 – SHELF PARTS

Written by

in

GB2SHTXTS03 06 – SHELF PARTS

Products

PositionProduct
1W10251969 Whirlpool Refrigerator Ladder
3W10273463 Whirlpool Refrigerator Ladder
4W10709795 Whirlpool Refrigerator Screw
6W11402521 Whirlpool Refrigerator Glass Shelf
7WP67006878 Whirlpool Refrigerator Crisper Glass
8WPW10568041 Whirlpool Refrigerator Crisper Shelf Drawer Cover
10SLIDE
1267006425 Whirlpool Refrigerator Screw
14WPW10231482 Whirlpool Refrigerator Shelf Trim
15WP67002633 Whirlpool Crisper Pan
16BASKET, FREEZER (UPPER)
17WP67001716 Whirlpool Refrigerator Shelf Support Clip Ladder Hook
18DIVIDER, UPPER BASKET
19SCREW
20BASKET, FREEZER (LOWER)
21DIVIDER, LOWER BASKET
22SCREW
23RAIL-CENTR CRISPER
26WP12227303WD Whirlpool Refrigerator Crisper Brace
30W10328327 Whirlpool Refrigerator Snack Pan
31SHELF
32WP67001719 Whirlpool Refrigerator Track
33WP67001722 Whirlpool Refrigerator Support
33WP67001721 Whirlpool Refrigerator Support
35WP67001054 Whirlpool Left Glide
35WP67001053 Whirlpool Drawer Glide
36RACK, CAN
