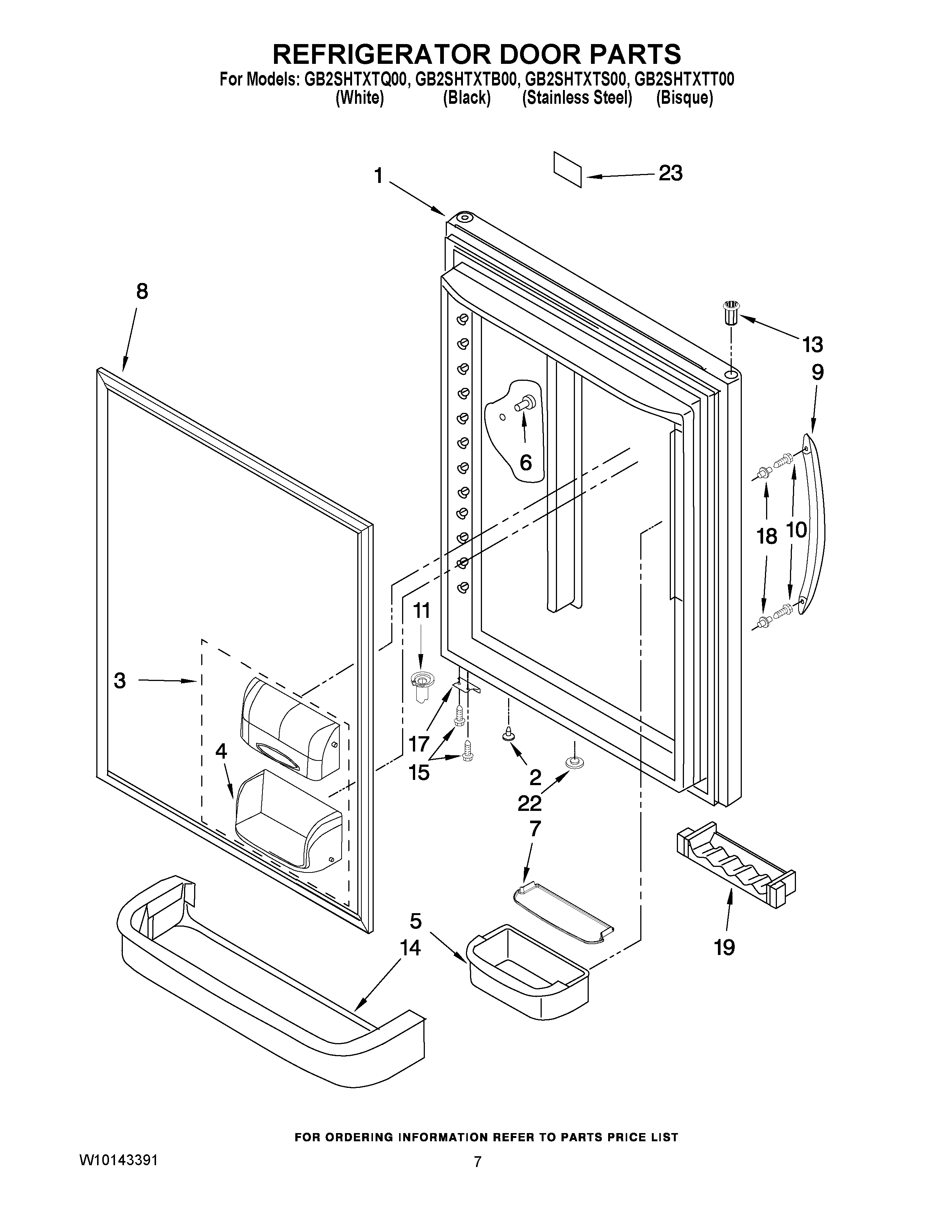

GB2SHTXTT00 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR (W/ INSULATION) (STAINLESS)
1	Refrigerator Door (w/ Insulation) (Bisque)
1	Refrigerator Door (w/ Insulation) (White)
1	12658533BQ Whirlpool Refrigerator FIP Door
3	WP12744905 Whirlpool Refrigerator Compressor Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6	WP12246608 Whirlpool Refrigerator Button
6	WP67001130 Whirlpool Refrigerator White Button Plug
7	Mat (Gripper)
8	W10443313 Whirlpool Door Gasket
8	WPW10436248 Whirlpool Door Gasket
9	WP2319727W Whirlpool Refrigerator Handle
9	Handle, Door (Stainless Steel)
9	Handle (Biscuit)
9	WP2319727B Whirlpool Refrigerator Handle
10	WP3387230 Whirlpool Screw
11	WP67003639 Whirlpool Refrigerator Closer
11	67003781 Whirlpool Refrigerator Door Stop (BSQ)
11	WP67003638 Whirlpool Closing Cam
13	WP67004977 Whirlpool Refrigerator Door Hinge Bushing
13	67004978 Whirlpool Refrigerator Black Door Bushing
14	Retainer, Door
15	WP98165 Whirlpool Screw
17	12968202W Whirlpool Refrigerator Door Stop
17	W11708403 Whirlpool Door Stop
18	Stud, Handle
19	WP67005626 Whirlpool Refrigerator Can Caddy
22	67004838 Whirlpool Refrigerator Button Vent Plug
22	10712401 Whirlpool Refrigerator Vent Plug (White)
23	Nameplate
