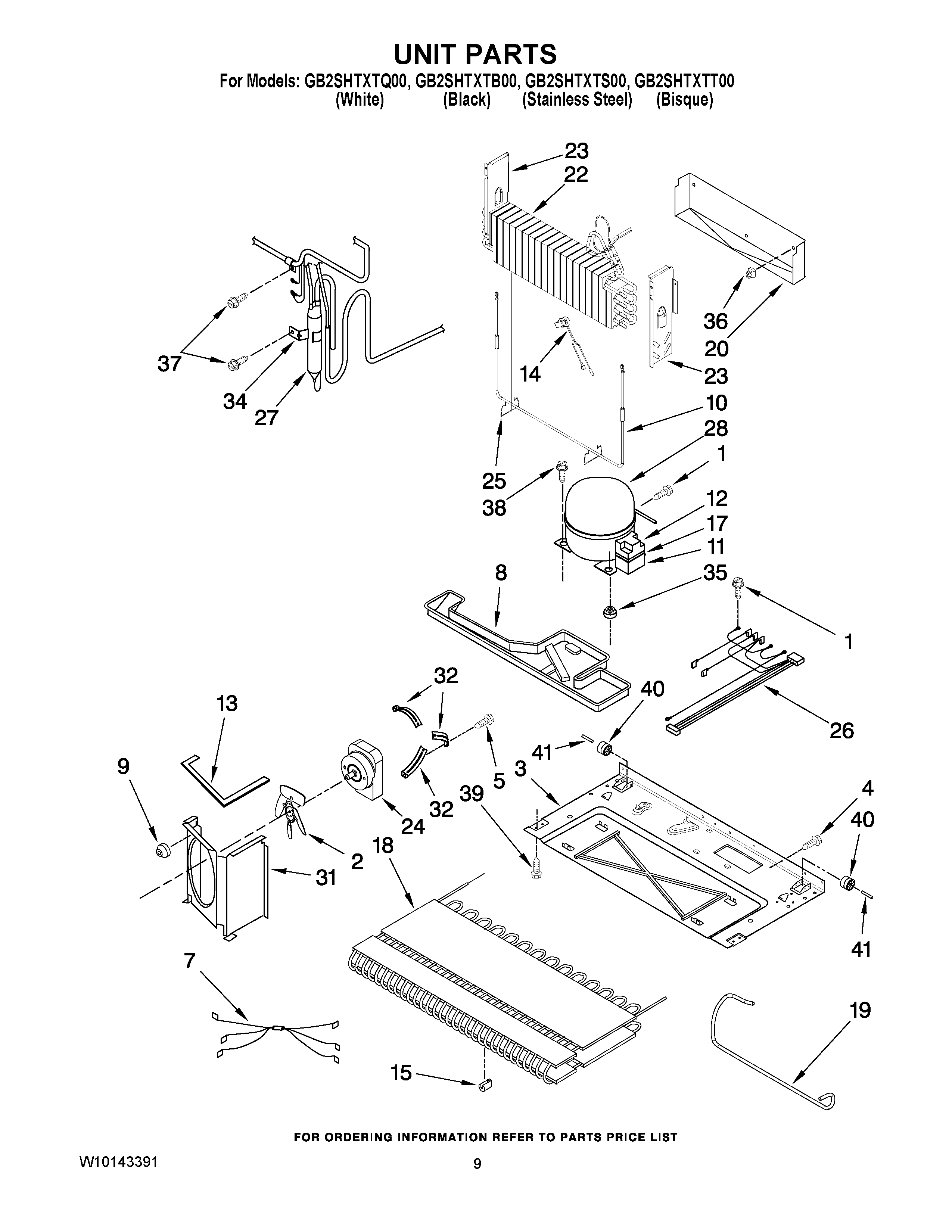

GB2SHTXTT00 05 – UNIT PARTS

Products

Position	Product
NI	978027 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	REFRIGERANT CHARGE 5.00 Ozs. (R-134A)
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
2	W10156818 Whirlpool Refrigerator Fan Blade
3	Basepan
4	12992301 Whirlpool Refrigerator Screw
5	WP67004954 Whirlpool Refrigerator Screw
7	Harness, Evap Heater
8	WP12579803 Whirlpool Refrigerator Drain Pan
9	Grommet (3)
10	WP67001794 Whirlpool Refrigerator Defrost Heater
11	CAPACITOR (SEE ITEM No.12)
12	W10613606 Whirlpool Refrigerator Start Device Relay Overload
13	WP854334 Whirlpool Air Conditioner Sealing Strip
14	WP67003426 Whirlpool Refrigerator Thermostat
15	67005680 Whirlpool Refrigerator Condenser Grommet
17	Clip, Capacitor
18	WP67006132 Whirlpool Refrigerator Condenser
19	Tube, Discharge
20	WPW10292802 Whirlpool Refrigerator Drip Tray
22	12001919 Whirlpool Refrigerator Evaporator Replacement Kit
23	Dam (Right Side)
23	Dam (Left Side)
24	Motor, Fan
25	W11673433 Whirlpool Clip
26	67004955 Whirlpool Refrigerator MC Harness
27	WPW10143759 Whirlpool Dryer Filter
28	W10160407 Whirlpool Refrigerator Compressor
31	Shroud
32	WP67004953 Whirlpool Refrigerator Bracket
34	10547003 Whirlpool Refrigerator Dryer Clip
35	67003493 Whirlpool Refrigerator Compressor Grommet
36	CLIP, EVAP (2)
37	WP33001882 Whirlpool Screw
38	12846902 Whirlpool Refrigerator Screw
39	Screw (4)
40	WP67005149 Whirlpool Roller
41	67006434 Whirlpool Axle Pin
