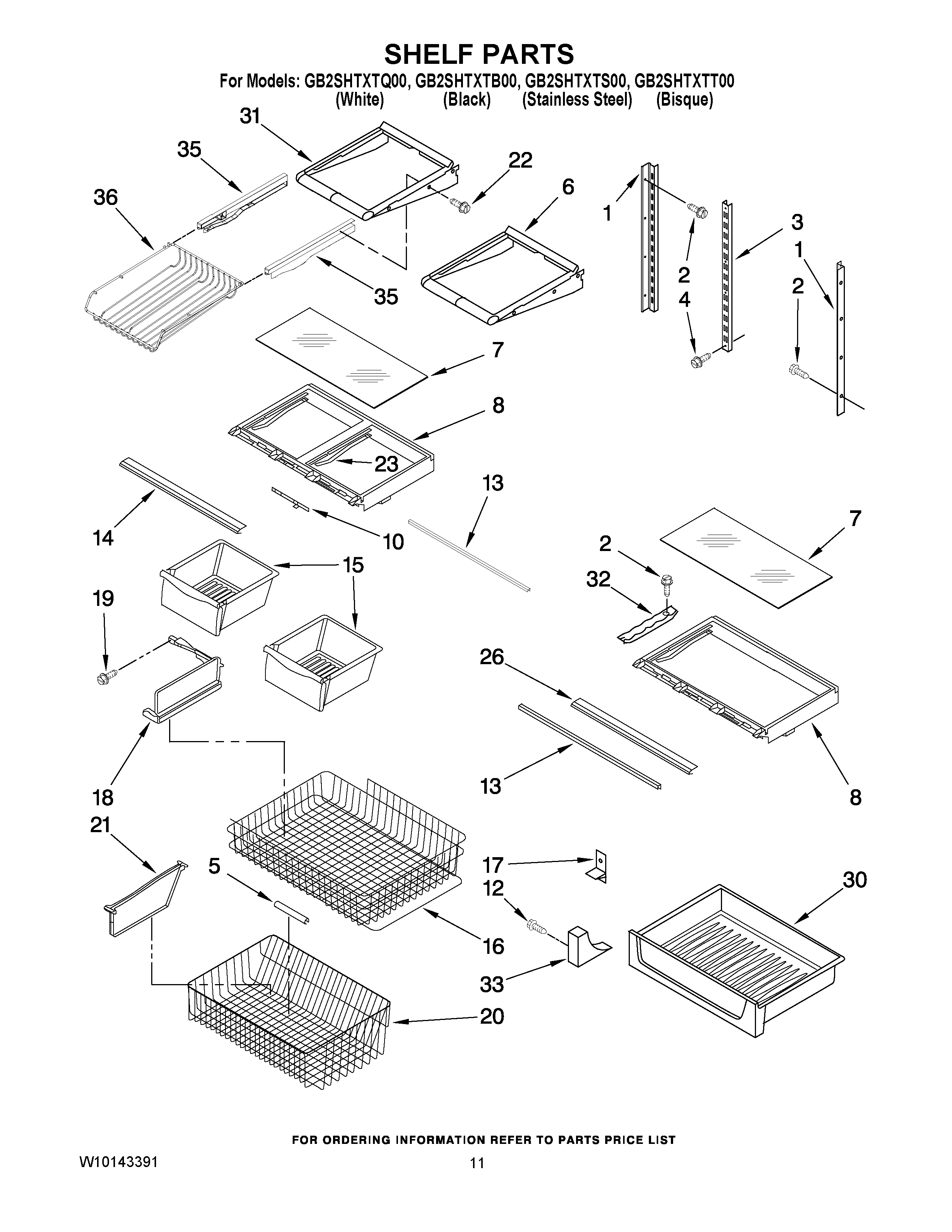

GB2SHTXTT00 06 – SHELF PARTS

Products

Position	Product
1	Ladder, Side
3	67001073 Whirlpool Refrigerator Center Ladder
4	W10709795 Whirlpool Refrigerator Screw
5	Handle
6	Shelf, Glide (3)
7	WP67006878 Whirlpool Refrigerator Crisper Glass
8	WPW10568041 Whirlpool Refrigerator Crisper Shelf Drawer Cover
10	SLIDE
12	67006425 Whirlpool Refrigerator Screw
13	WP12227303WD Whirlpool Refrigerator Crisper Brace
14	WPW10231482 Whirlpool Refrigerator Shelf Trim
15	WP67002633 Whirlpool Crisper Pan
16	Shelf, Freezer
17	WP67001716 Whirlpool Refrigerator Shelf Support Clip Ladder Hook
18	Divider, Upper Basket
19	Screw
20	Basket, Freezer (Lower)
21	Divider, Lower Basket
22	SCREW
23	RAIL-CENTR CRISPER
26	W10656986 Whirlpool Refrigerator Shelf Trim
30	W10328327 Whirlpool Refrigerator Snack Pan
31	W11402523 Whirlpool Refrigerator Glass Shelf
32	WP67001719 Whirlpool Refrigerator Track
33	WP67001721 Whirlpool Refrigerator Support
33	WP67001722 Whirlpool Refrigerator Support
35	WP67001054 Whirlpool Left Glide
35	WP67001053 Whirlpool Drawer Glide
36	Rack, Can
