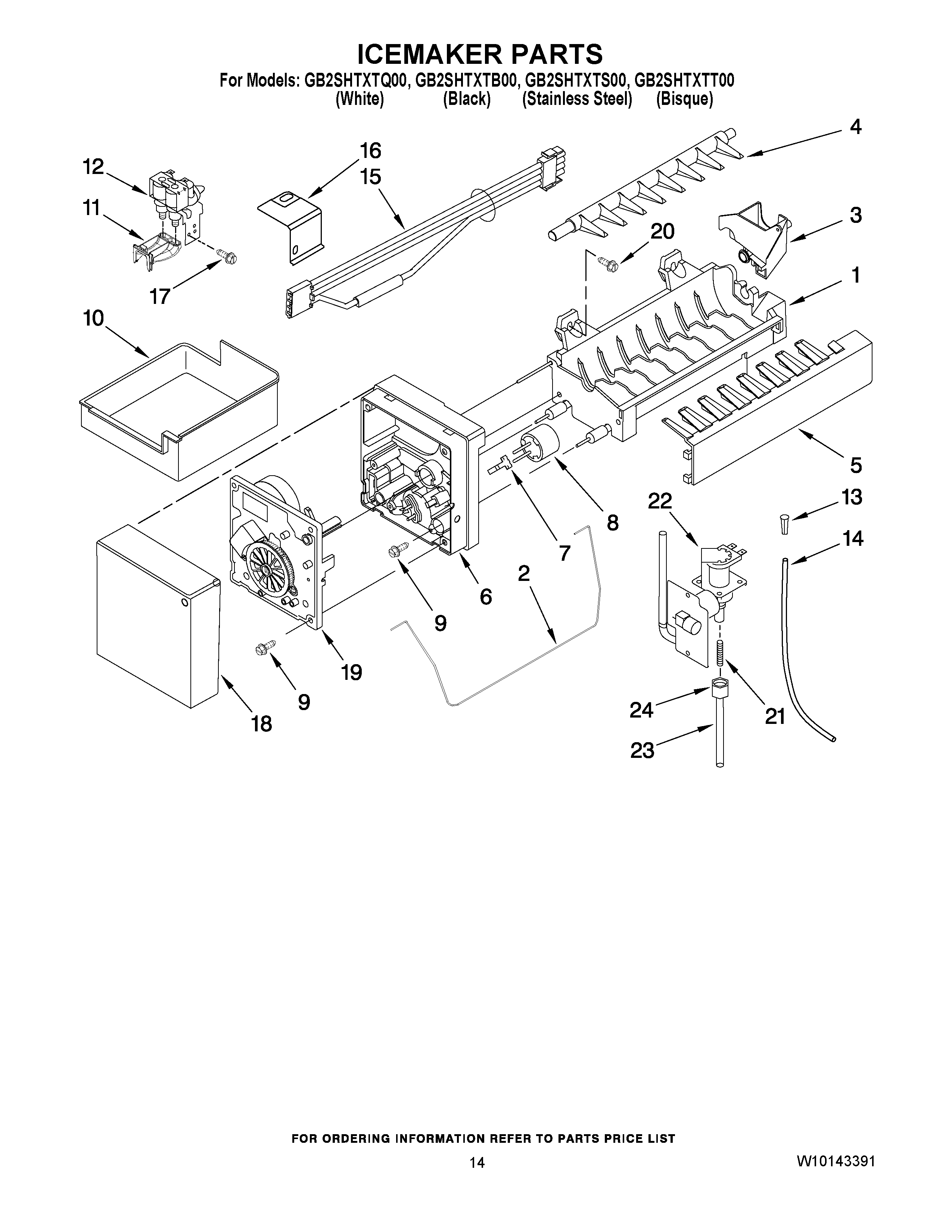

GB2SHTXTT00 08 – ICEMAKER PARTS

Products

PositionProduct
1MOLD & HEATER (NOT AVAILABLE, ORDER D7824706Q)
2ARM-SHUT
3Inlet, Water
4Ejector
5Ice Stripper
6Support & Motor Assembly
7Retainer, Thermostat
8Thermostat (Not Available Order D7824706Q)
9Screw, (2) 10-32 x 49/64
10WP67001255 Whirlpool Ice Bucket
1112831101 Whirlpool Refrigerator Tube Clamp
12WP67006531 Whirlpool Water Inlet Valve
13WPA3223101 Whirlpool Refrigerator Insert PL
14WPB5705307 Whirlpool Refrigerator Tube
15WPD7813010 Whirlpool Refrigerator Wire Harness
16Control, Temperature
17WP489128 Whirlpool Refrigerator Screw
18WPW10289690 Whirlpool Ice Maker Cover
19Module Assembly (Not Available Order D7824706Q)
20WP98165 Whirlpool Screw
21SPRING
22WP67003753 Whirlpool Refrigerator Inlet Valve
23W10823511 Whirlpool Refrigerator Water Tube
24WP627018 Whirlpool Refrigerator Nut
100D7824706Q Whirlpool Refrigerator Ice Maker Assembly
